Description
The Festool TS 55 FEQ Plunge Cut Track Saw is a precision saw capable of producing high-quality cuts rivalling the most advanced stationary mitre saws or sliding table saws, but in a compact and highly-portable package.
The concentrated torque put out by the saw, combined with the latest generation of saw blades, allows you to cut twice as fast while achieving the same cut quality. Get one today and never look back.

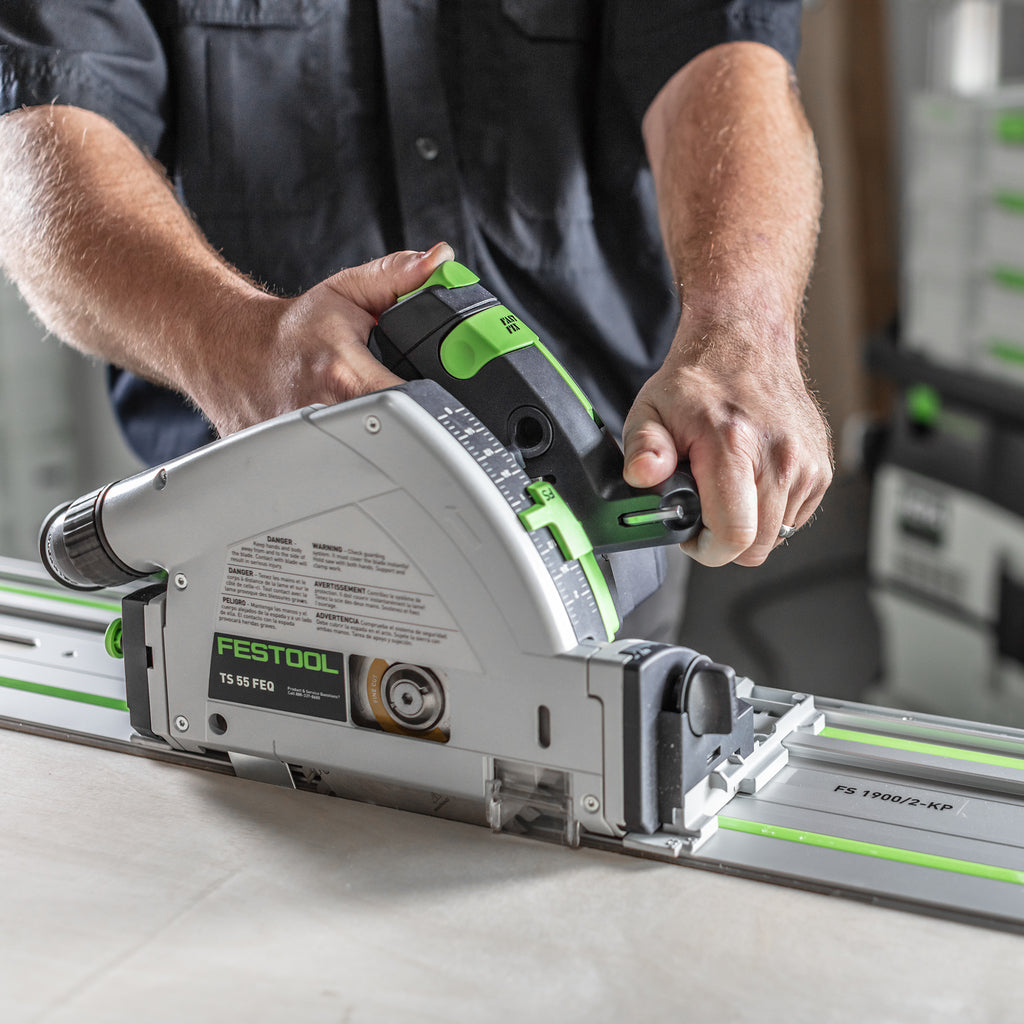

Create clean, straight cuts with a Festool guide rail with ease
When used on a Festool guide rail (not included), the saw slides smoothly along the length of the cut and a straight cut is automatic. Three high-quality motor bearings ensure a smoother cut and longer tool life.
Make clean, splinter-free cuts every time
Festool guide rails feature a splinterguard on the bottom which serves as a zero-clearance support to ensure a splinter-free top surface. A second splinterguard can be fitted onto the TS 55 REQ housing to ensure splinter-free cuts on the offcut as well. Both splinterguards work for both square and bevel cuts.
Retractable riving knife reduces the chance of kickback
A riving knife is located right behind the blade to ensure that the material does not pinch the blade, reducing the chance of kickback. The splitter is spring-loaded so that the saw can be plunged into a panel and automatically drops down into the kerf when the saw is advanced.
Superb dust collection
Make cuts without making a mess. Capture dust at the source by hooking up the TS 55 REQ to a wire-framed dust bag or dust extractor (neither included). The rotating dust port allows the hose to be positioned out of the way, or dust to be ejected away from the user.
MMC Electronics enhance safety and control
The tool starts up smoothly, eliminating jolting and voltage spikes. Adjust the speed infinitely within the speed range to suit the material and application, and know that the pre-selected speed will remain constant even when load is applied. Built-in temperature control prevents overheating by switching the tool off when critical temperature is reached in order to prolong its lifespan.

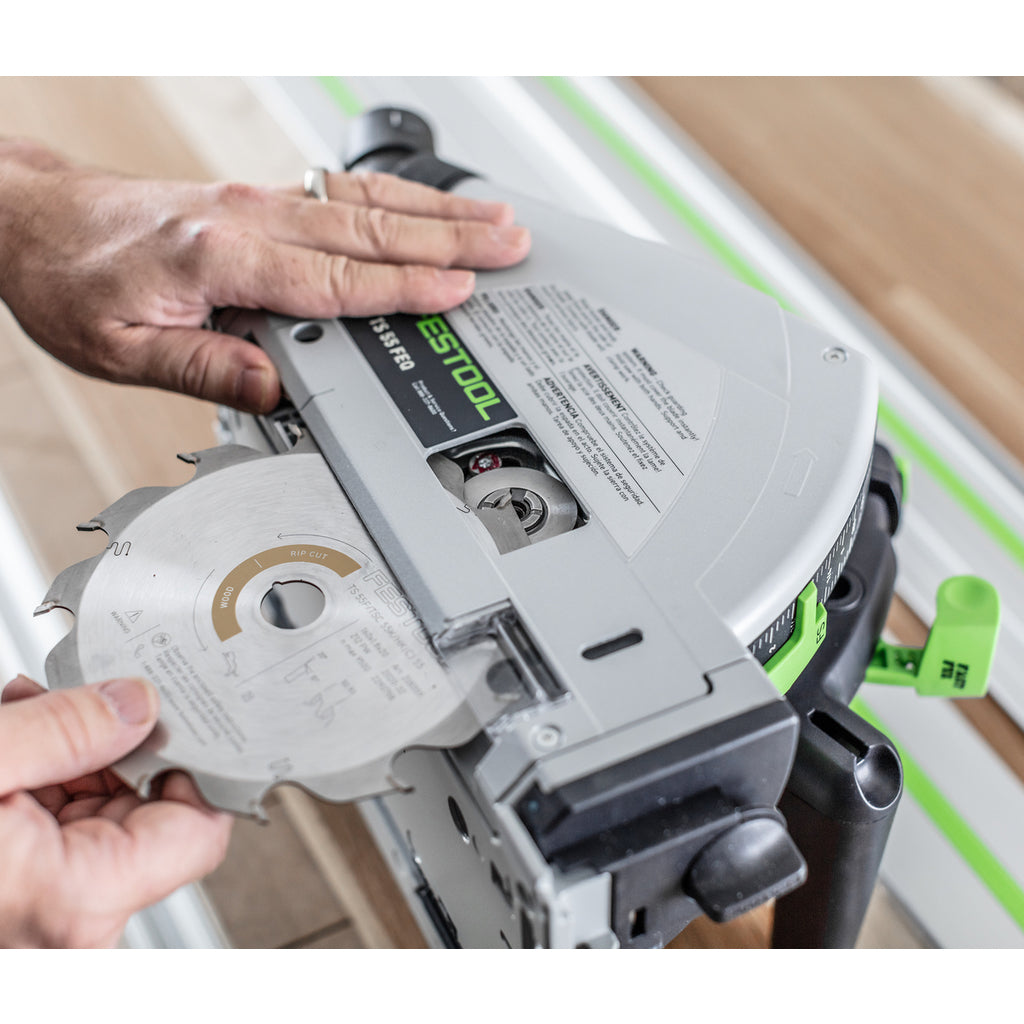

Fast and easy blade changes
To change the blade on the TS 55 REQ, first rotate the FastFix lever to the forward position. This locks out the switch, locks the arbor, and allows the blade to be lowered to where the arbor bolt is accessible. The saw locks down in this position and the on-board hex key can be used to remove the arbor bolt.

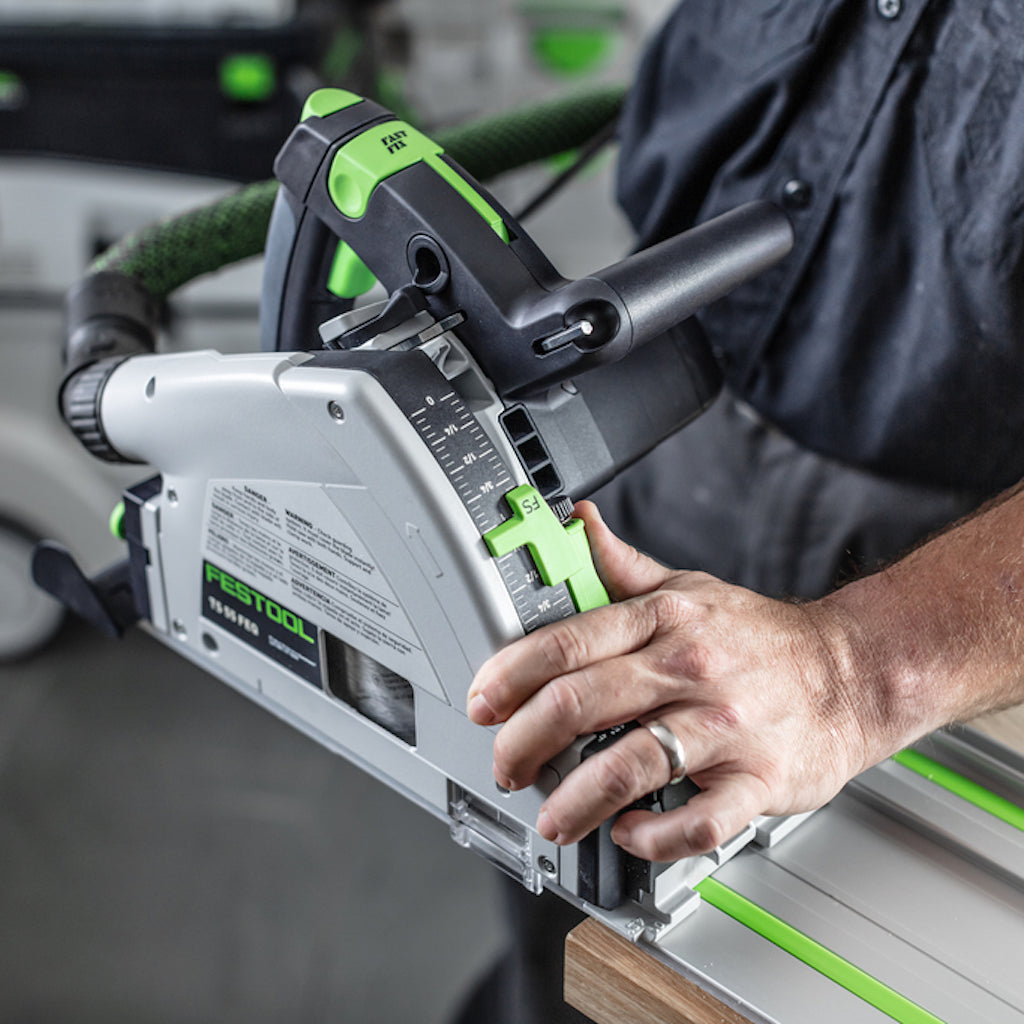

Fast and simple micro-adjustable plunge depth
Squeeze and slide the depth stop to the desired depth of cut. A split depth scale indicates depth of cut on and off a Festool guide rail. Turn the fine-adjust knob to micro-adjust the cut depth.
Portable and transportable
The track saw and many of its accessories store away neatly in a compact and durable Systainer with custom-moulded insert (included). This makes it easy to ensure no parts are left behind or lost.
Expand the capabilities of the TS 55 REQ with accessories
Ripping a stack of gables to the same width, crosscutting shelves square, cutting stair tread to 15 degrees, and more are all simplified with optional accessories.
Specifications
- 4.5 kilograms (9.92 pounds)
- 160 millimetre (6-1/4 inch) blade with 20 millimetre arbor hole
- 0 to 55 millimetre (0 to 2-1/8 inch) cutting depth at 90 degrees
- 0 to 43 millimetre (0 to 1-11/16 inch) cutting depth at 45 degrees
- 1200 watt motor
- 27/36 millimetre (1-1/16/1-7/16 inch) inside/outside diameter dust extraction port
- -1 to 47 degree bevel range with stops at 0 and 45 degrees
Scope of delivery
- TS 55 FEQ-Plus Plunge Cut Track Saw
- SYS3 M 337 Systainer with organizational insert
- 42-tooth ATB fine saw blade
- 5 millimetre hex key
- Clear sight window
- Splinterguard with locking knob
- Plug-It detachable power cable
- 30-Day Money Back Guarantee
- 3-Year Festool Service All-Inclusive Limited Warranty
This product replaces 575387 TS 55 REQ-F-Plus
