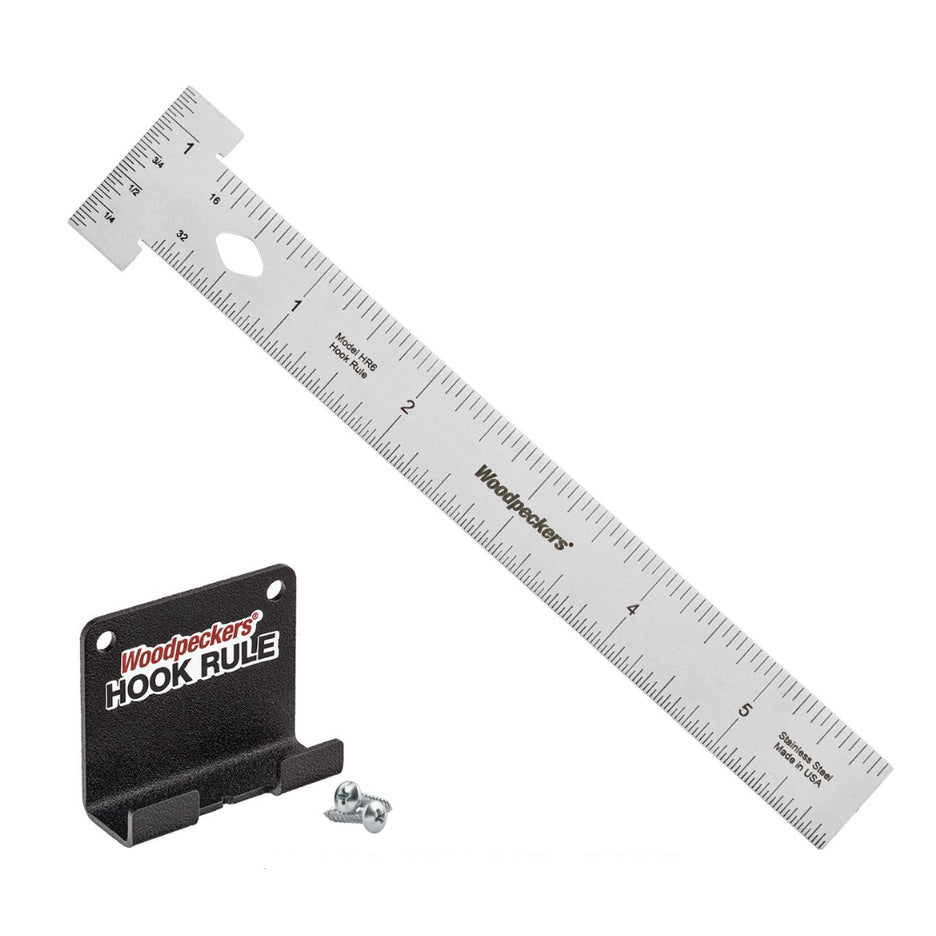

Woodpeckers Hook Rule 6 inch with Rack-it

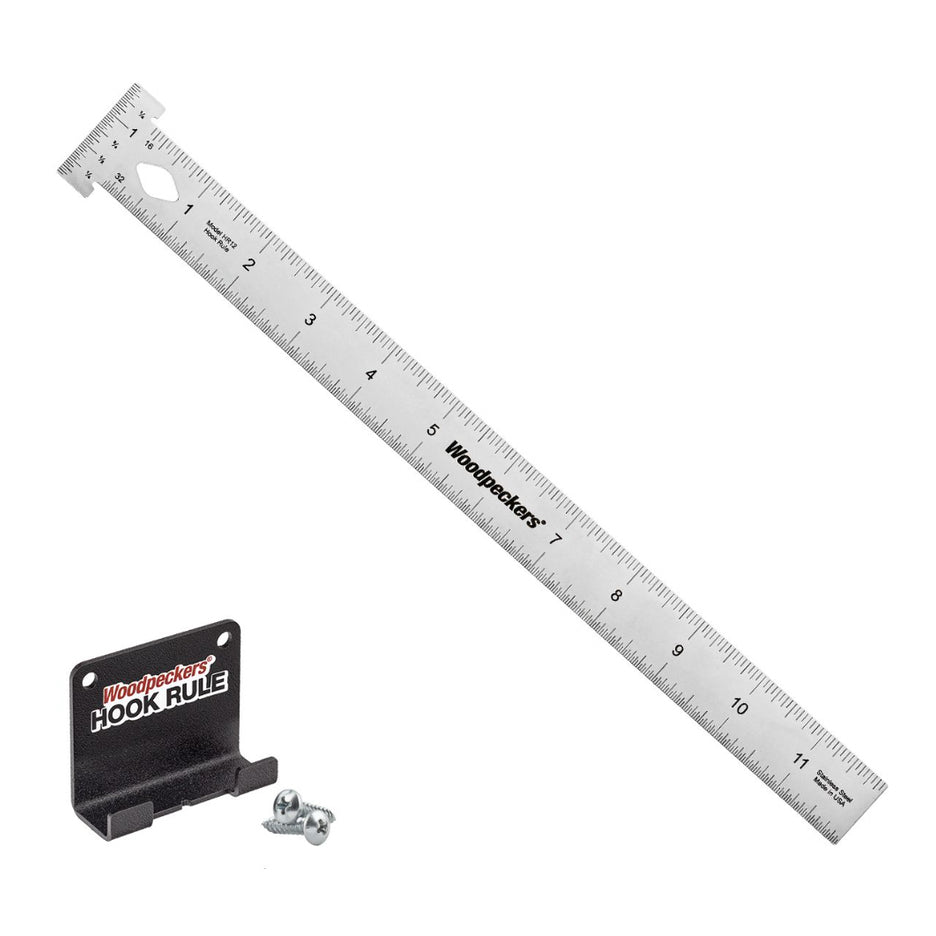

Woodpeckers Hook Rule 12 inch with Rack-it

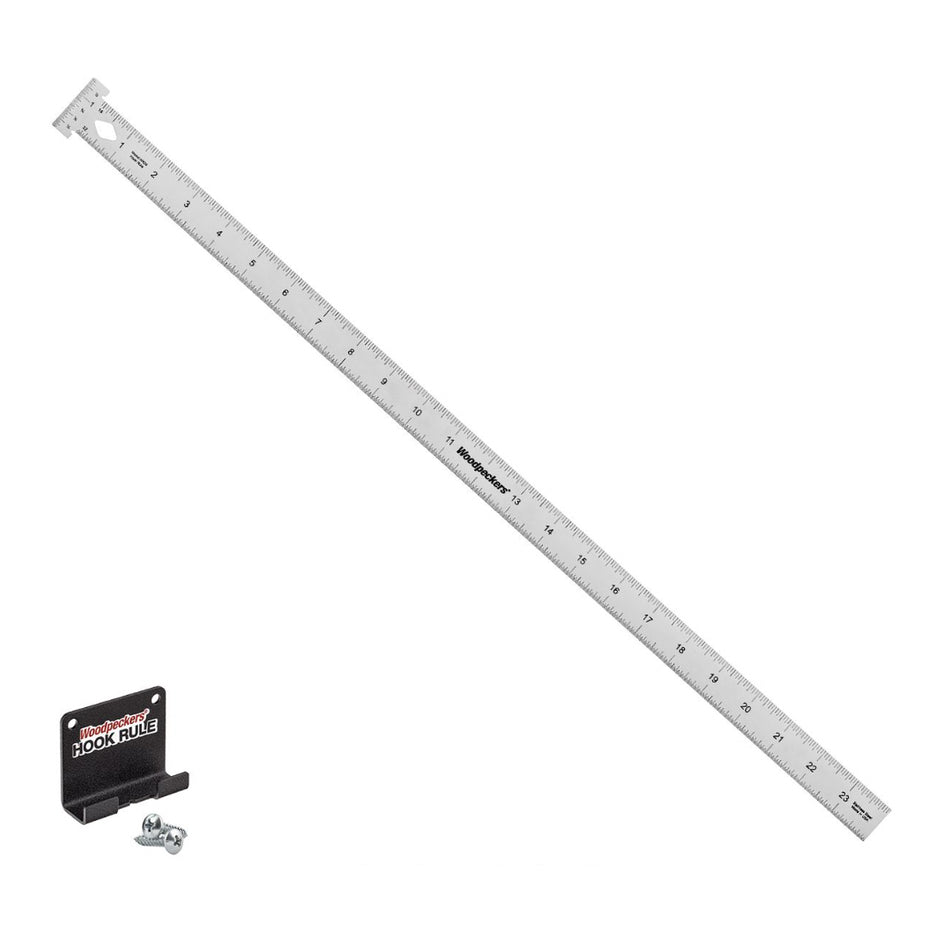

Woodpeckers Hook Rule 24 inch with Rack-it

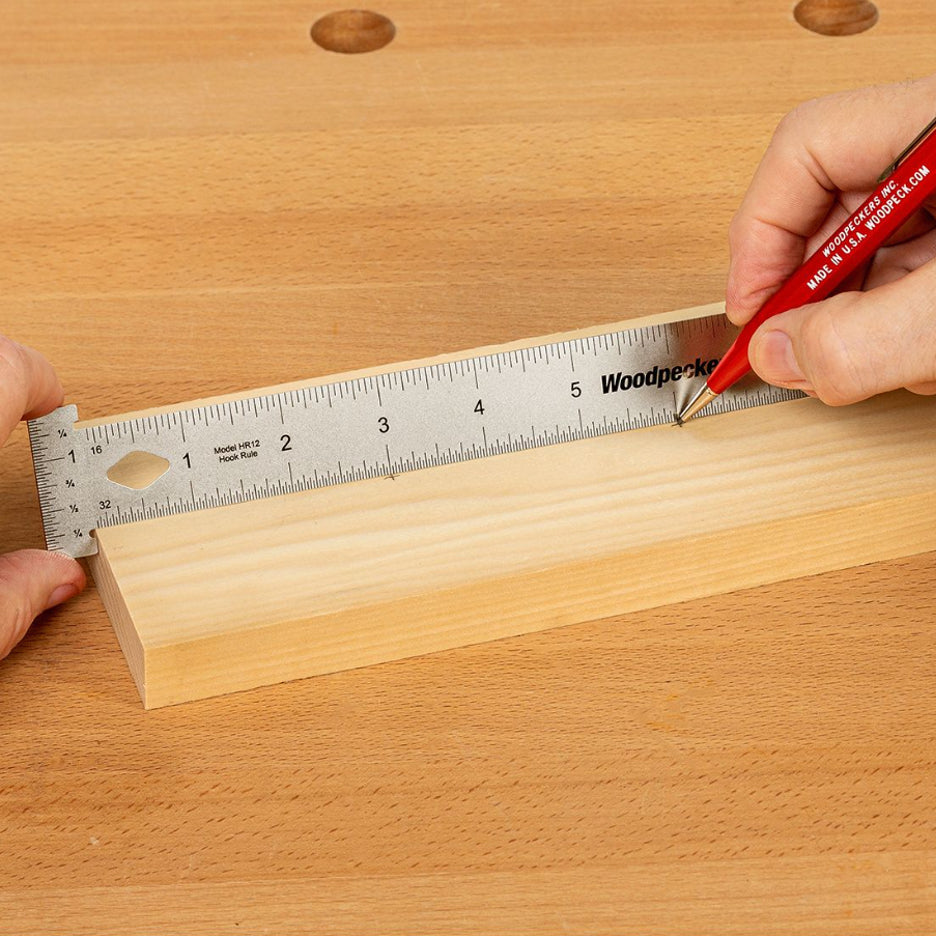

Woodpeckers Hook Rule set against end of wood board and distance marked with pencil.

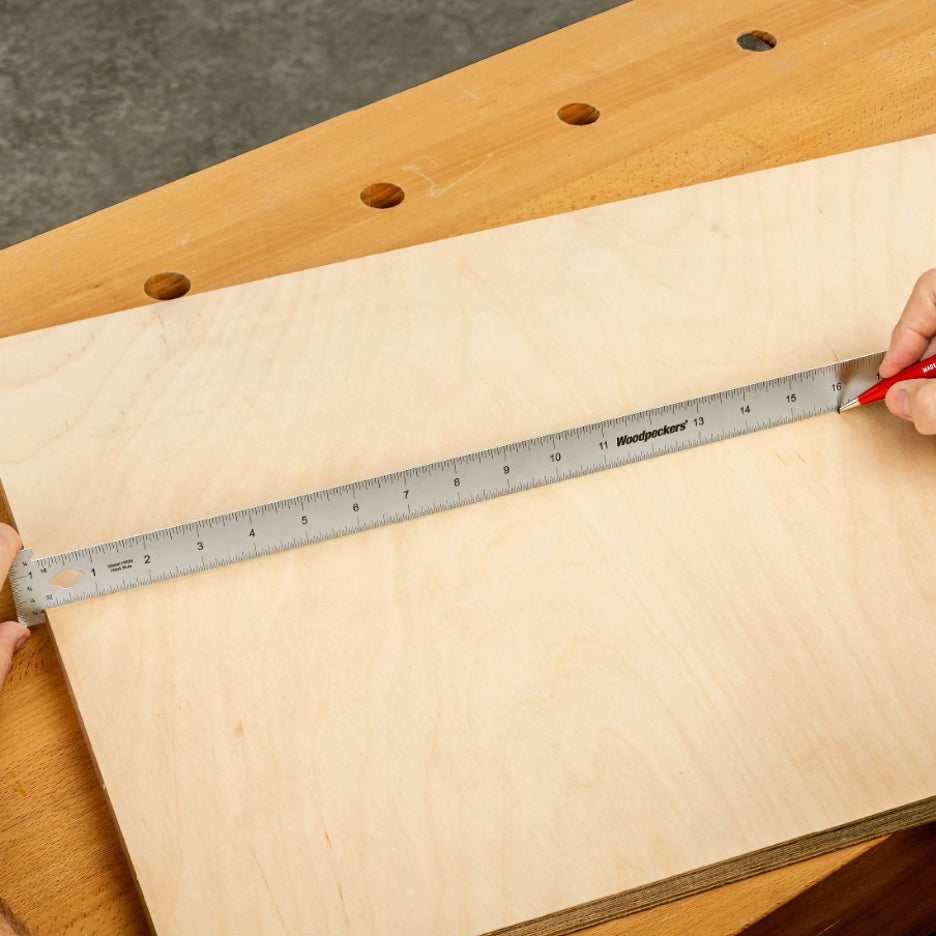

Woodpeckers 24 inch Hook Rule is ideal for larger projects, including those with sheet goods.

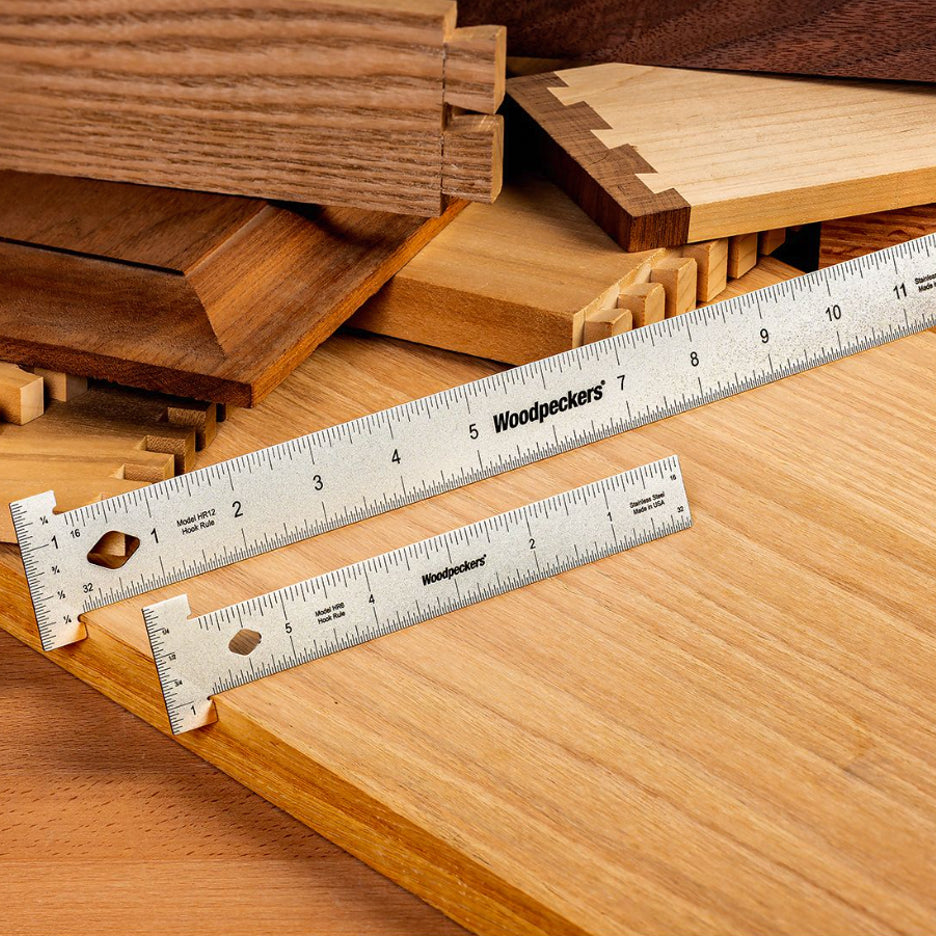

Two Woodpeckers Hook Rules showing front and back left-to-right and right-to-left scales.

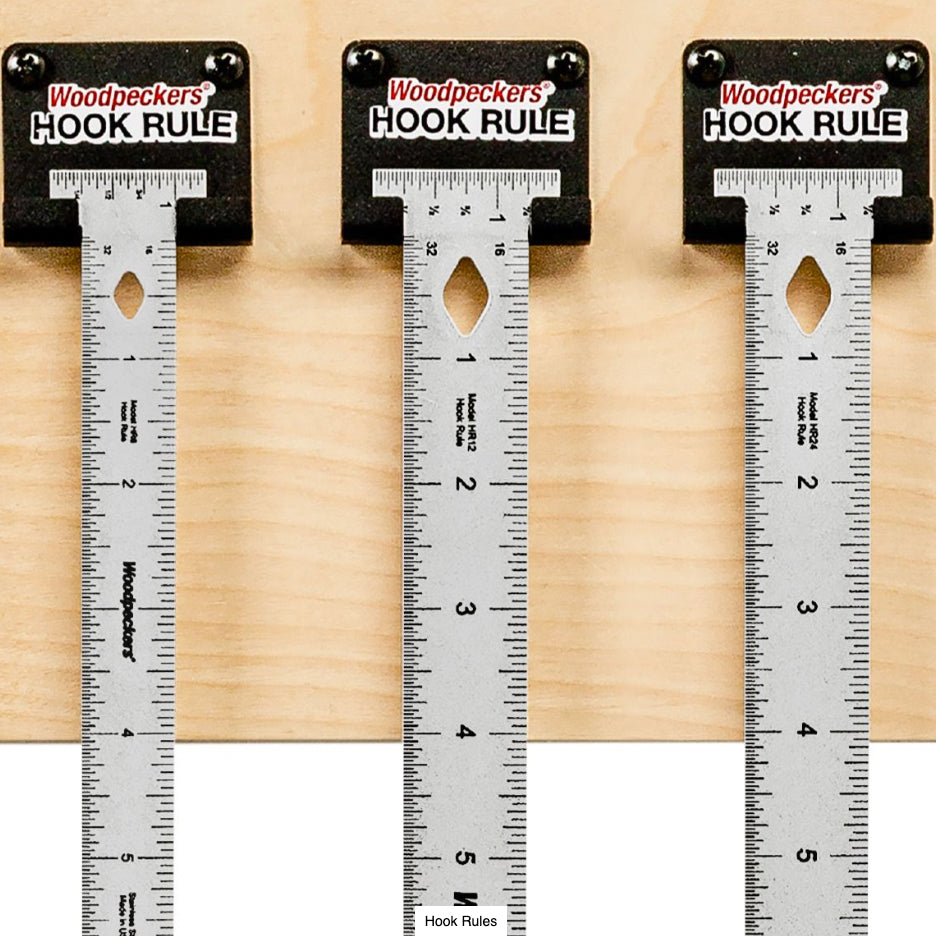

Woodpeckers 6, 12, 24 inch Hook Rules on wall-mount Rack-its
Woodpeckers 24 inch hook rule with right to left scale used to set table saw fence for rip cut.

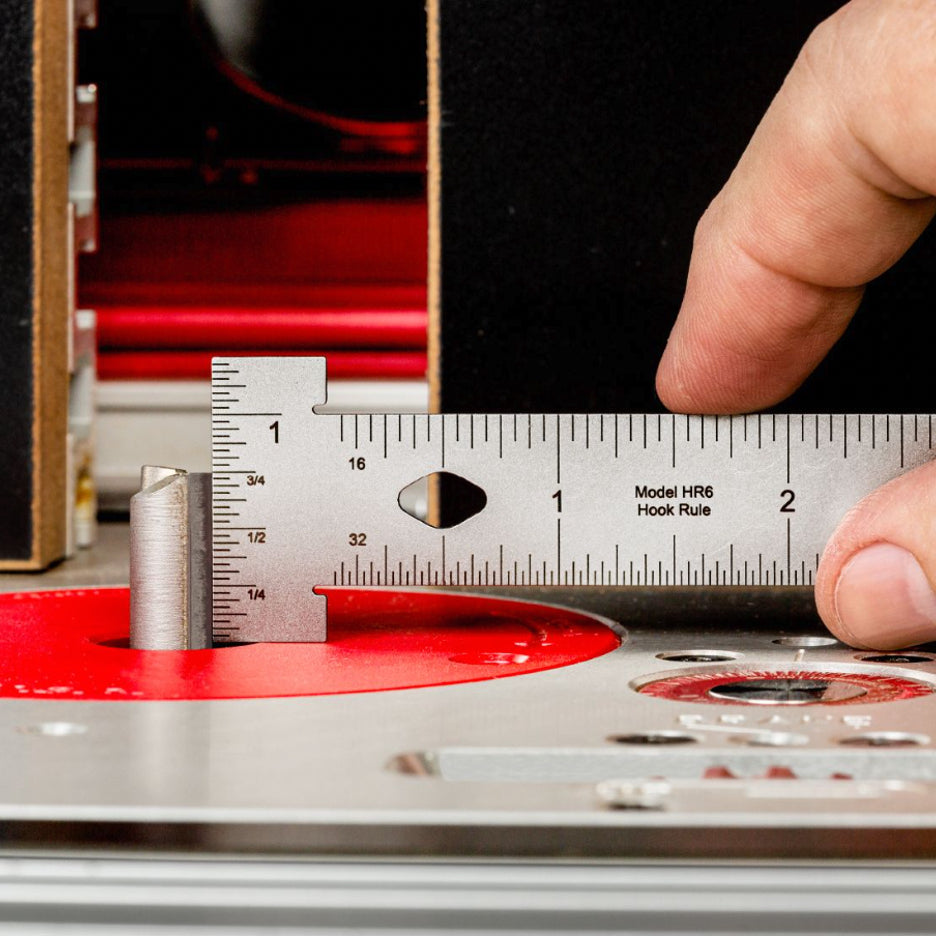

Woodpeckers Hook Rules end scale used to set router bit height at router table.
Woodpeckers Hook Rules have an end scale ideal for setting heights at drill press.

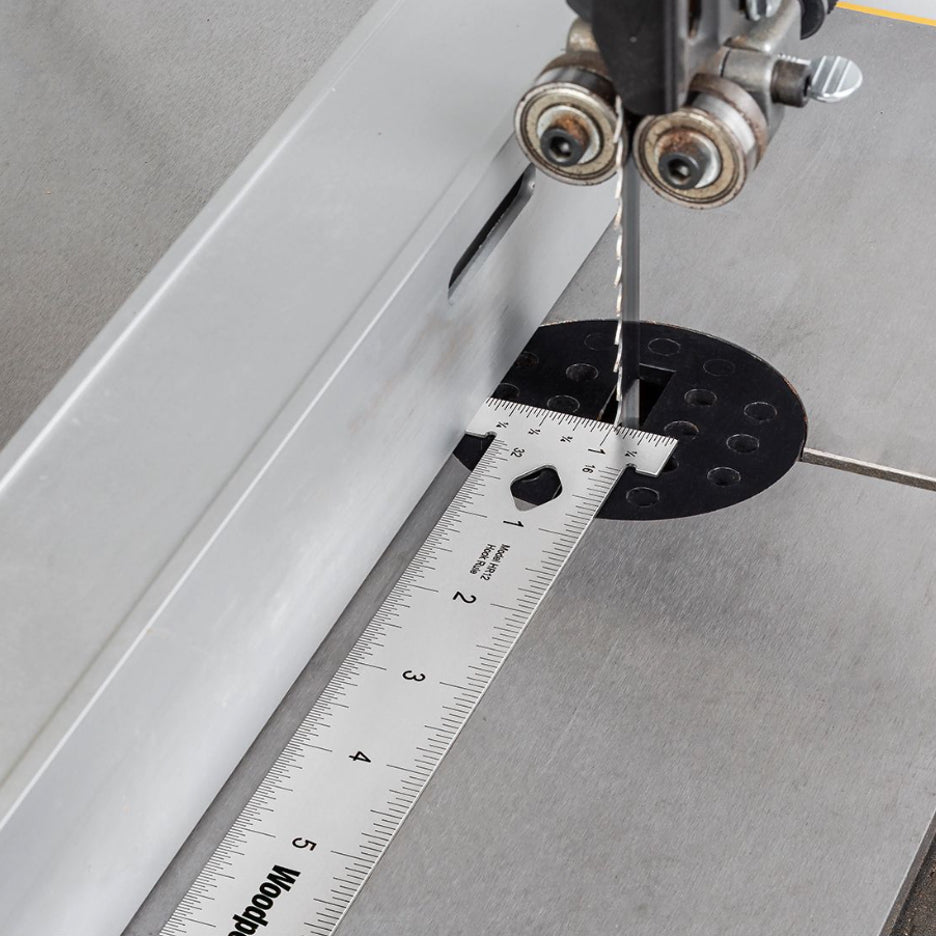

Woodpeckers Hook Rules have end scale useful for setting bandsaw blade fence.
Roll over image to zoom in Click on image to zoom
Woodpeckers Hook Rule 6 inch with Rack-itWoodpeckers Hook Rule 12 inch with Rack-itWoodpeckers Hook Rule 24 inch with Rack-itWoodpeckers Hook Rule set against end of wood board and distance marked with pencil.Woodpeckers 24 inch Hook Rule is ideal for larger projects, including those with sheet goods.Two Woodpeckers Hook Rules showing front and back left-to-right and right-to-left scales.Woodpeckers 6, 12, 24 inch Hook Rules on wall-mount Rack-itsWoodpeckers 24 inch hook rule with right to left scale used to set table saw fence for rip cut.Woodpeckers Hook Rules end scale used to set router bit height at router table.Woodpeckers Hook Rules have an end scale ideal for setting heights at drill press.Woodpeckers Hook Rules have end scale useful for setting bandsaw blade fence.

Woodpeckers Hook Rules HR*****

WoodpeckersSKU: WP-HR06-20
Price:
$30.00

Description

Hook rules provide positive registration for precise measurements of inside or outside dimensions every time

Woodpeckers Hook Rules are the ideal tool for precise measuring inside and outside dimensions up to 24 inches. The laser-cut rules have a hook at one end for outside measurements that reliably register off the edge of material, even over profiled edges less than 1/4 inch deep. For inside measurements, flip the rule over and butt the opposite end against the adjacent surface.

Woodpeckers hook rules are 1/32 inch thick with satin finish

The thin stainless steel blades reduce parallax for better accuracy when marking, and the no-glare satin finish makes reading the scale easy in any lighting conditions.

1/16 and 1/32 inch scale right to left on one side of the hook rules, left to right on the other, and end scale

The top scale is graduated in 1/16ths of an inch, and the bottom in 1/32nds. The scale reads from left to right from the hook end on one side, and right to left on the other side for inside measurements. A bonus scale at the end of the rule is handy for setting blade and bit depths. Each scale is laser engraved to a tolerance of +/- 0.004 inches total accumulated error.

Wall-mount Rack-it

The included Rack-it mounts to the wall to keep the Hook Rules safe, yet easily accessible.

Woodpeckers Hook Rule scope of delivery

  • Your choice of Hook Rule
  • Wall-mountable Rack-it
