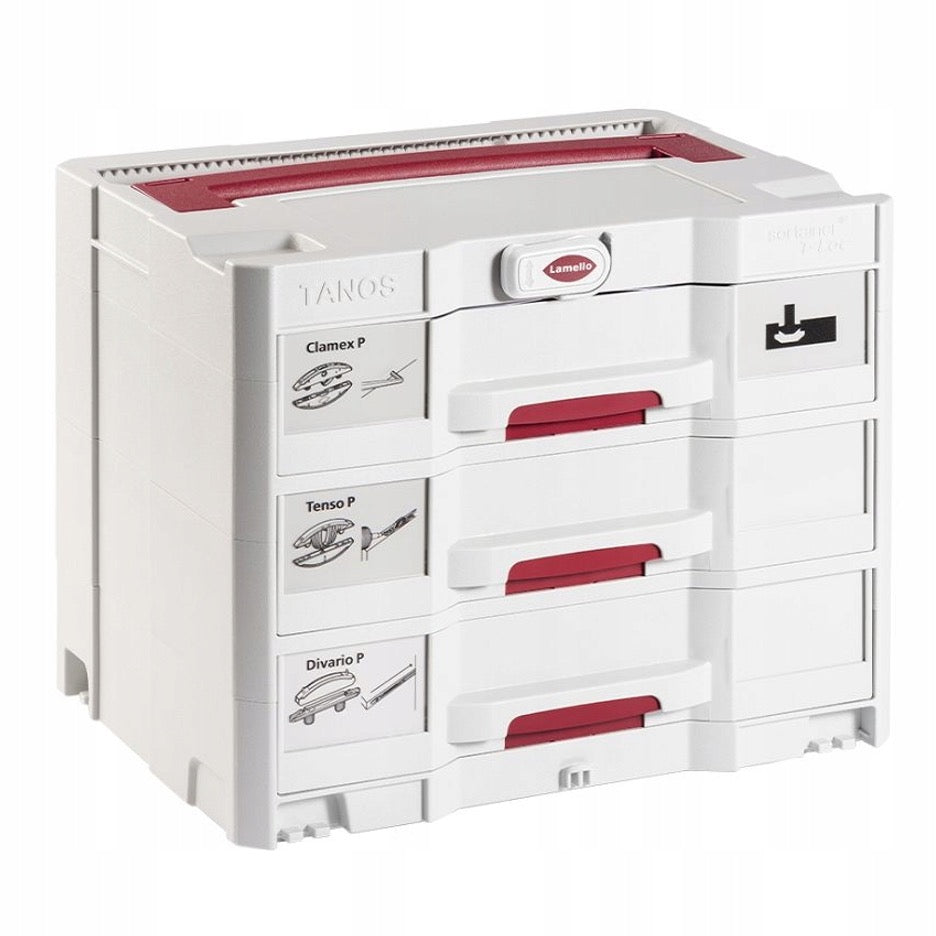

Packed in a 3-drawer Systainer, this range of connectors is neatly organized and easy to transport. Contains a variety of some of the most popular Lamello connectors to get you started with the system.
Clamex P-14
Lamello's Clamex P-14 is a detachable connecting hardware based on P-system anchorage and is connected with a lever. The positive-locking P-system anchoring allows a fast and strong installation of the hardware in the workpiece without tools. Clamex P connectors do no require glue or screws.
The small 6 mm access holes for the hex wrench set the Clamex P knock down connectors above the competition.
Clamex P Medius
Lamello's Clamex P Medius complements the Clamex P-14 connecting fittings for use in shelf units where two shelves meet the dividing panel at the same height.
The dividing panel connection Clamex P Medius consists of two parts with different installation depths. The lever part is installed in the shelf, anchored in a 14 mm deep P-System groove. Thanks to its installation depth of just 10 mm and crescent-shaped cut out, the second part can be fitted back-to-back in a dividing panel measuring just 16 mm in thickness.
The form-locking P-System anchorage enables secure installation in the work piece without the need for tools in just seconds. Clamex P does not require glue or screws, so offers numerous benefits in the manufacturing process while also distinguishing itself from standard connecting hardware.
Clamex P-10
Lamello's Clamex P-10 is a detachable connecting hardware based on P-system anchorage and is connected with a lever. The positive-locking P-system anchoring allows a fast and strong installation of the hardware in the workpiece without tools. Clamex P connectors do no require glue or screws.
The small 6 mm access holes for the hex wrench set the Clamex P knock down connectors above the competition.
Compared to the Clamex P-14, Clamex P-10 has a lower installation depth of only 10 mm and can therefore be used for thinner materials. The design of the connector has been further perfected, the two additional pockets provide optimum stability for the connector.
Tenso P-10 and P-14 with Preload Clips
The two-part, hidden mounted connector creates the condition for the realization of a completely new connection process in the interior design. This involves a new connection method that an unprecedented flexibility, speed and simplicity in the entire design, production, transportation and assembly process allows. Although the connector has excellent tensile strength, this version is intended as a gluing aid.
The Tenso P-14 can be installed in any wood materials 15 millimetres or thicker, and the smaller P-10 can be used for butt joints in materials as thin as 12 millimetres, and mitres in materials as thin as 15 millimetres
Bisco P-14
The Lamello Bisco P is a plastic element and part of the P-System range of connecting fittings. The aligning element fits into the 7 mm wide P-System groove but is not form-locking like Clamex P. Instead, it is anchored in the groove due to its surface structure and can also be used as a fixed connection with PVA glue.
Bisco P-14 is used in combination with Clamex P-14 as a cost-effective solution when clamping force is only required from every second fitting and the use of more affordable aligning elements in between to maintain flush grooves is sufficient as an alternative.
Bisco P-10
The Lamello Bisco P is a plastic element and part of the P-System range of connecting fittings. The aligning element fits into the 7 mm wide P-System groove but is not form-locking like Clamex P. Instead, it is anchored in the groove due to its surface structure and can also be used as a fixed connection with PVA glue.
Bisco P-10 is used in combination with Clamex P-10 as a cost-effective solution when clamping force is only required from every second fitting and the use of more affordable aligning elements in between to maintain flush grooves is sufficient as an alternative.
Divario P-18
With the Lamello Divario connectors, shelves or separation walls can be inserted into pre assembled structures. Additionally, the Divario P 18 also clamps the components during insertion, ensuring clean tight joints. The clamping action only occurs at certain points rather than across the entire length of joint, making the components easier to insert.
Due to the strong connection between the work pieces, the joint is able to carry high tensile forces. With this new fitting the user has greater flexibility in design without having to forgo stability.
Scope of delivery
- 120 pair Clamex P-14
- 30 pair Clamex P Medius
- 30 pair Clamex P-10
- 80 pair Tenso P-14 with preload clips
- 30 pair Tenso P-10 with preload clips
- 20 pieces Bisco P-14
- 20 pieces Bisco P-10
- 80 pair Divario P-18
- Divario installation tool, drill bit with depth gage, plastic marking jig
- Clamex P installation tool
- Sys-Sort/4 T-Loc Systainer
