Description
Contents:
- 80 pairs Clamex P-14
- 80 pairs Tenso P-14 with Preload Clips
- 60 pairs Clamex P Medius
- 20 pcs Bisco P-14

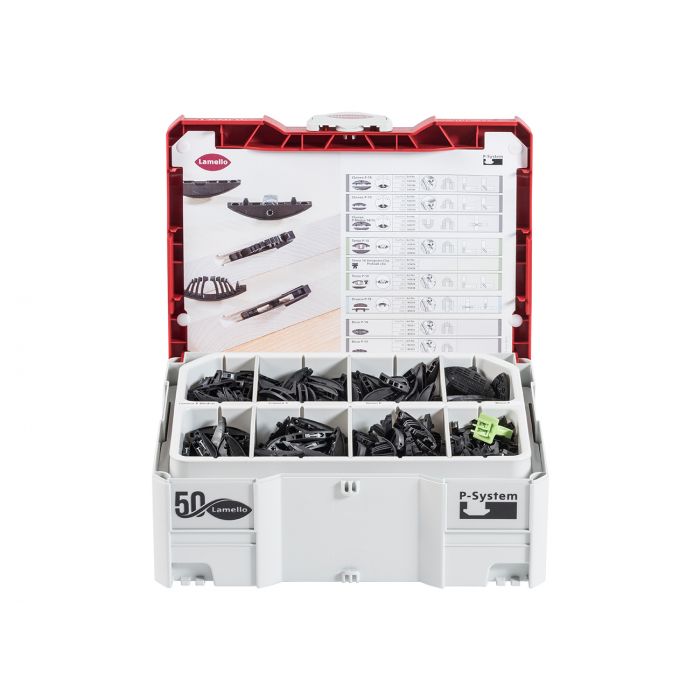

- Systainer T-Loc II with compartment dividers
Clamex P-14
Lamello's Clamex P-14 is a detachable connecting hardware based on P-system anchorage and is connected with a lever. The positive-locking P-system anchoring allows a fast and strong installation of the hardware in the workpiece without tools. Clamex P connectors do no require glue or screws.
The small 6 mm access holes for the hex wrench set the Clamex P knock down connectors above the competition.
Tenso P-14 with Preload Clip
The two-part, hidden mounted connector creates the condition for the realization of a completely new connection process in the interior design. This involves a new connection method that an unprecedented flexibility, speed and simplicity in the entire design, production, transportation and assembly process allows. Although the connector has excellent tensile strength, this version is intended as a gluing aid.
Lamello P-14 Preload Clips to reduce the amount of force required to connect workpieces, or to join miters and angled workpieces.
The Tenso P-14 can be installed in any wood materials 15 mm or thicker.
Clamex P Medius
Lamello's Clamex P Medius complements the Clamex P-14 connecting fittings for use in shelf units where two shelves meet the dividing panel at the same height.
The dividing panel connection Clamex P Medius consists of two parts with different installation depths. The lever part is installed in the shelf, anchored in a 14 mm deep P-System groove. Thanks to its installation depth of just 10 mm and crescent-shaped cut out, the second part can be fitted back-to-back in a dividing panel measuring just 16 mm in thickness.
The form-locking P-System anchorage enables secure installation in the work piece without the need for tools in just seconds. Clamex P does not require glue or screws, so offers numerous benefits in the manufacturing process while also distinguishing itself from standard connecting hardware.
Bisco P-14
The Lamello Bisco P is a plastic element and part of the P-System range of connecting fittings. The aligning element fits into the 7 mm wide P-System groove but is not form-locking like Clamex P. Instead, it is anchored in the groove due to its surface structure and can also be used as a fixed connection with PVA glue.
Bisco P-14 is used in combination with Clamex P-14 as a cost-effective solution when clamping force is only required from every second fitting and the use of more affordable aligning elements in between to maintain flush grooves is sufficient as an alternative.
