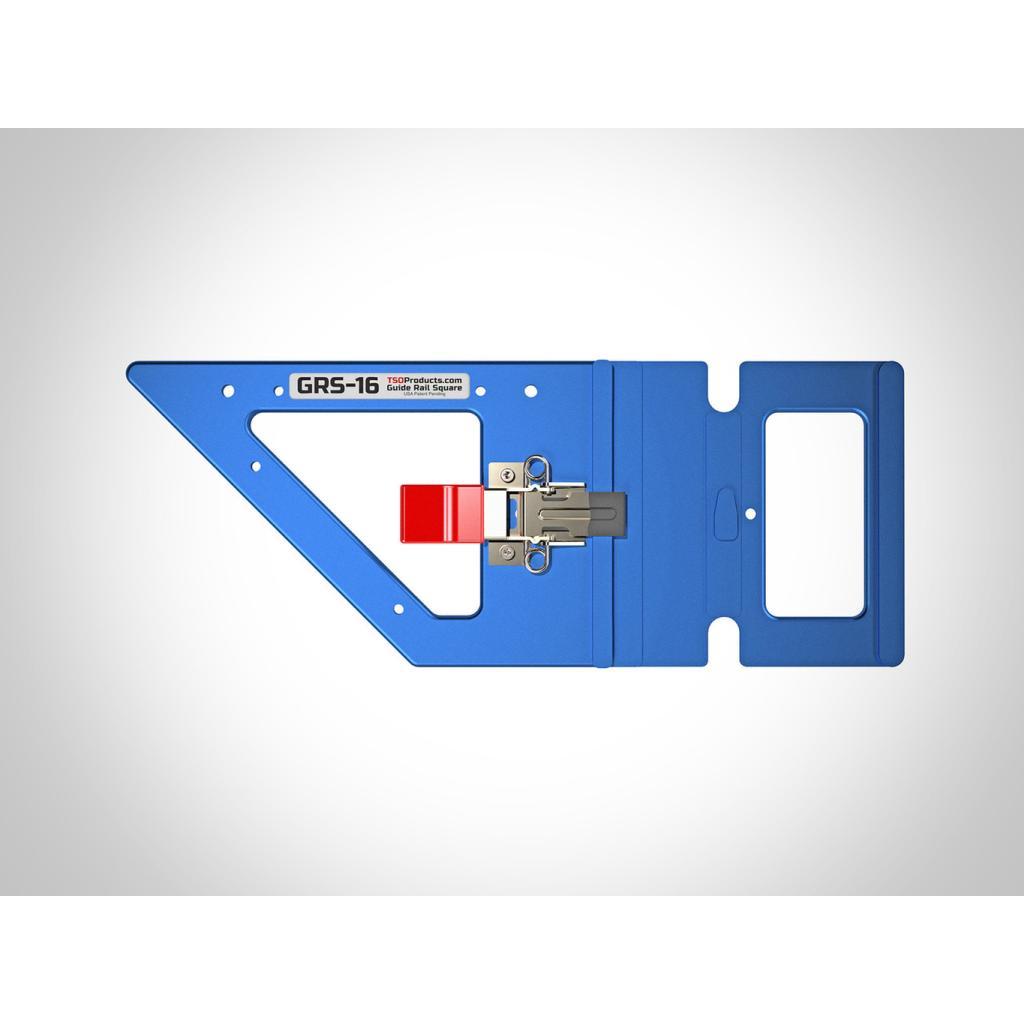

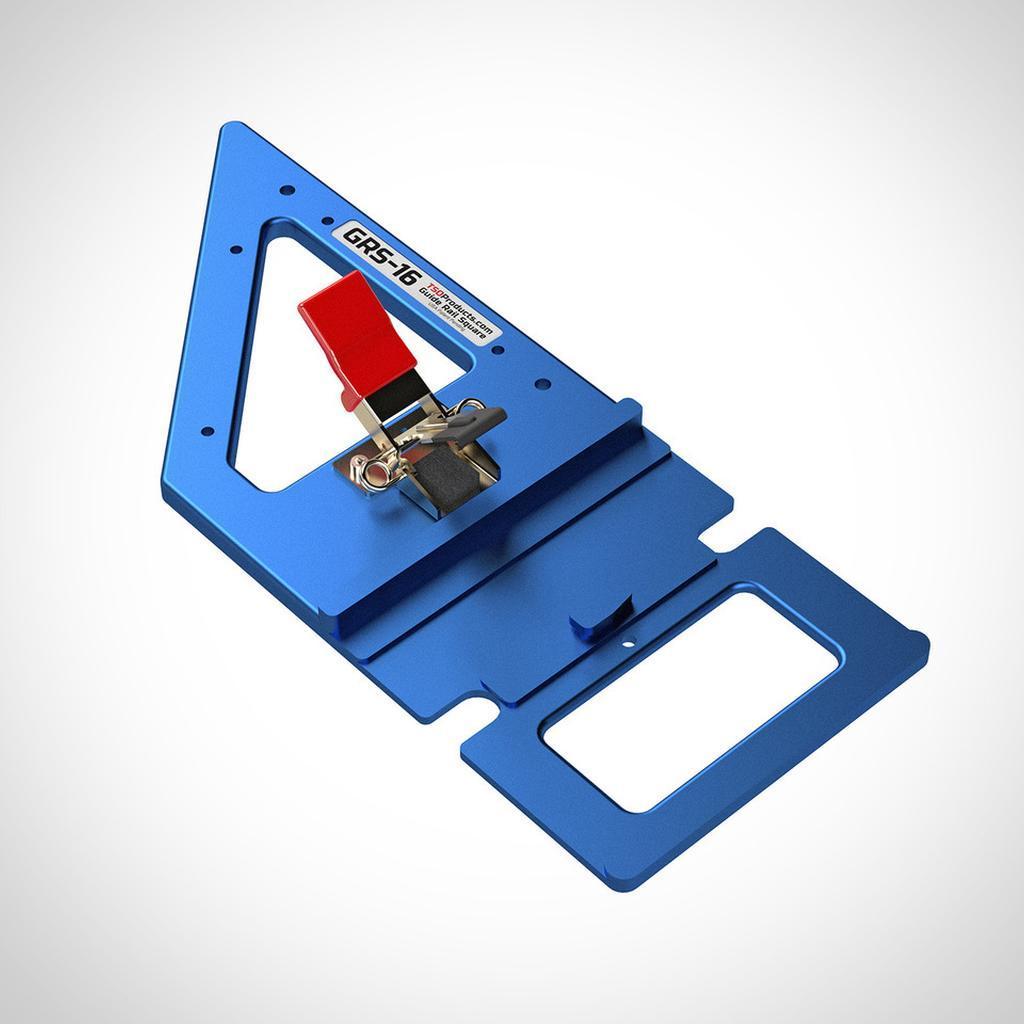

The GRS-16 square features a one-piece aluminum body with self-aligning features and accessory mount holes.
The GRS-16 square features a one-piece aluminum body with self-aligning features and accessory mount holes.

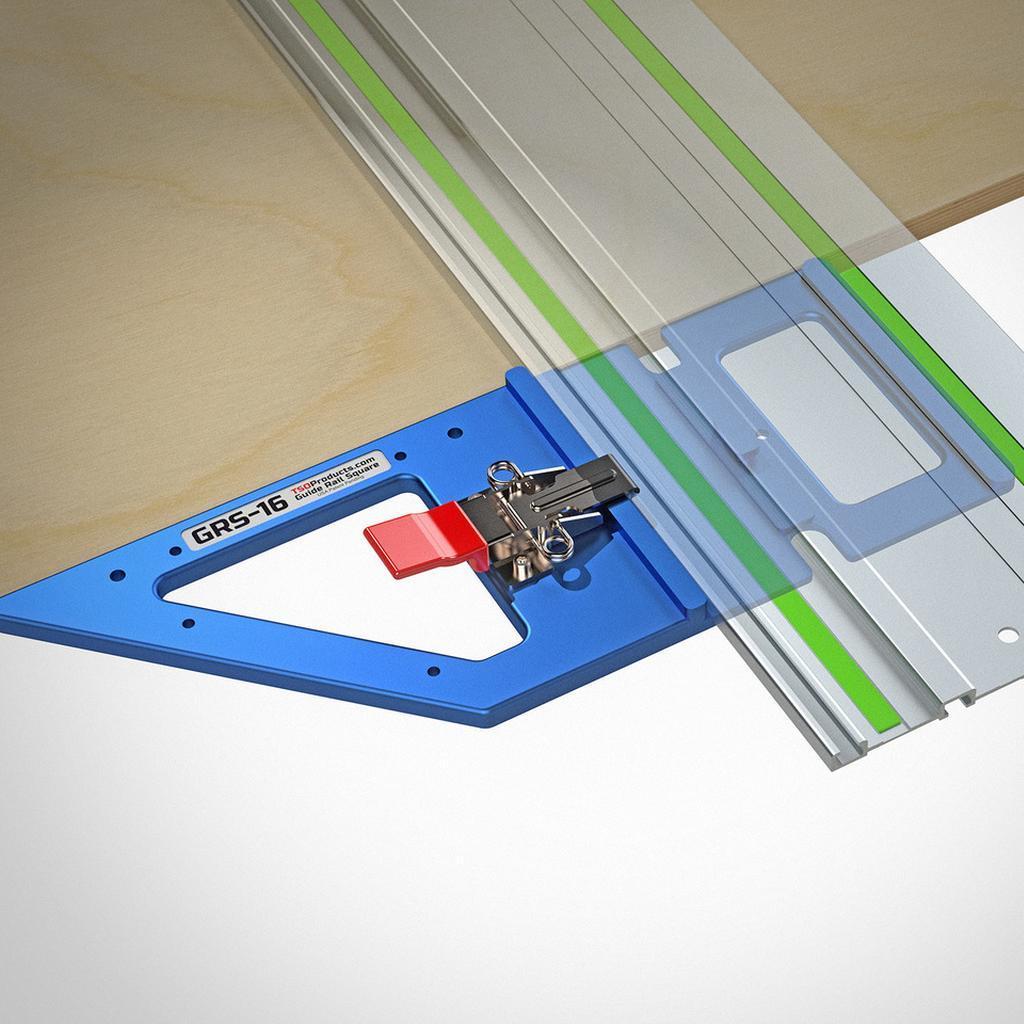

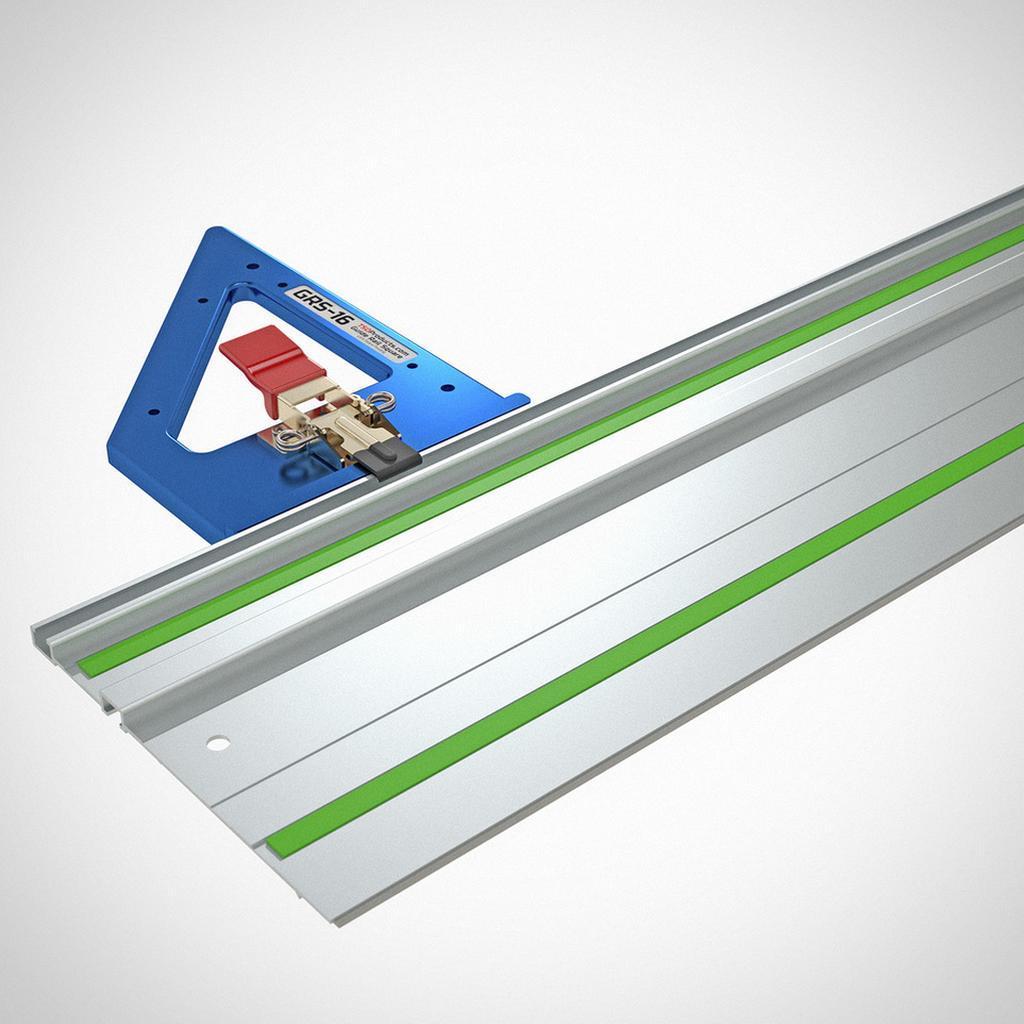

TSO Products GRS-16 attached to a Festool FS Guide Rail for crosscutting applications. The draw latch aligns the guide square

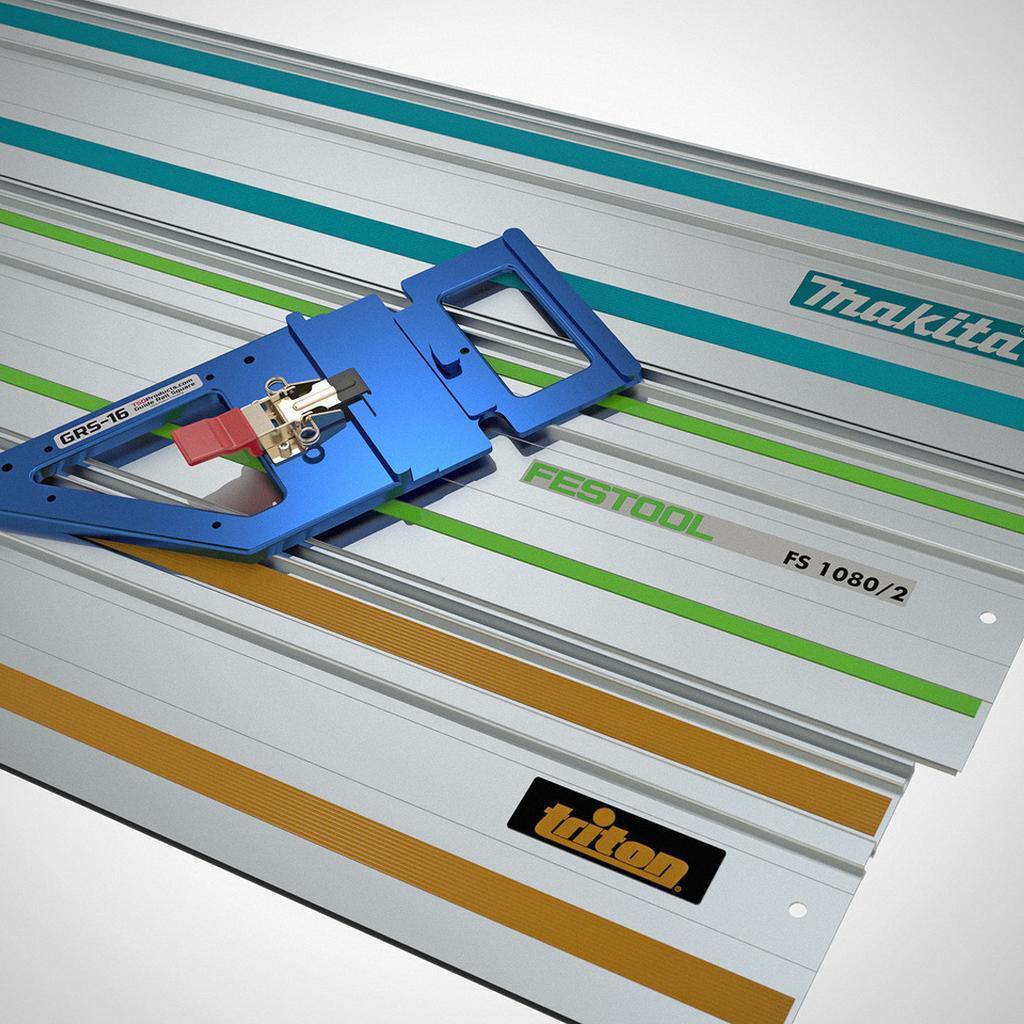

The GRS-16 Guide Rail Square sits on top of three compatible track saw guide rails by Triton, Festool and Makita.

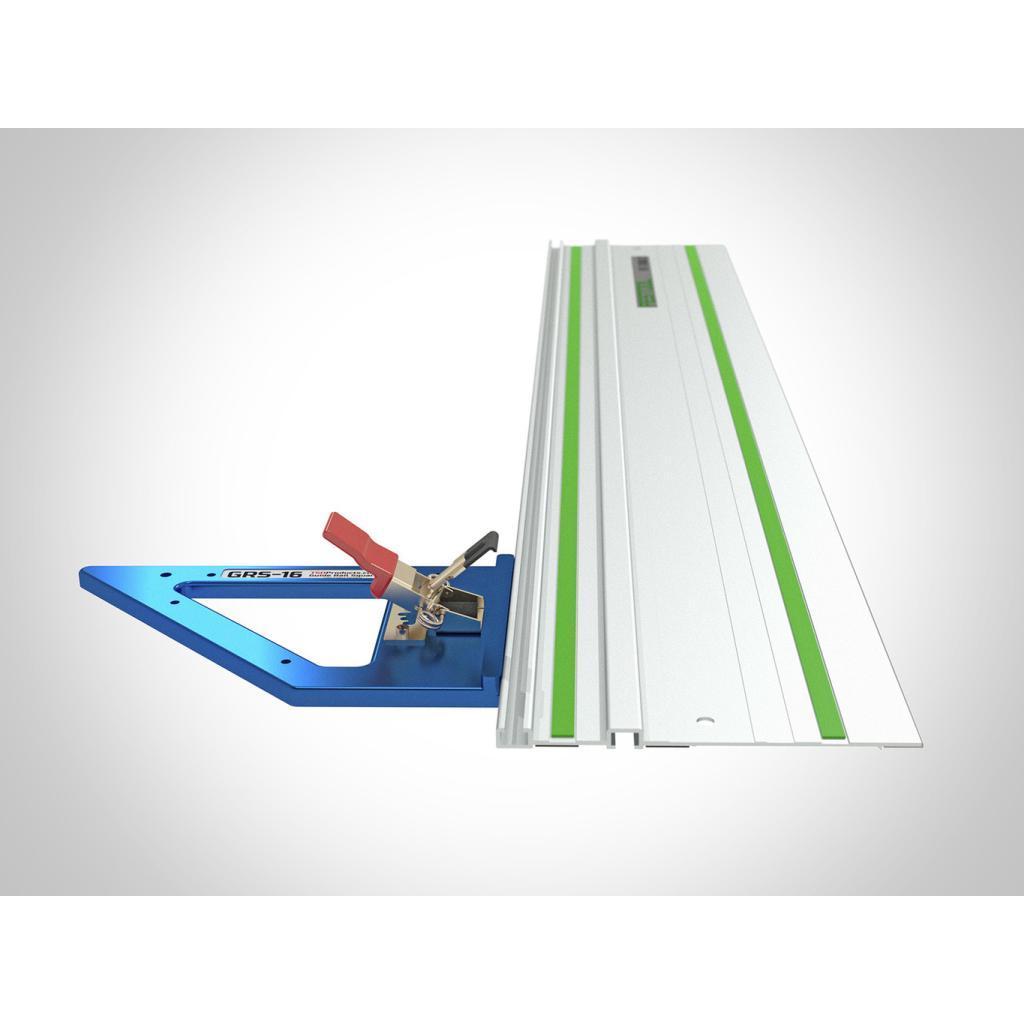

To install the GRS-16 Guide Rail Square, slide it into the bottom T-slot before engaging the draw latch to clamp it in place.

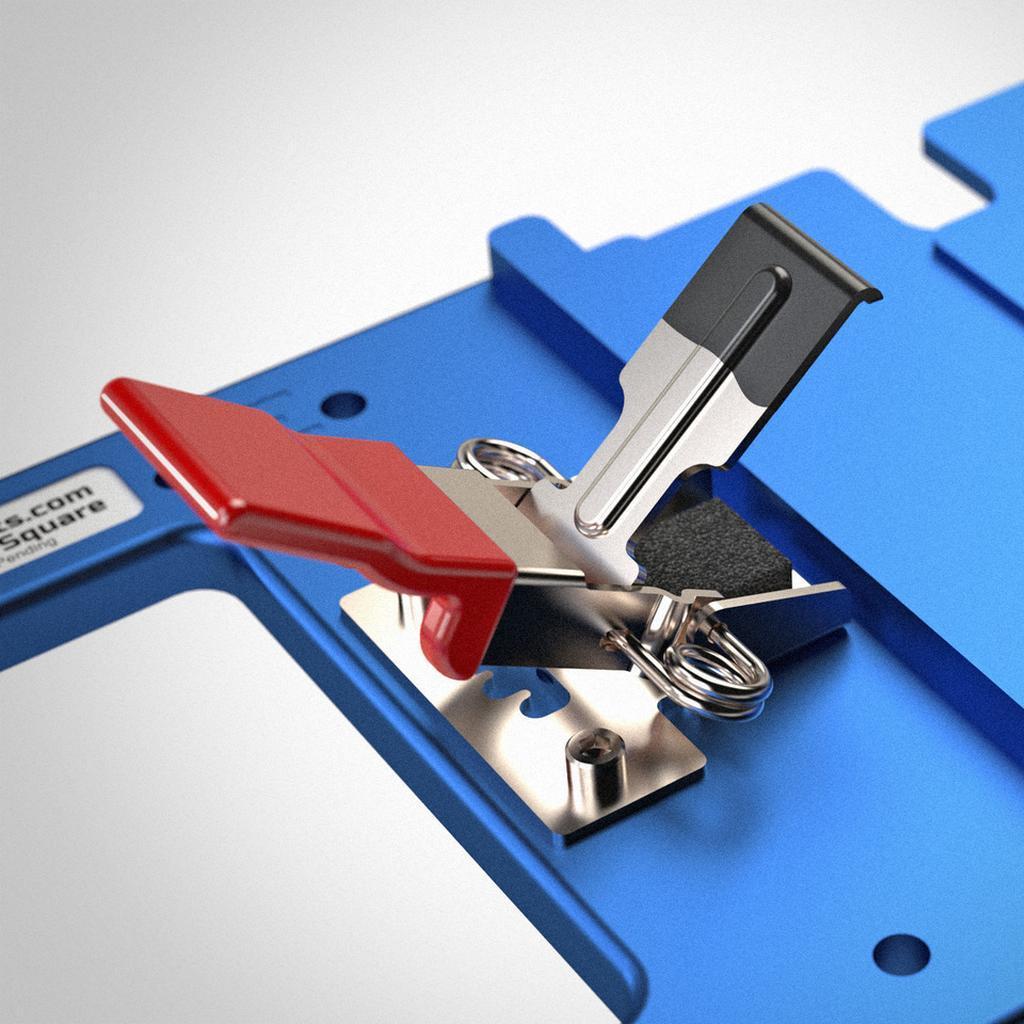

The stainless steel draw latch has a coating on the hook to prevent damage to the guide rail, and handle for a better grip.
The GRS-16 Guide Rail square being used to align a guide rail square to the edge of a panel of MDF.
Roll over image to zoom in Click on image to zoom
The GRS-16 square features a one-piece aluminum body with self-aligning features and accessory mount holes.The GRS-16 square features a one-piece aluminum body with self-aligning features and accessory mount holes.TSO Products GRS-16 attached to a Festool FS Guide Rail for crosscutting applications. The draw latch aligns the guide squareThe GRS-16 Guide Rail Square sits on top of three compatible track saw guide rails by Triton, Festool and Makita.To install the GRS-16 Guide Rail Square, slide it into the bottom T-slot before engaging the draw latch to clamp it in place.The stainless steel draw latch has a coating on the hook to prevent damage to the guide rail, and handle for a better grip.The GRS-16 Guide Rail square being used to align a guide rail square to the edge of a panel of MDF.

TSO Guide Rail Square GRS-16 61-130-R A

TSO ProductsSKU: TSO-61-130-R A
Price:
$240.95

Hurry! Stock is running low for this product!

Description

TSO Products GRS-16 Guide Rail Squares are the most refined guide rail squares available. They are ideal for making perfectly square cuts with your track saw.

The GRS-16 has one square reference face and is suitable for aligning a guide rail square to the front edge of the workpiece. It is smaller and lighter than the GRS-16 PE.

Fits most guide rails

Compatible with Festool FS, Makita and Triton guide rails.

Self-squaring

To set up a GRS-16 Guide Rail Square, simply slide it onto your guide rail to the desired position and throw the draw latch to align it square to the guide rail and lock it in place. Then start cutting.

5-second installation

With automatic alignment and only a draw latch to install or remove the square from a guide rail, it is quick and easy to accurately set up, and just as quick to remove so there is no need to dedicate a rail to crosscutting work, or waste time setting up for crosscutting.

Compatible with track clamps

Cutouts in the square body don't interfere with the use of track clamps to secure the guide rail to your work.

Durable and lightweight

Each square is precision-machines from a single piece of 6061-T6 aluminum and anodized for a non-marking, durable finish.

Built for a lifetime of use

Thoughtfully engineered and carefully made from high-quality rust-resistant materials and components, these tools are made for a lifetime of use.

Sized to fit in a Systainer

Both GRS-16 and GRS-16 PE Guide Rail Squares fit in a single SYS1 T-Loc Systainer. Use the accessory Dual FoamPac Systainer Insert (sold separately) to keep them protected in transit.

Specifications

  • 6061 T6 aluminum, anodized
  • 5/8 inches (15 millimetres) thick
  • Compatible with Festool FS, Makita, and Triton guide rails; not compatible with Festool FSK, Bosch or DeWalt guide rails
  • 304 stainless steel draw latch with compensating spring, secured with M4x0.7-10 stainless steel socket head screws
  • 1.7 pounds (0.772 kilograms)
  • 15.x 6.0 x 1.4 inches (385 x 152 x 36 millimetres)

Scope of delivery

  • 1x GRS-16 Guide Rail Square
  • Lifetime warranty
