Description

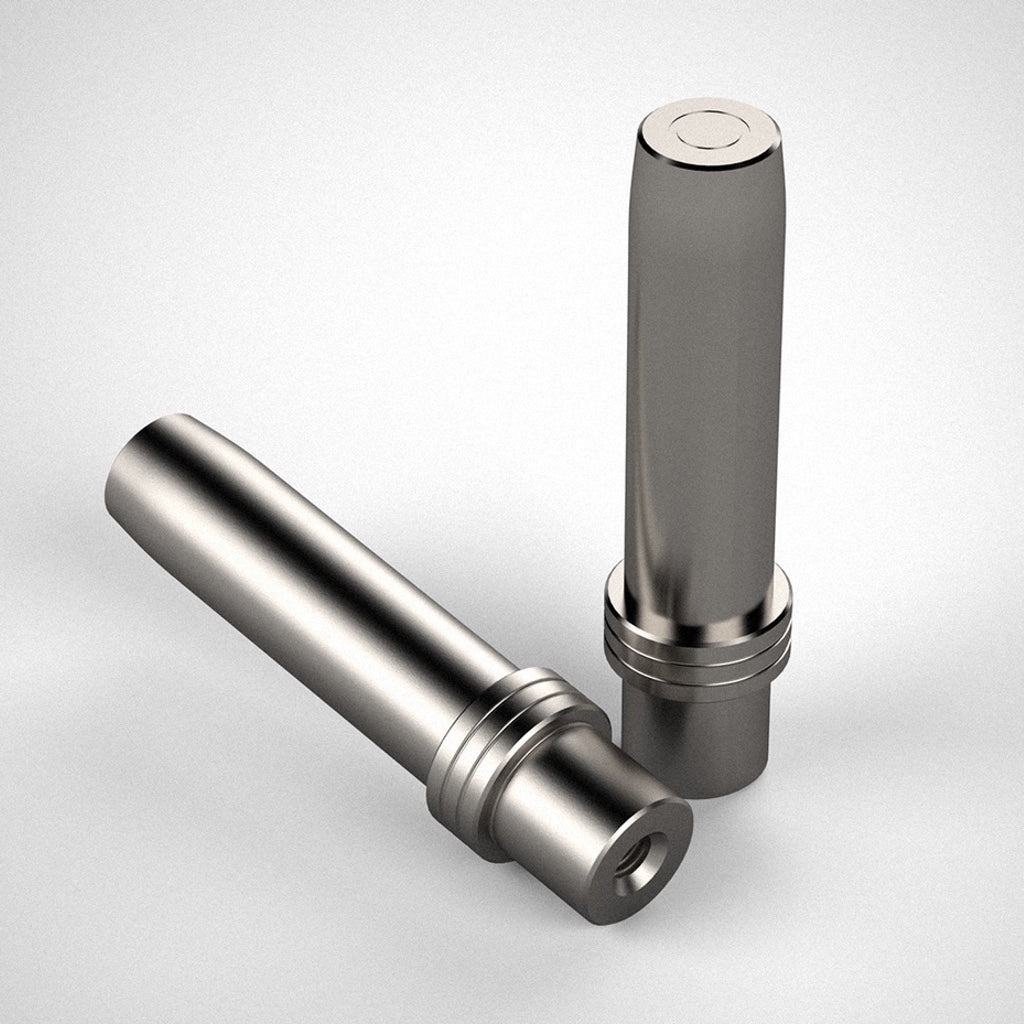

Close fit dogs are sized at 19.98 millimetres (instead of 19.90 millimetres for a Festool MFT) in diameter and are ideal for 20 millimetre dog holes made with the Parf Guide System or a CNC router.

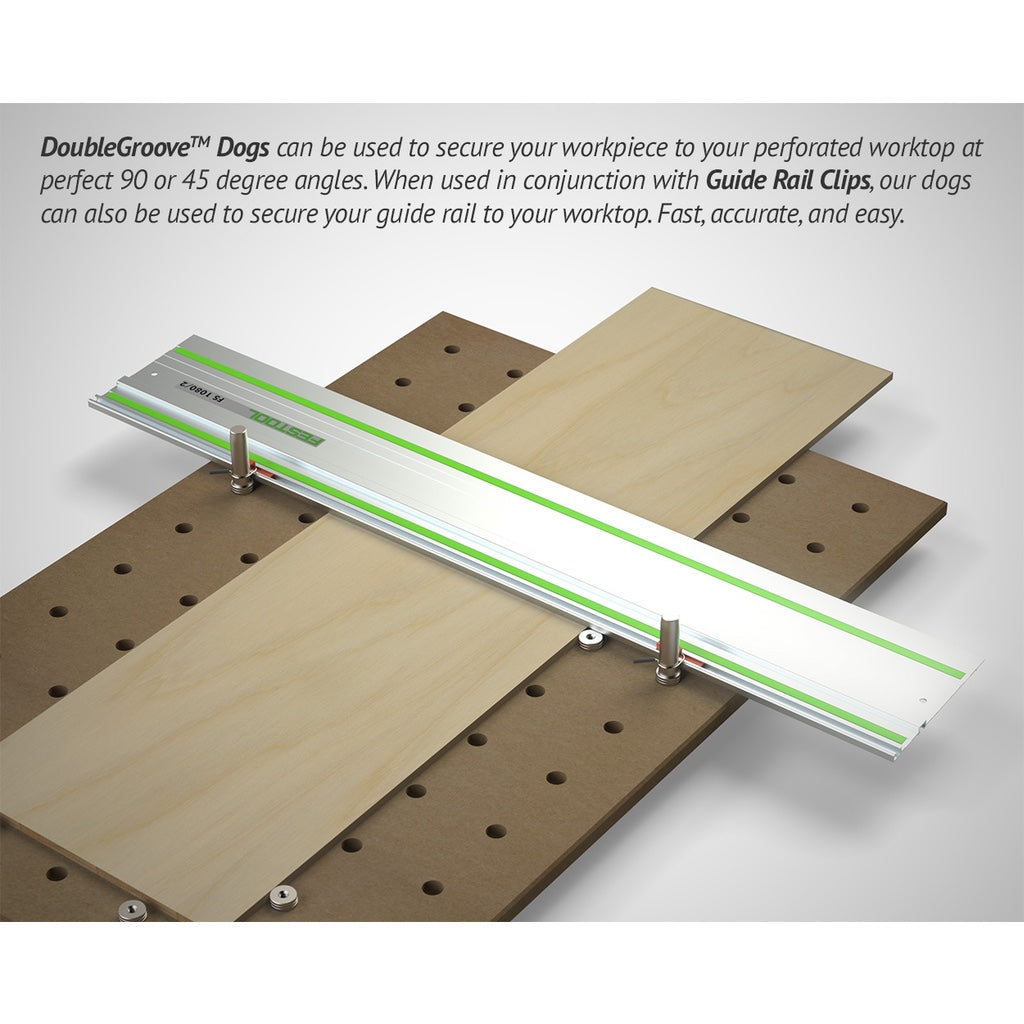

Tall dogs are designed to aid in the positioning of a guide rail in line with 20 millimetre dog holes for repeatably accurate cuts on a MFT-style worksurface.
Easy to install or remove
Chamfered edges allow easy insertion, and grooves around the collar allow a better grip for easier removal.
Easy to use
The tapered tip allows easy installation of Dog Rail Clips onto the dog.
Accurate by design
A small undercut under the collar guarantees the dog can stand at 90 degrees to the work surface even if the dog holes aren't free of tearout.
System compatible
Lock down the dogs with an M8x1.25 male knob such as the knobs included with a set of Festool Clamping Elements or TSO's own SpeedKnobs.
Specifications
- 19.98 millimetres diameter
- 70 millimetres above the collar
- 18 millimetres below the collar
- 6061-T6 aluminum
- Clear anodized
Scope of delivery
- 2x DoubleGroove 20mm Close Fit Tall Bench Dogs
