Description
Extend the reference surface of TSO Products Guide Rail Squares and Precision Triangles for greater accuracy.
Sturdy bolt-on design
A pair of stainless steel socket head screws are used to securely fasten the Angle Accessory to your GRS-16 or GRS-16 PE Guide Rail Squares, or MTR-18 or PTR-18 Precision Triangles. (Early models of the GRS-16 and GRS-16 PE do not have the required accessory mounting holes on either side of the GRS-16 label, spaced 100 millimetres apart on centres. TSO Products Economical Drill Fixture allows you to add these holes yourself.)
Reference surface increased
With the Angle Accessory installed, the effective thickness of a guide rail square is 1-7/8 inch (47.6 millimetres) and allows you to reference off of chamfered, radiused, contoured or otherwise profiled edges.
Creates a large clamping surface
Attached to a Precision Triangle, the Angle Accessories provide an easy way to square drawer, cabinets and other boxes while providing a convenient clamping surface to hold everything properly aligned at 90 degrees for fastening, or while glue dries.
Specifications
- 6 x 1 x 1.5 inches (length x width x height
- 6000 series aluminum alloy

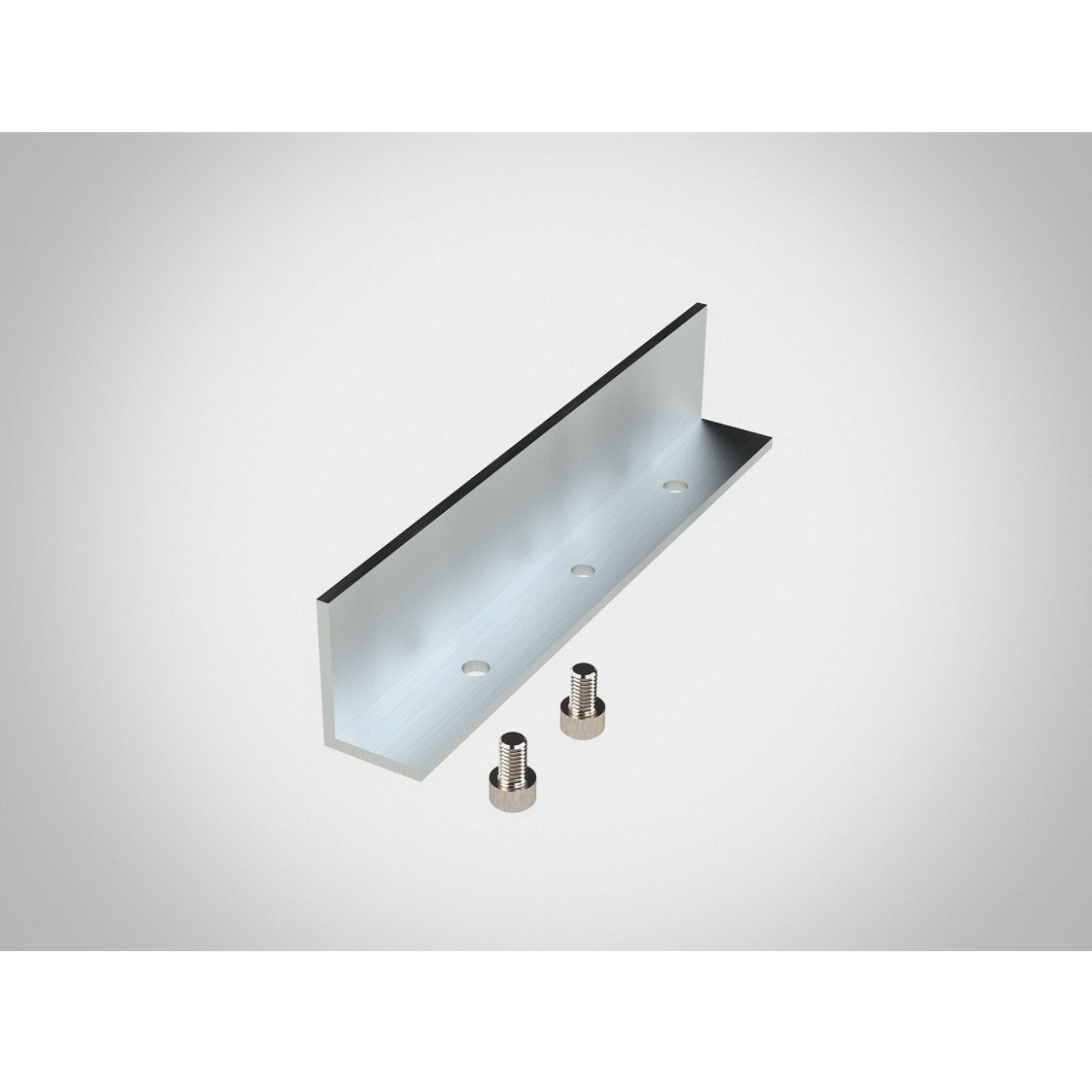

Scope of delivery
- Short Angle Accessory
- 2x M6 stainless steel socket head screws
