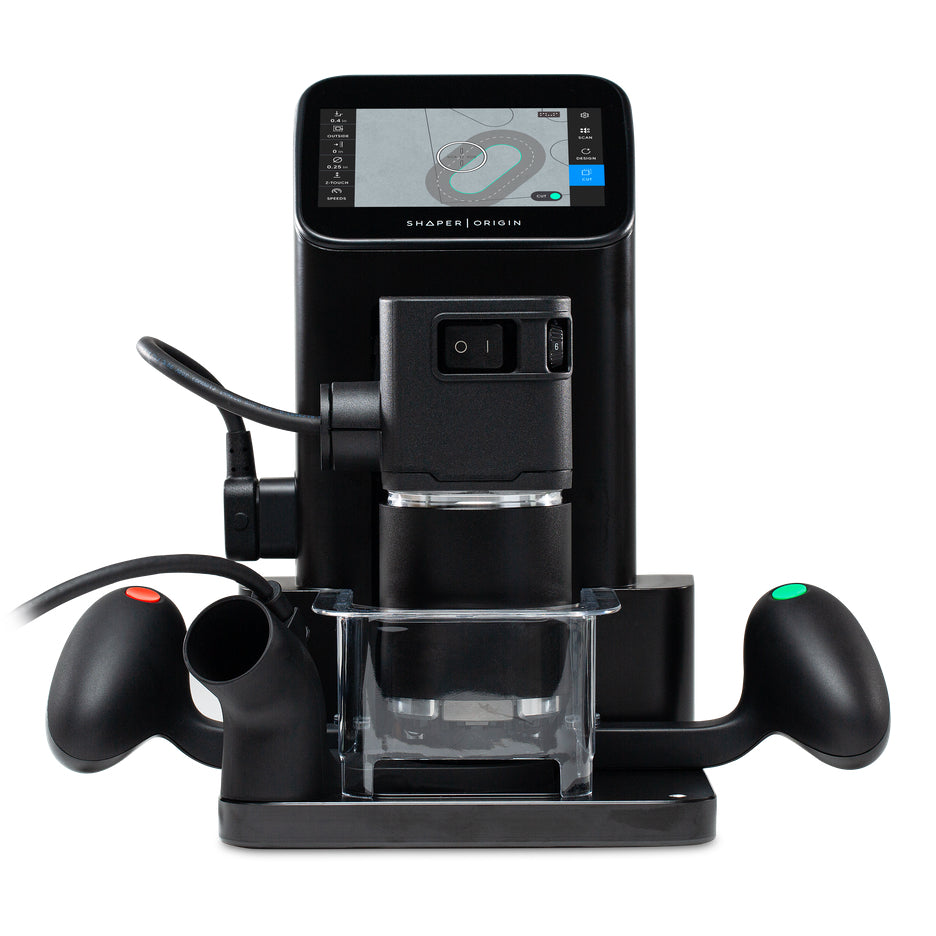

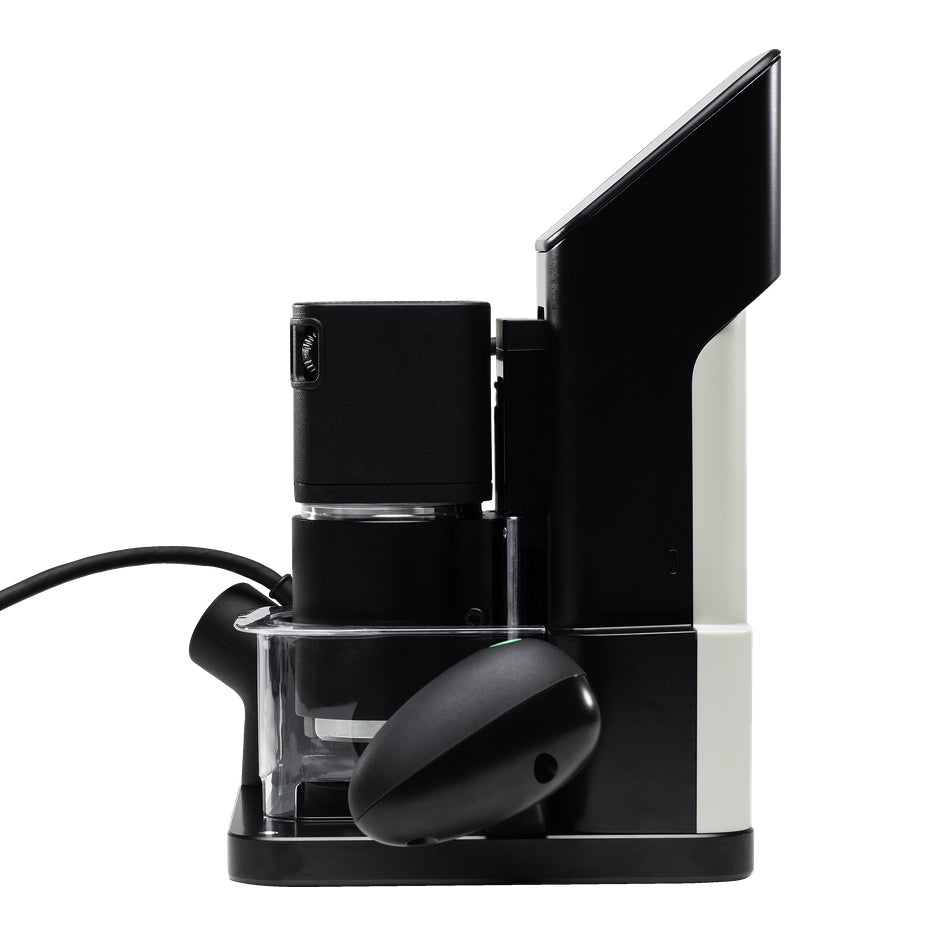

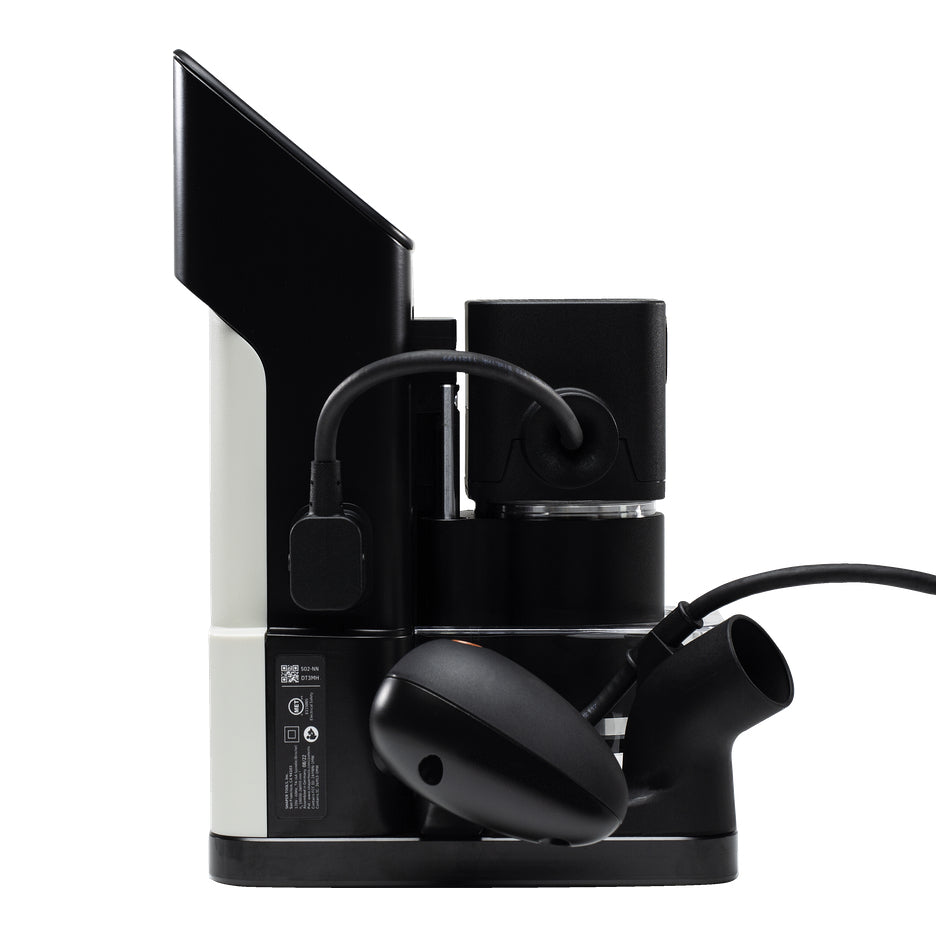

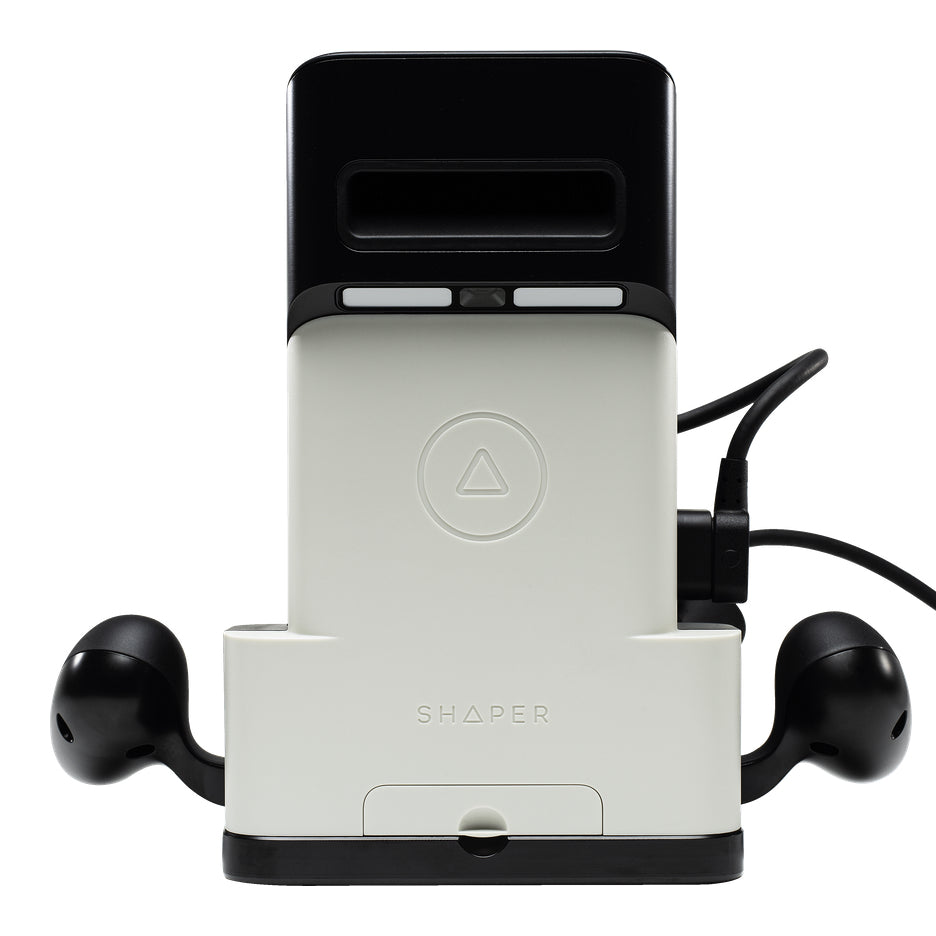

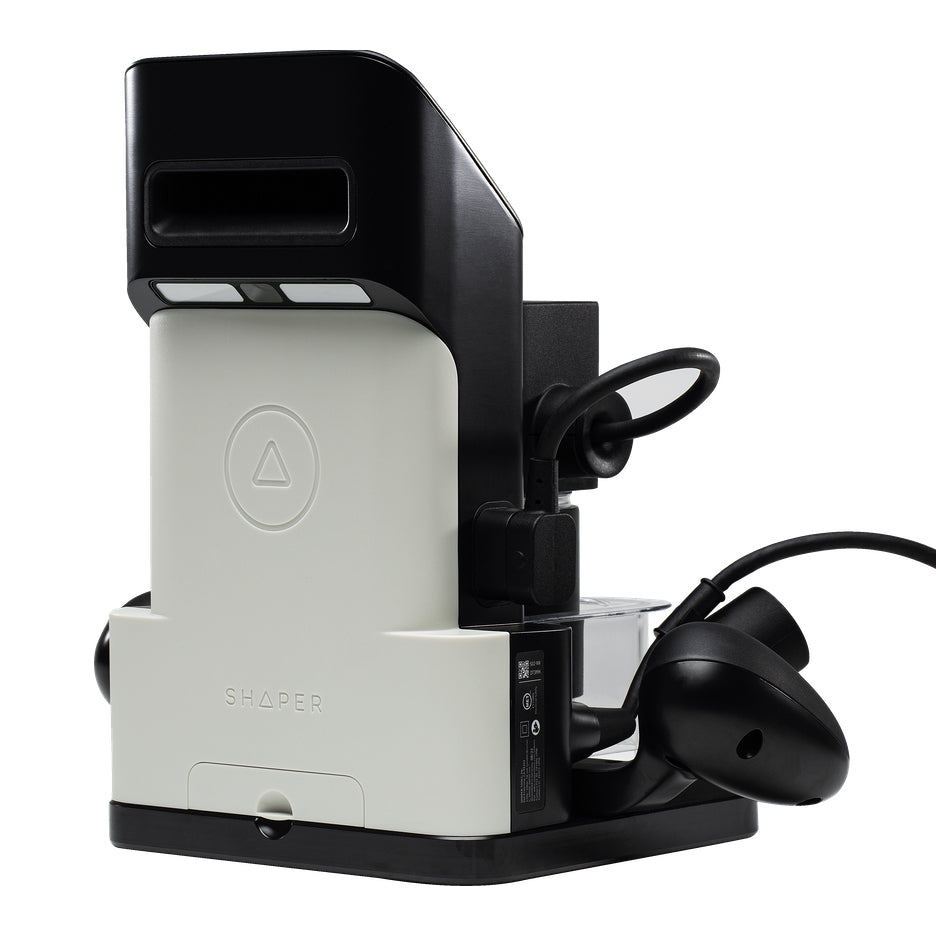

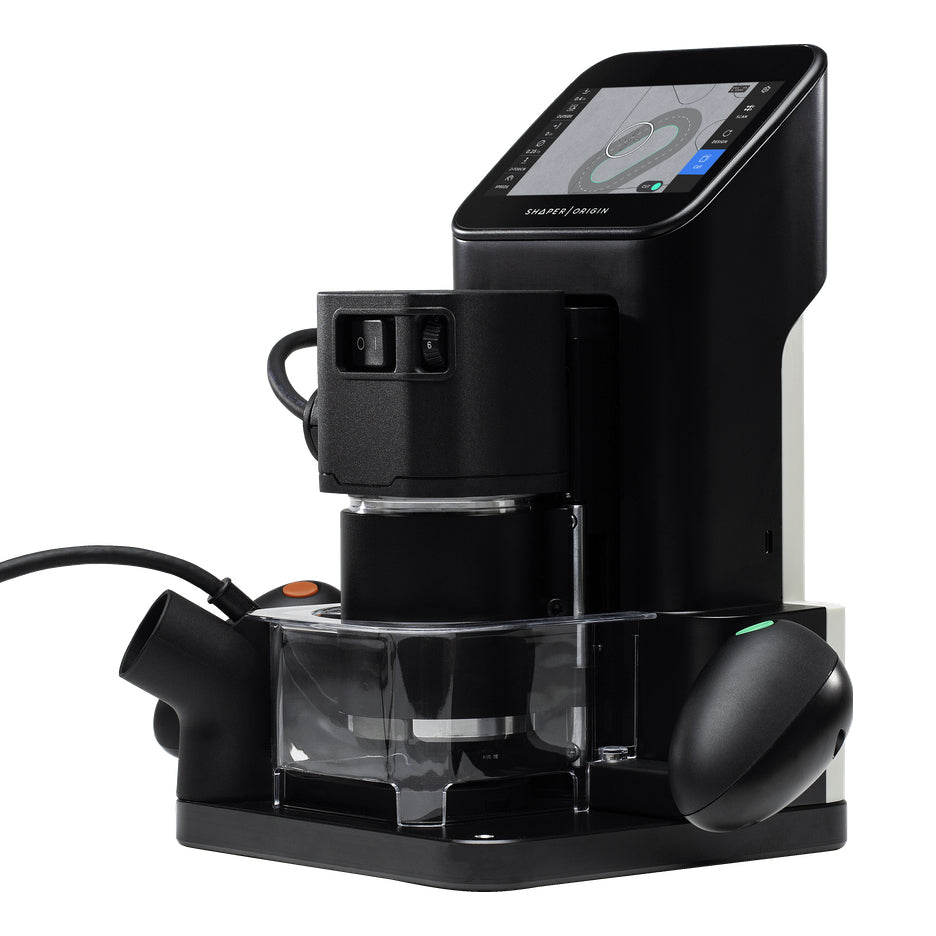

Shaper Tool Origin Handheld CNC Router SO2-NN

Shaper ToolsSKU: ST-SO2-NN

Sale price$3,999.00


A revolutionary development, the Origin provides the accuracy and repeatability of CNC with portability of a handheld router. While the entire unit is handheld and moved around by the user who provides the gross movements, the motor spindle itself is attached to a CNC-controlled mount that provides the precision.

The new and improved Origin makes precision cutting easier than ever before. It features a 25% larger screen at 2.4 times the resolution, improved scanning performance, aluminum unibody and more.

Origin's automatic cut correction brings CNC accuracy to handheld routing

With a computer-guided spindle mount, Origin automatically adjust the router spindle position within the tool to ensure it's always cutting in the right place. The on-screen display shows you where to move the tool, and the tool takes care of the fine positioning. With Origin, you can achieve precision without specialized jigs and templates.

Touch screen interface makes operation easy intuitive

The large colour LCD multi-touch screen makes adjustments and operation simple. Basic shapes and designs can even be programmed on the tool.

Connect to Origin via WiFi and USB

Origin is Wi-Fi enabled for transfer of design files via ShaperHub, and for receiving software updates. The USB port allows easy offline transfer of SGV design files.

Dust extraction port for 27 and 36mm hoses

Keep the work area (and your lungs) clean, maximize accuracy, extend cutter life and minimize clean up time by connecting Origin to dust extraction.

Origin specifications

  • 720W brushed AC motor
  • 10,000 - 26,000 RPM with load-compensating speed control
  • Soft-start, over-temperature and over-load safety cut-offs
  • Produced by Festool to Shaper specifications
  • 43 millimetre (1.7 inch) Z-axis (vertical) travel, digitally adjustable depth of cut
  • Automated touch-off sensor
  • 14.9 pounds
  • 13.35 x 8.94 x 12.04 inches (width x depth x height

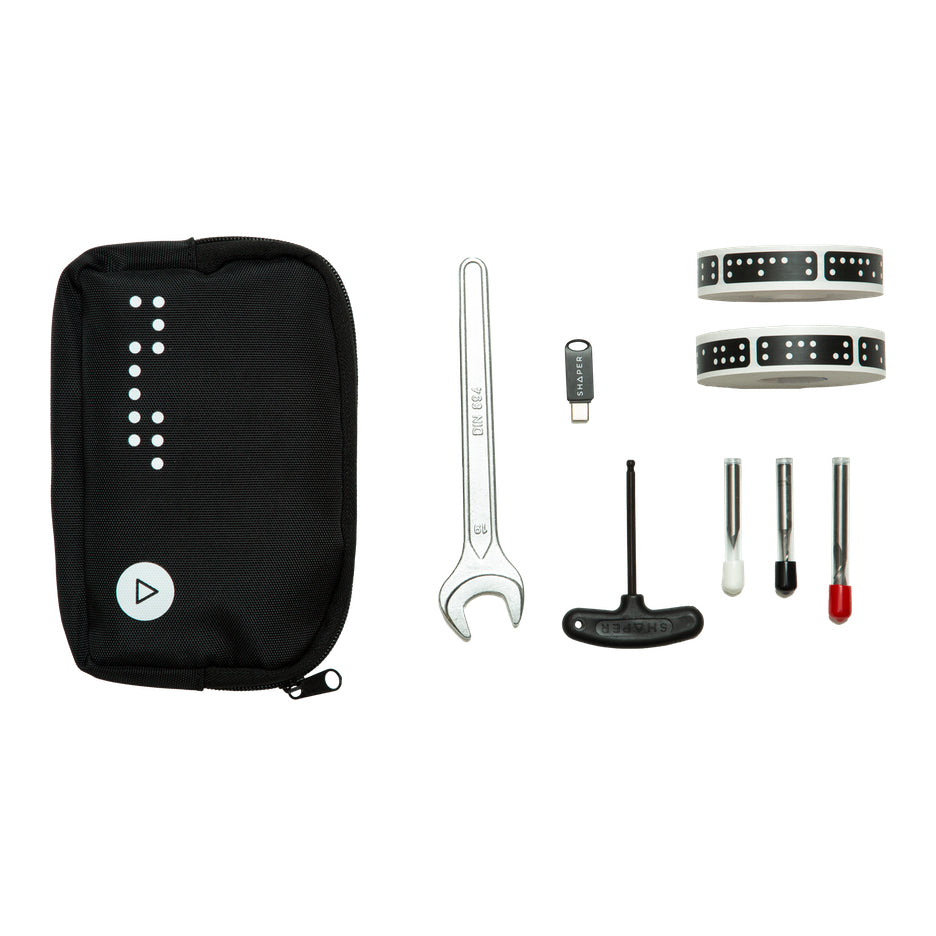

Origin scope of delivery

  • 1/4 inch collet
  • 2x 150-foot rolls of ShaperTape
  • 4mm hex wrench with T-handle for spindle removal
  • 19mm wrench for collet
  • 1/8 inch upcut spiral router bit
  • 1/4 inch upcut spiral router bit
  • 60 degree engraving cutter

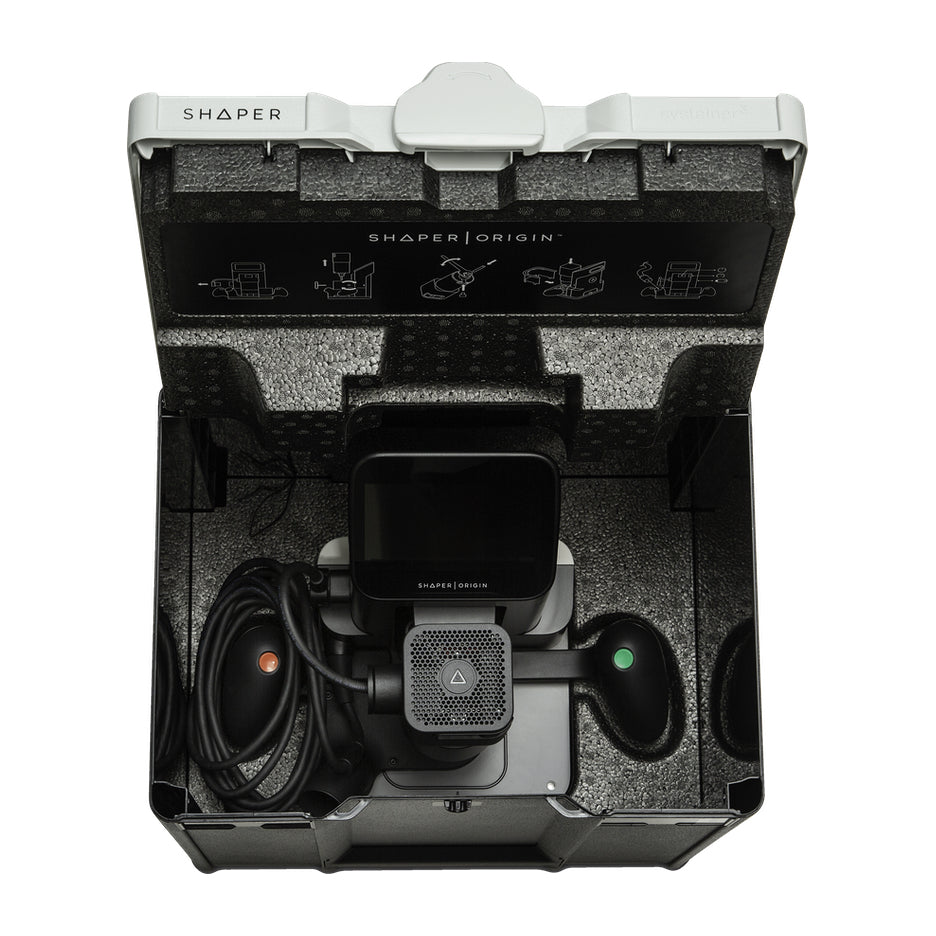

  • Systainer Sys3 M 437
  • 1 year warranty + 1 extra year with registration
