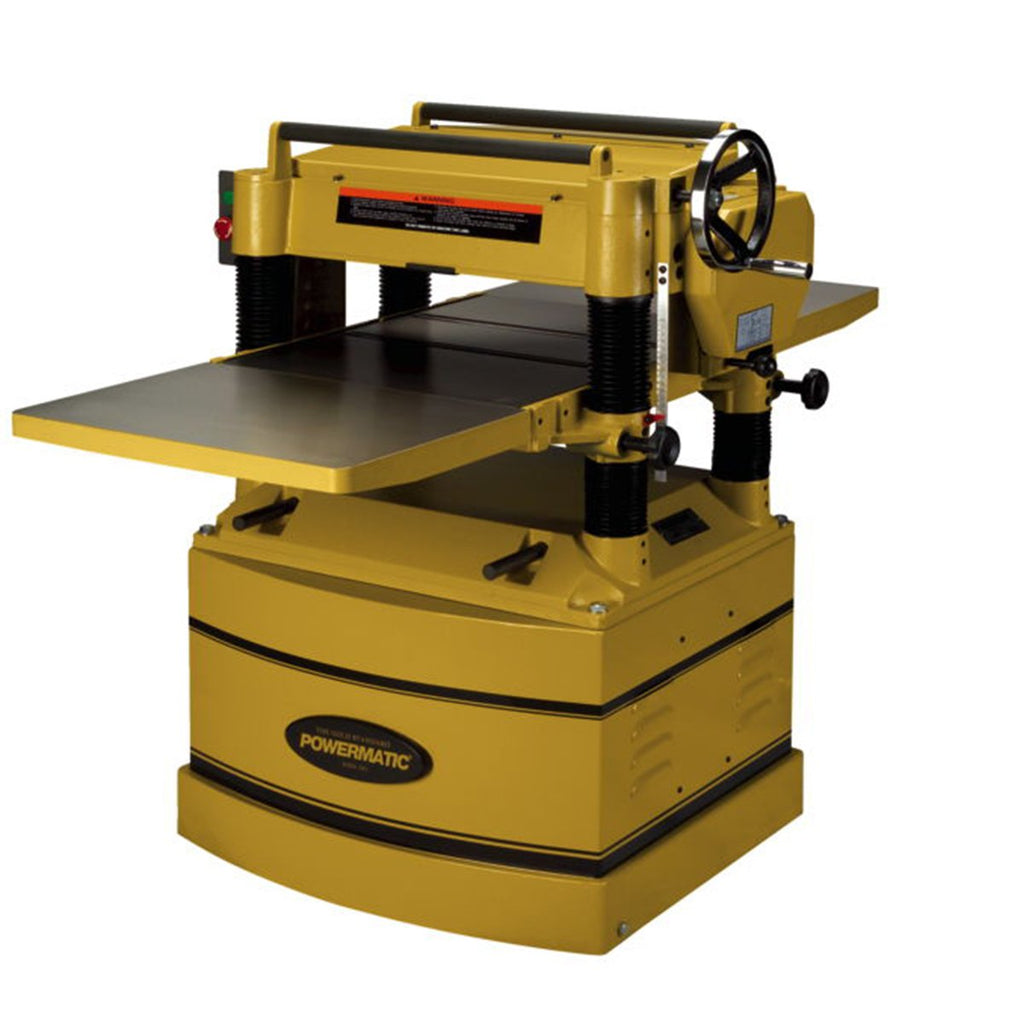

This heavy duty planer offers performance and value, loaded with standard features not found on other machines in its class. The powerful 5HP motor and 20" planing capacity will handle the most demanding work. The 5" dust port connects easily to any dust collector. The cutterhead has four high speed steel knives and turns at 5,000 RPM producing 20,000 cuts per minute. The anti-kickback fingers and pressure bar are located in close proximity to the cutterhead for an exceptional finish. The solid cast iron base, table and head are designed for production. The 2-speed oil bath gearbox transmits full power to feed rollers and facilitates fast speed changes at 24 and 31 FPM. The gearbox can be changed to 4-speed with the included gear to run lower speeds of 16 and 20 FPM. The corrugated infeed and fine groove outfeed rollers ensure a smooth feed. The precision ground and polished cast iron table rides on four steel columns giving it plenty of support for the larger workpiece. Heavy cast iron extension wings ensure a flat, smooth cut.
- Cutterhead contains 4 high speed steel straight knives for a clean, smooth cut
- Available helical cutterhead with 100 four-sided carbide knife inserts provides smoother, quieter cutting and finer finish than conventional systems
- Chip breaker and pressure bar assists to reduce snipe
- Fully enclosed base cabinet with integrated casters for shop mobility
- Chrome-plated, ergonomic handwheel makes adjustments smooth and easy.
- Cast iron table with extensions creates a big 55-1/2" x 20" working area
- Serrated steel infeed roller and smooth steel outfeed roller allows for 1/8" maximum depth of cut and trouble-free operation
- Feed rollers and cutterhead supported by full cast iron head assembly for rigidity
Powermatic is available by special order. This product line is not eligible for free shipping. After we receive your order, you will be contacted with a shipping quote. In-store pick-up is available.
Please contact us for more details.
