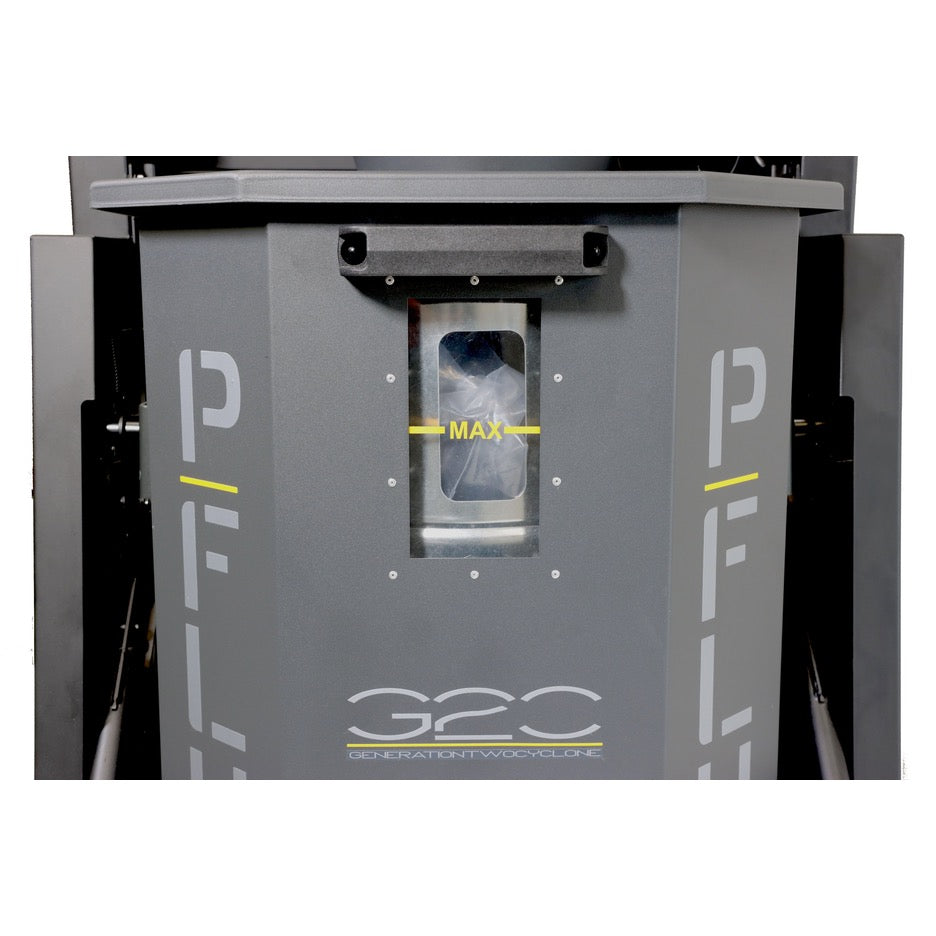

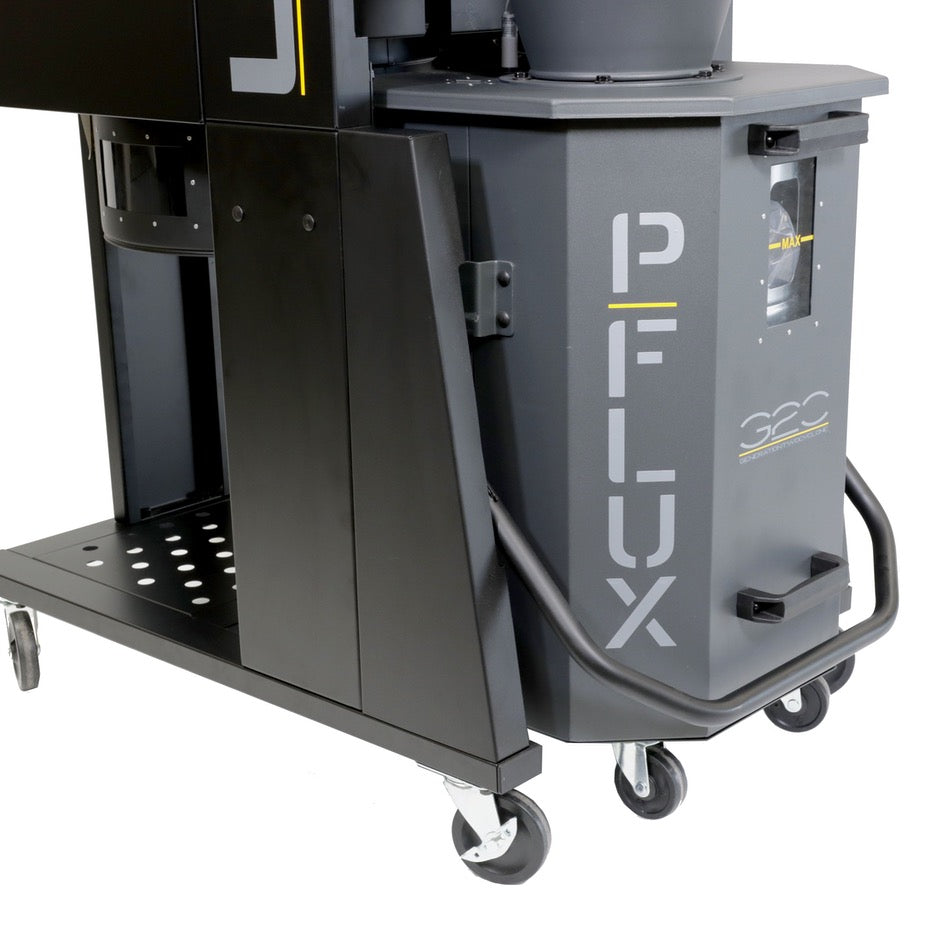

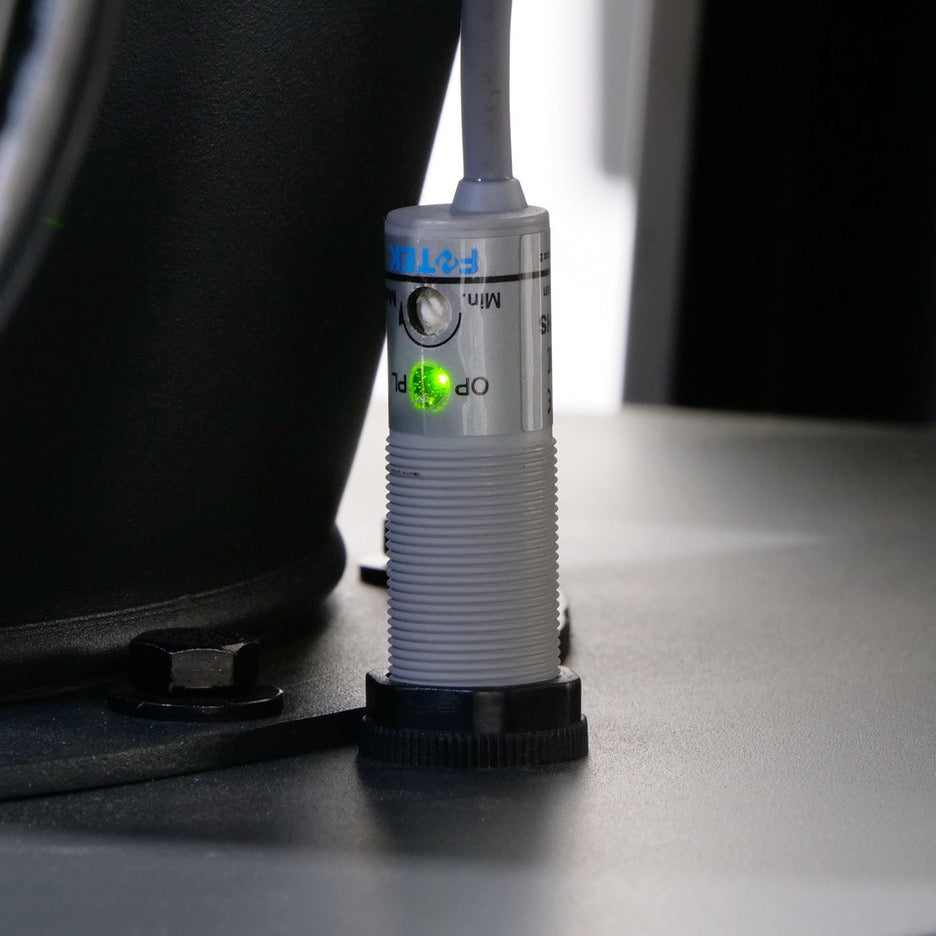

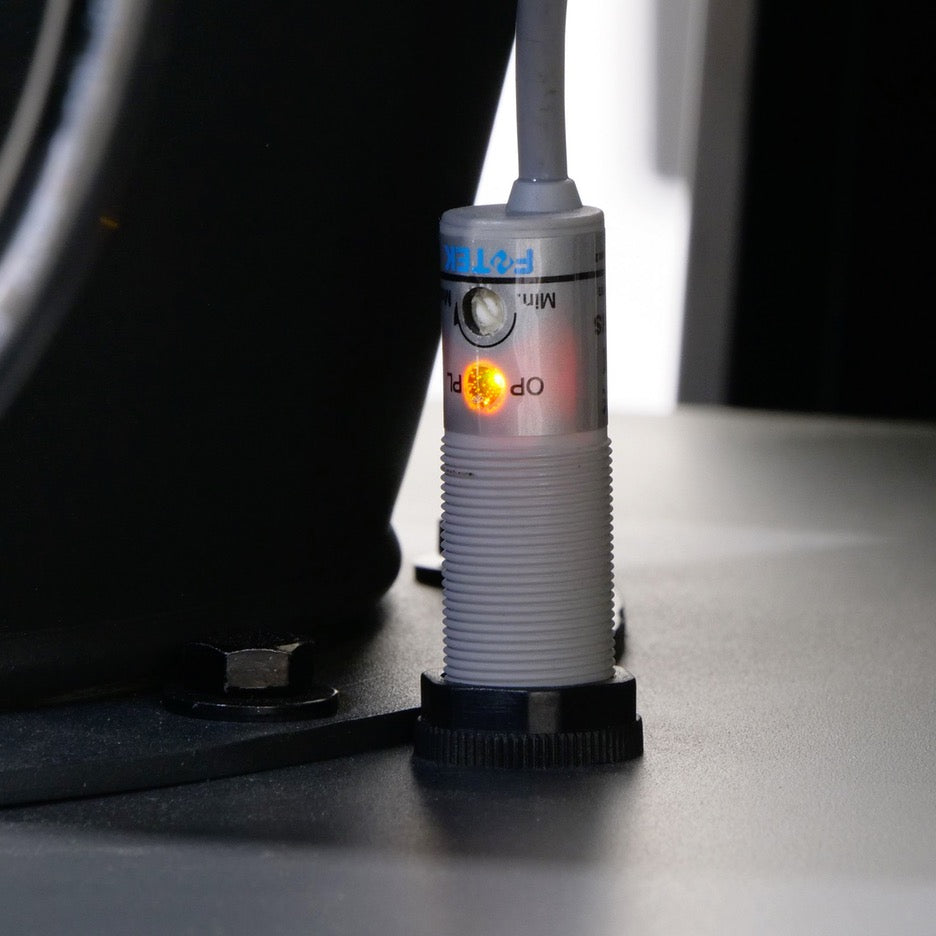

Laguna's P|Flux Cyclone Dust Collector 3 HP has been updated for 2022 and now includes an auto-cleaning feature, larger dust drum and audio/visual full-drum indicator. High quality 4 inch swivel casters make moving the unit easy, and the two at the front lock to keep it from moving on its own.

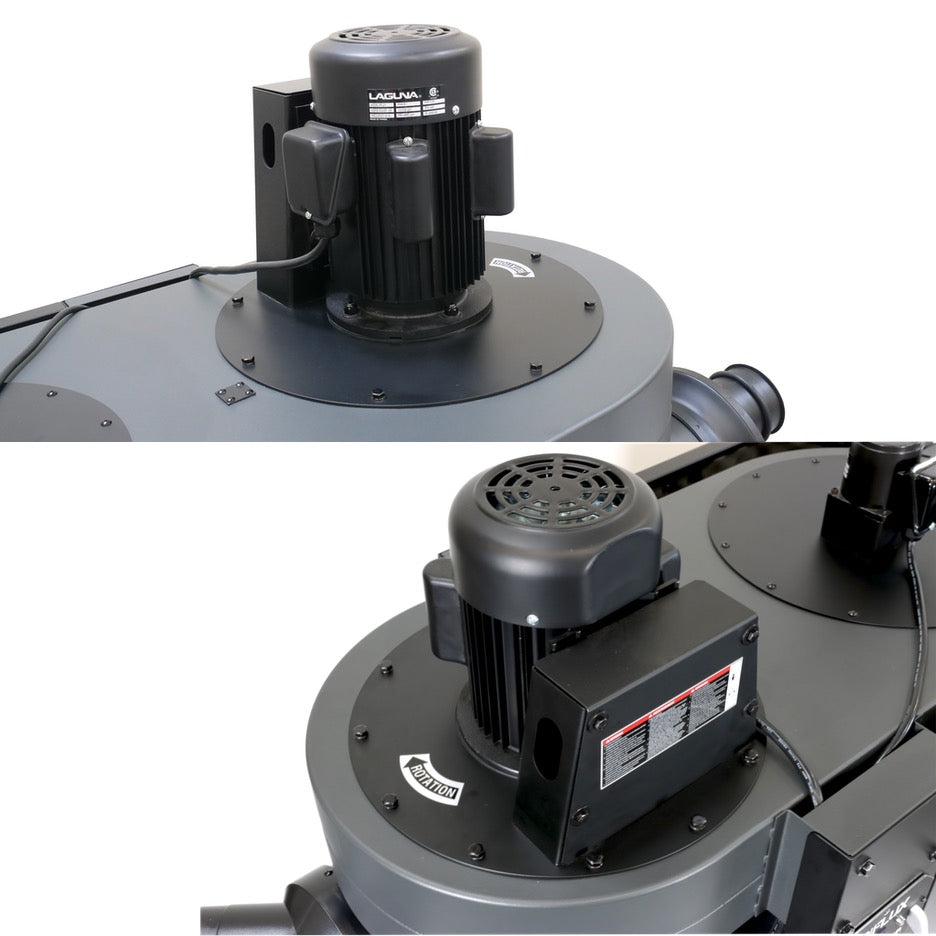

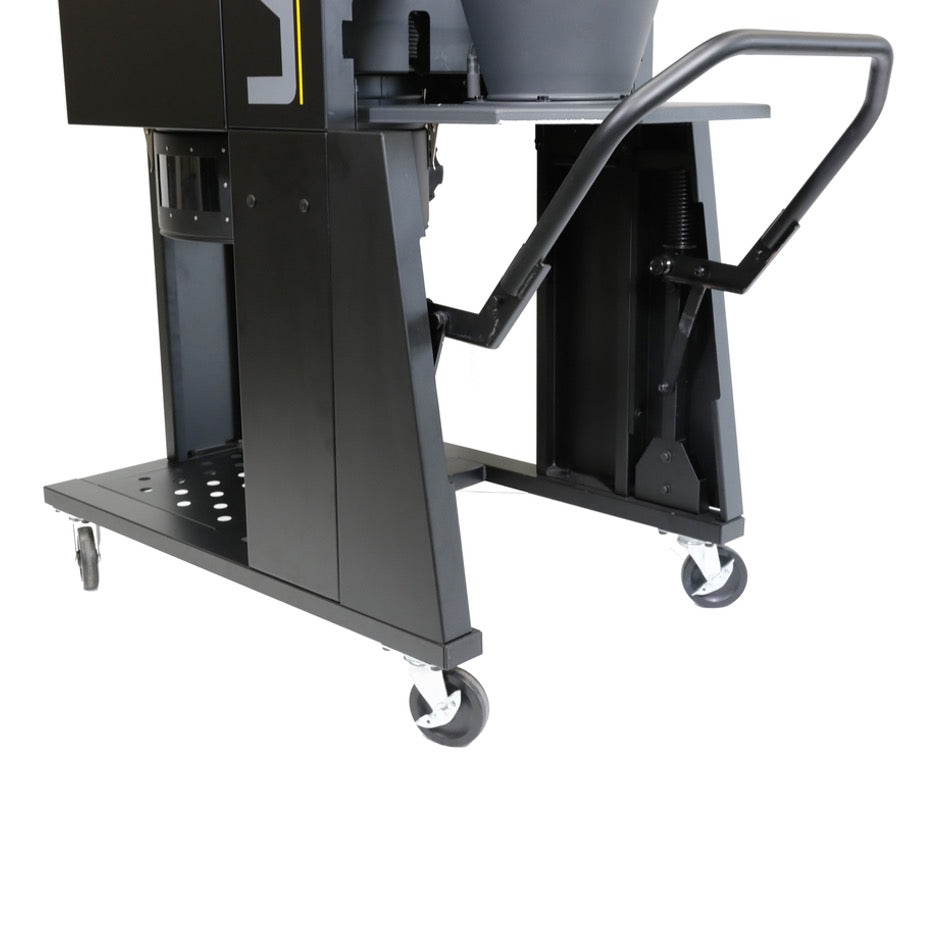

The P|Flux is designed for maximum suction with fewer internal obstructions from connections between parts, a drum lift system to eliminate flex hose, and flexible rubber inlet. Vibration is also reduced with a heavy-duty, oversized motor mount and steel fan blade balanced to ISO 1940 standards.

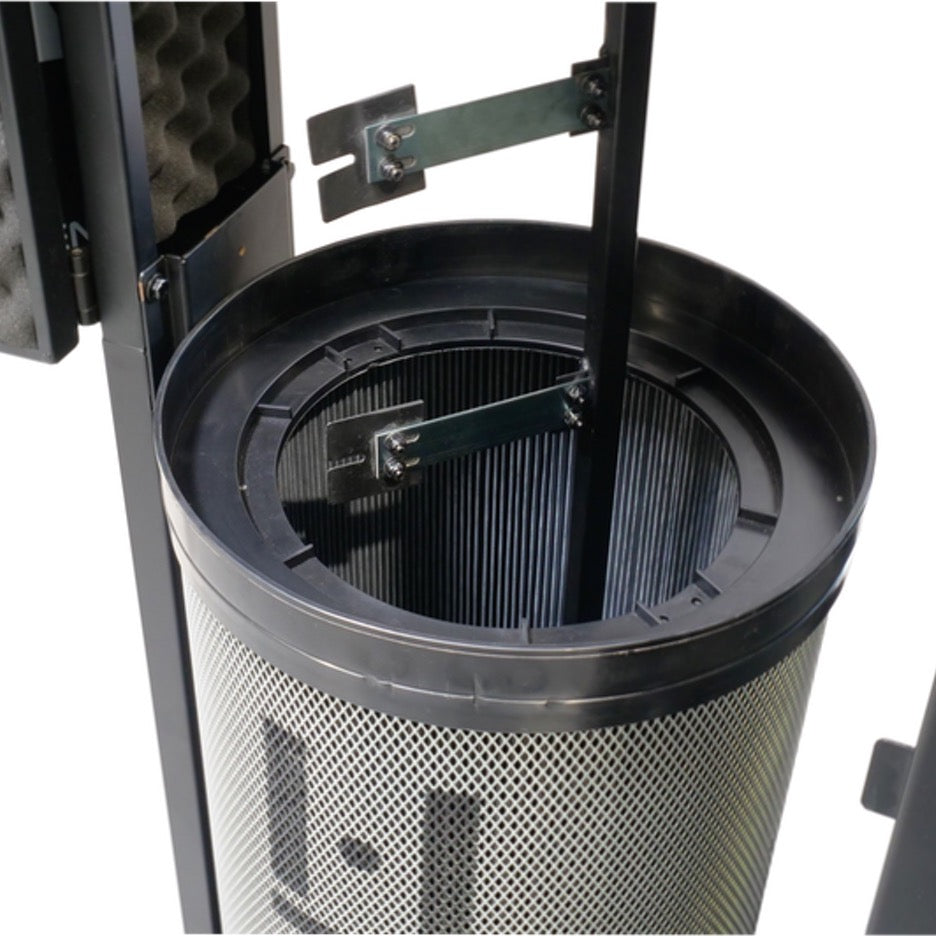

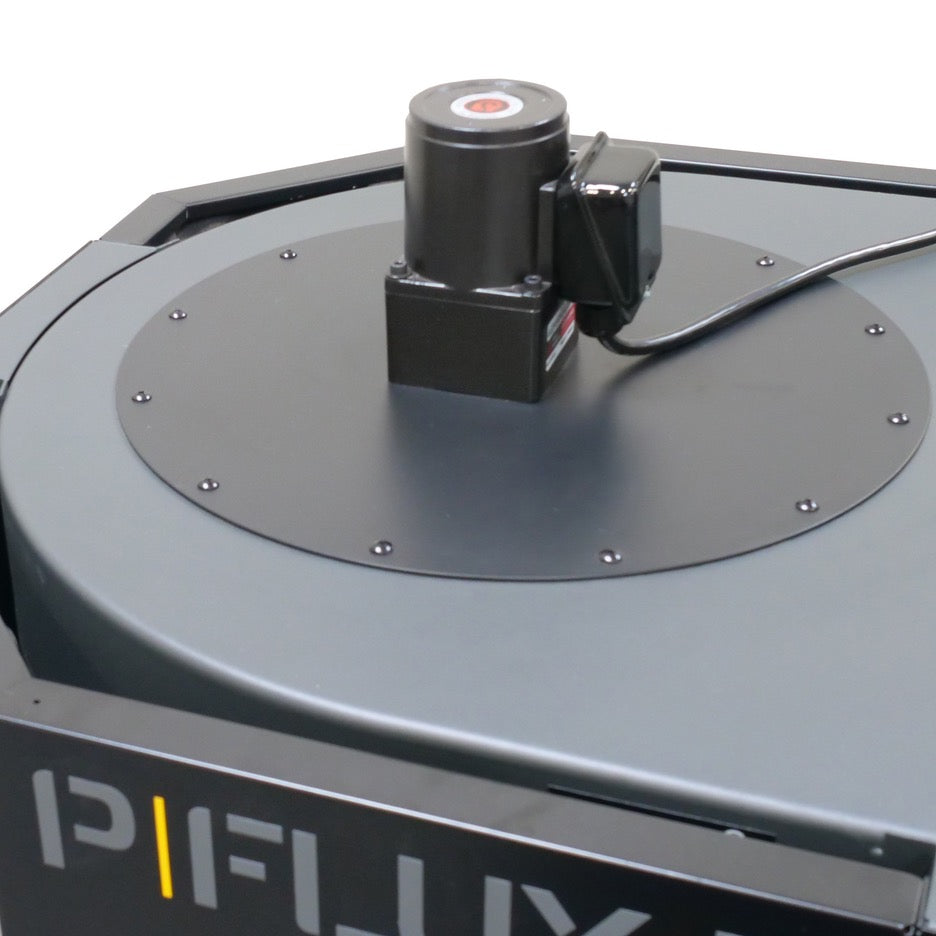

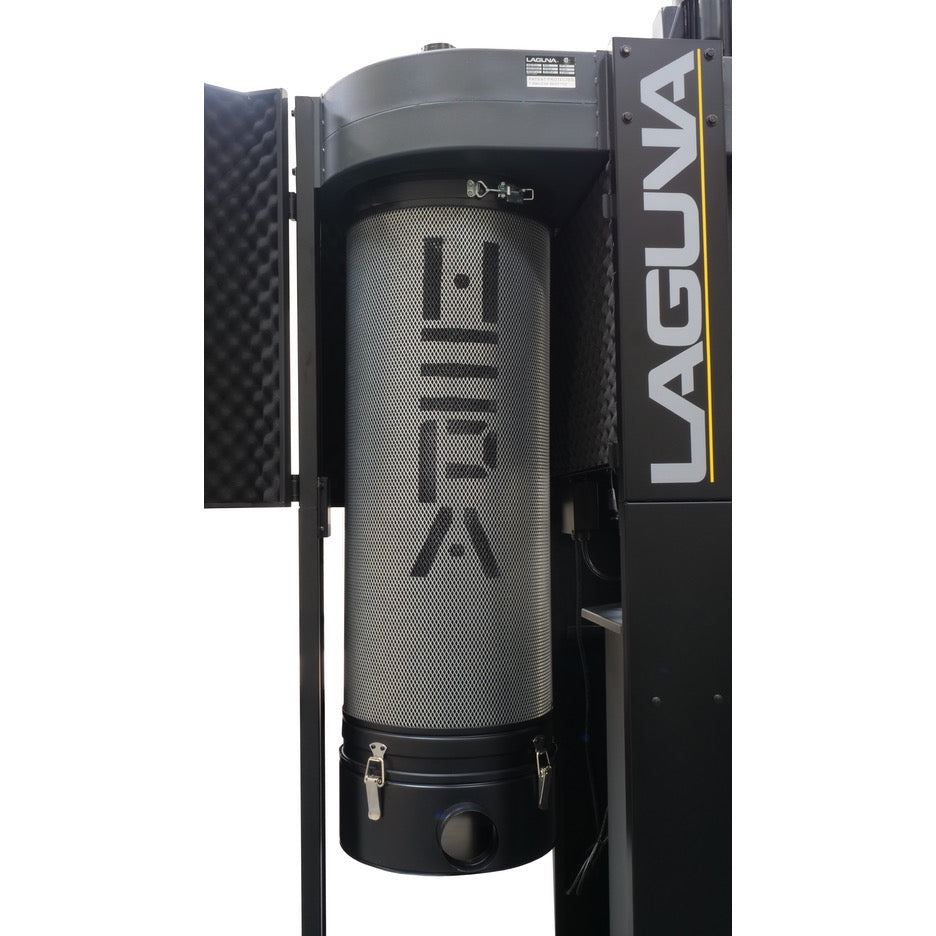

The canister filter from Denmark now features 102 square feet of surface area, and dual cleaning paddles ensure that the filter is cleaned thoroughly.

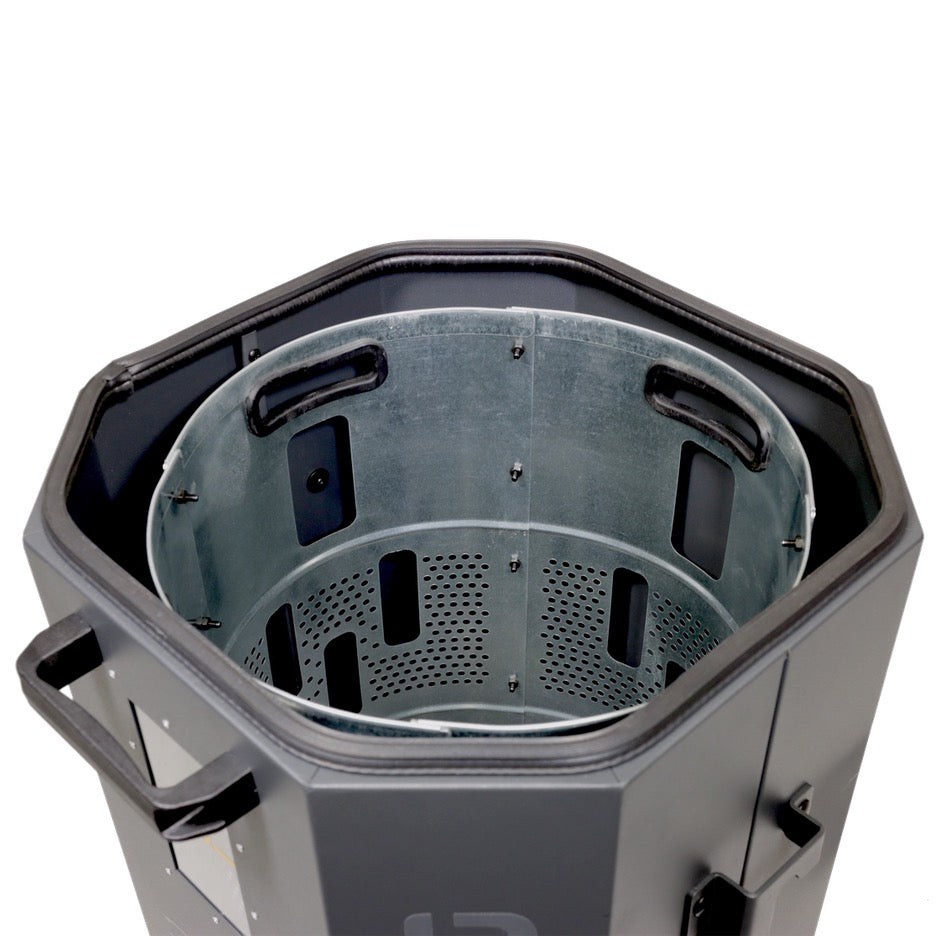

When lifting the drum into position, a connector on the back of the drum automatically hooks up to a pipe in cyclone this way creating a low pressure area in the bottom of the drum. This is designed to hold down the plastic bag to avoid it being sucked up into the cone during use. If you choose to use the P|Flux without a bag you can simply shut off the system using a valve offering you speed and flexibility.
- 3 horsepower
- 220 volts
- 60 hertz
- 1 phase
- 3,450 RPM
- 22 amps at 220 volts, running with 6 inch inlet
- 1,624 cubic feet per minute air volume
- 11.2 inches of water maximum static pressure
- 15.5 inch fan size
- single 8 inch or triple 4 inch ports

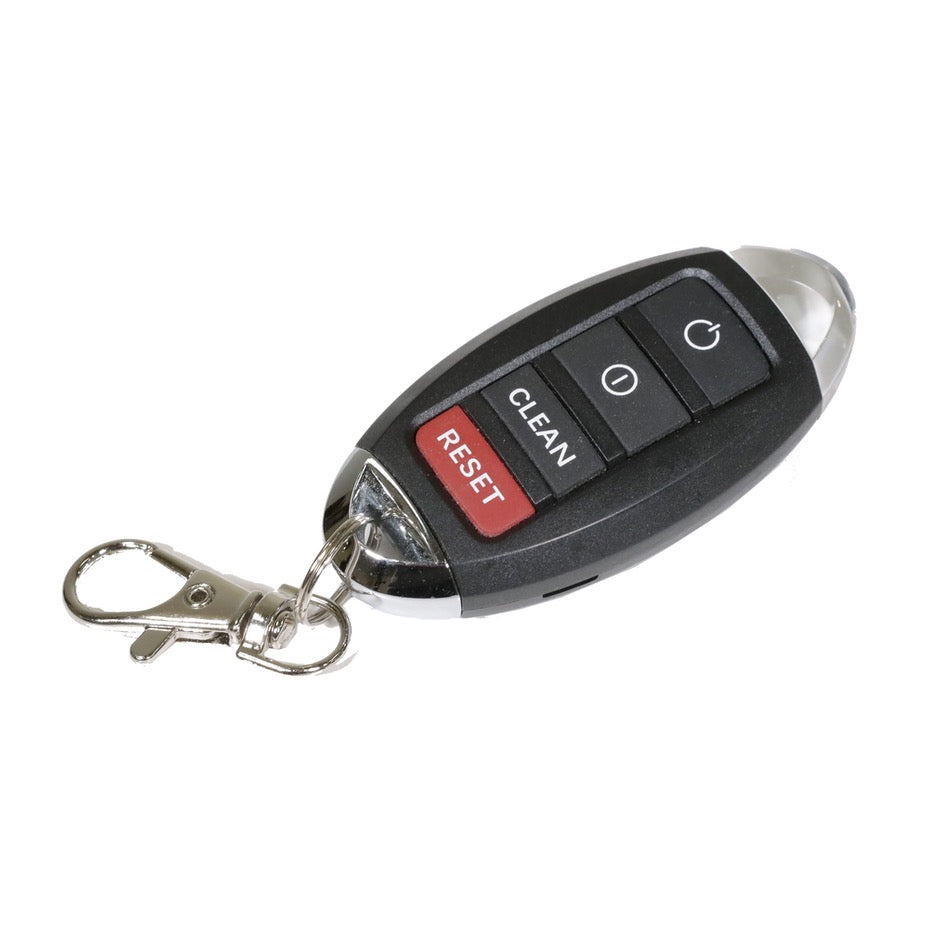

- High frequency remote control switch
- 46 gallon dust drum
- CSA approved
- 102 square feet (9.5 metres squared) filter area
- HEPA filter cartridge 15.74 x 35.43 inches (40 x 90cm)
- 48 x 28 x 88 inches assembled
- 376.2 pounds (169 kilograms)
- 50 x 31.5 x 50.6 inches packed
- 441 pounds (200 kilograms) shipping weight
