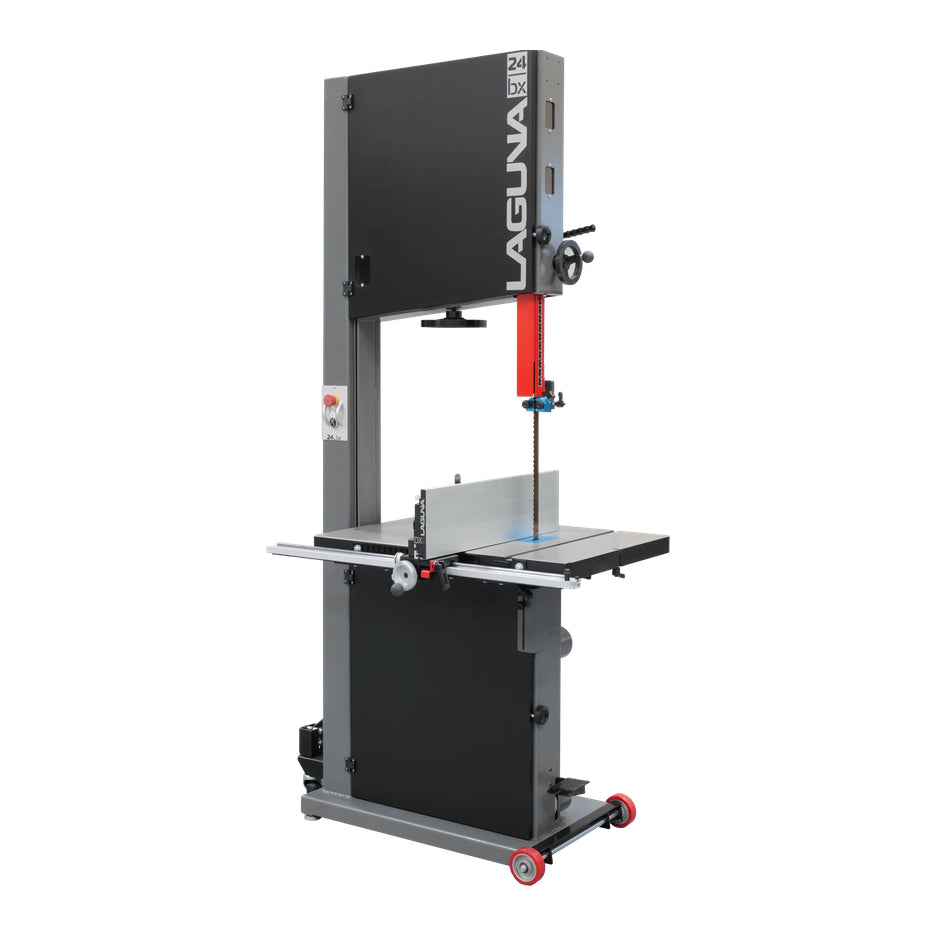

Laguna's 24|BX bandsaw has best-in-class capabilities and premium features that will impress you at every turn.
Laguna 24|BX has best-in-class resaw height and throat capacity

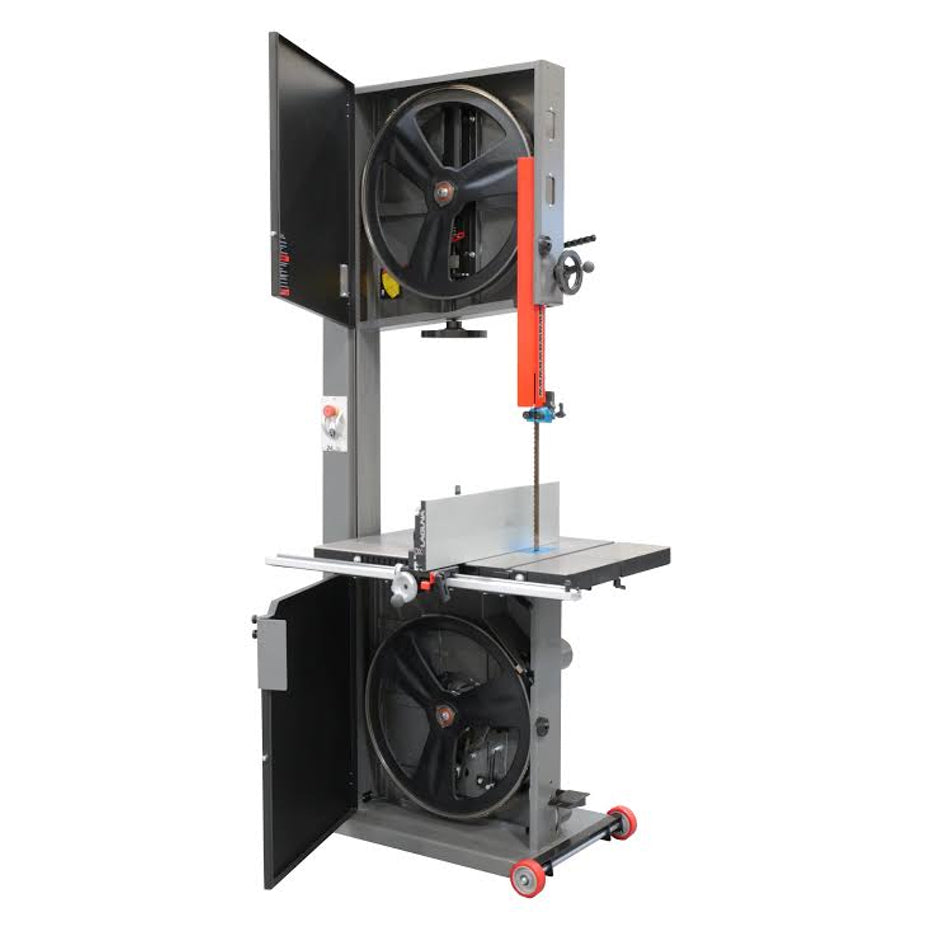

You aren't limited to what you can cut with Laguna's massive 24|BX. With a 24 inch resaw height and 24 inch throat capacity, you can cut the biggest workpieces with confidence. Powered by a 220V 5HP motor, the 24 cast iron flywheels are loaded with mass that deliver ample inertia to maintain blade speed through large cuts.
Plus, the large table provides ample support for large workpieces and is compatible with power feeders, too. The air strut assists with tilting the heavy table, making adjustments easy.

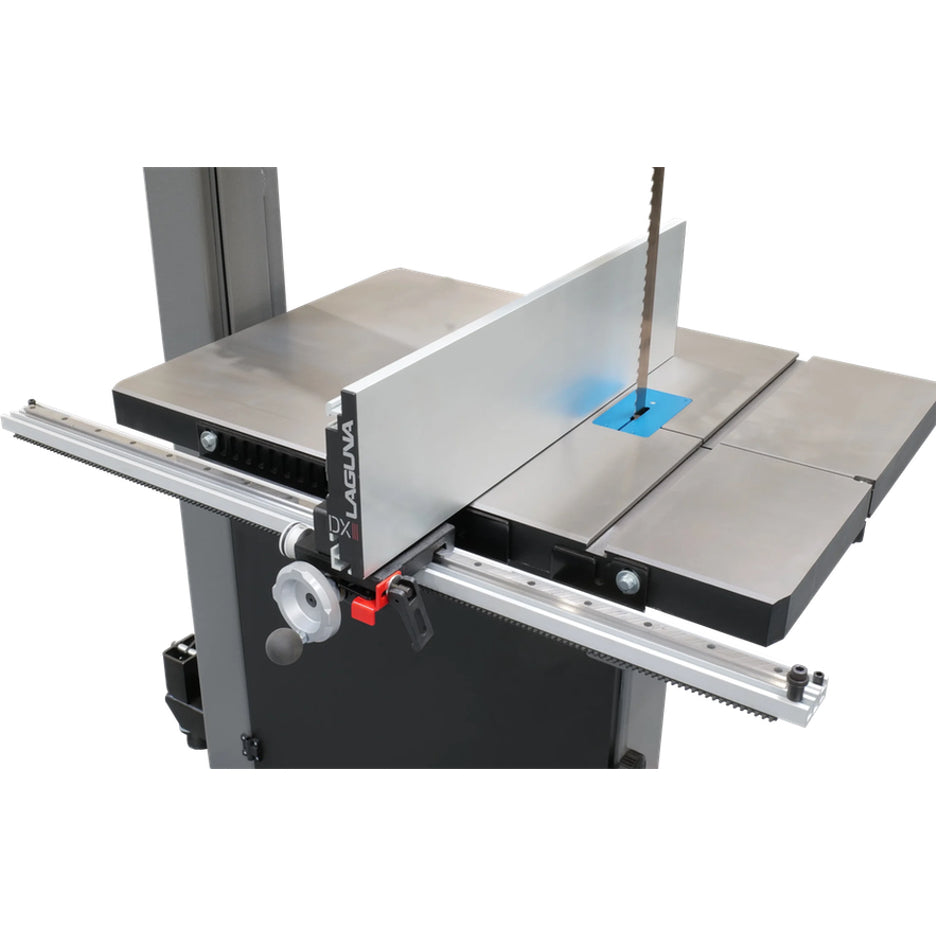

DriftMaster DX3 fence and Laguna ceramic guide system provide ideal support

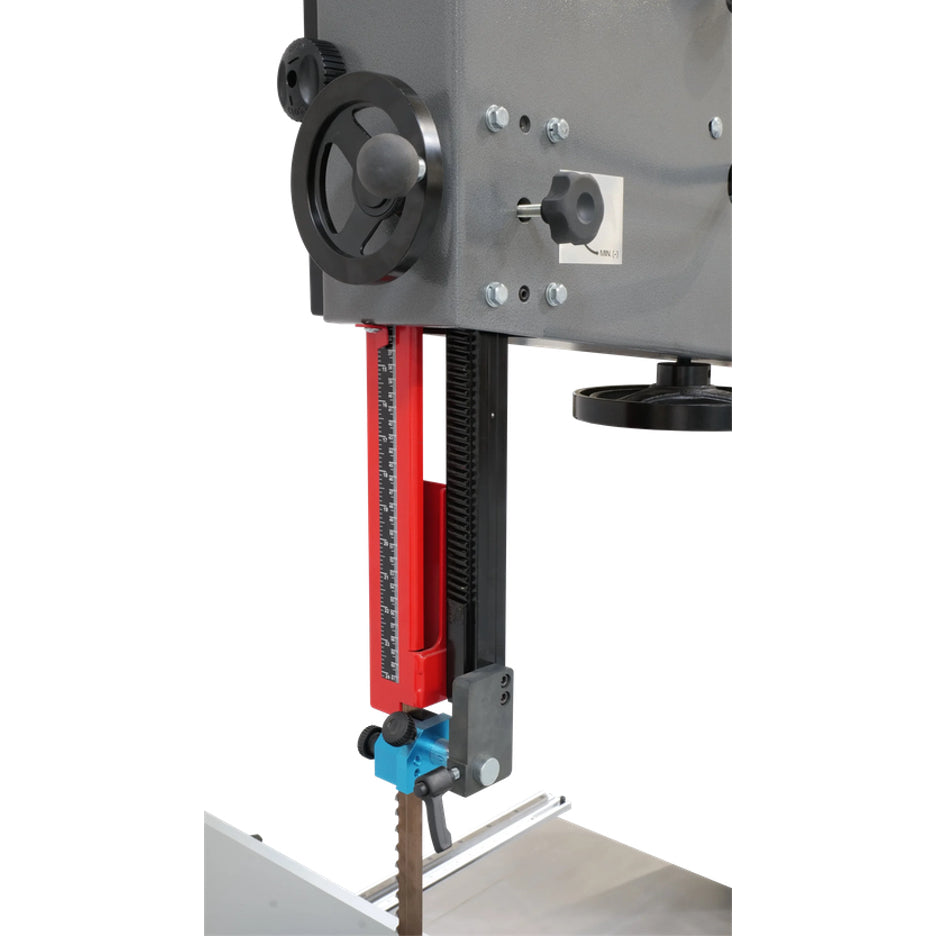

Power is nothing without control, and part of the 24|BX's premium feature list are the larger DX3 DriftMaster fence scaled up for the 24|BX and Laguna's famous 10-point ceramic guide system. The DriftMaster fence can be used in high or low position for resawing or small rip cuts, and can be move manually or precisely adjusted with the leadscrew.

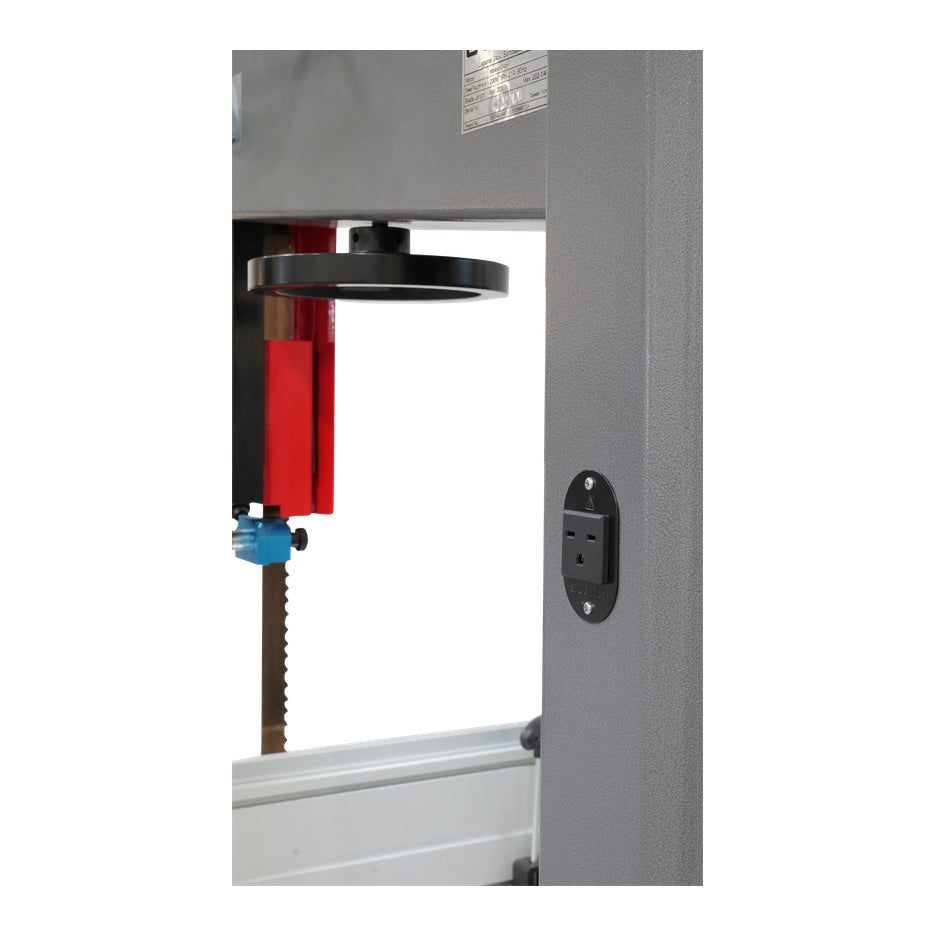

Rounding out the feature list are a pair of 4 inch dust ports to collect sawdust, a 230 volt accessory outlet on the back for worklights or other accessories, and a foot pedal that controls the disc brake and shuts off the motor for safety and productivity so you don't need to wait for the blade to coast down before retrieving small parts near the blade.
Laguna 24|BX Bandsaw 220V 24" Resaw with Driftmaster Fence DXIII MBAND24BX specifications
- 5 HP induction motor
- 220 volts
- 1-phase
- Power cord NOT included
- 24 inch resaw capacity
- 24 inch throat
- Foot pedal actuated disc brake with microswitch to shut off motor
- 24 x 34.5 inch table
- 1-1/4 inch maximum blade width
- 1/8 inch minimum blade width (required Mini Guides for blades narrower than 1/4 inch)
- 201 inch blade length (200 inches minimum, 202.5 inches maximum)
- -5 to 45 table tilt
- 38 inch table height
- 3/4 x 3/8 inch T-slot
- 20 x 33 inch base size
- 580 pounds net weight
- 91-3/8 inch height
- 93 x 45 x 32 inches shipping dimensions (L x W x H)
- 230 V accessory outlet (NEMA 6-15R)
- (2) 4 inch dust ports
- CSA Certification 256540
