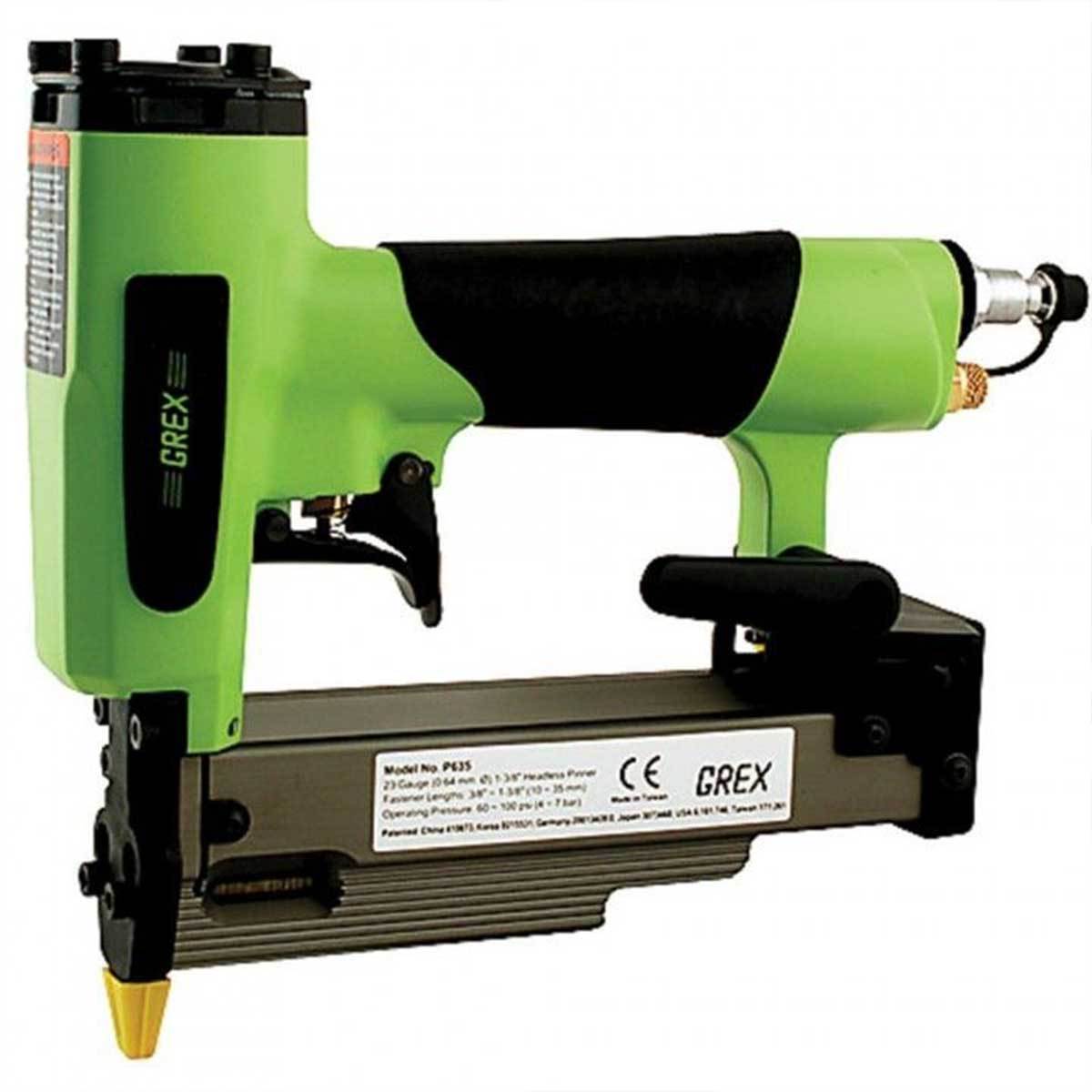

Grex Headless Pinner 23 Gauge x 1-3/8 Inch P635

Save 10%
GrexSKU: GR-P635

Sale price$265.49 Regular price$294.99


The only industrial strength pinner offering an adjust-free magazine and a fastener range up to 1-3/8". Designed ideally for finishing and detailed woodworking, the GREX P635 possesses an innovative and patented magazine that eliminates the need to adjust for different fastener lengths.


  • Powerful motor penetrates fasteners through the hardest materials.
  • Compact and lightweight design for improved maneuverability.
  • Shoots fasteners up to 1-3/8" length easily, even in hardwoods.
  • Patented design eliminates need to adjust for different fastener lengths.
  • Double trigger safety prevents accidental firing of tool.
  • Side loading with mechanism to prevent fasteners from tumbling.
  • Narrow nose reaches tight areas and corners for detailed trim work.
  • Removable nose cover provides easy access for clearing jams.
  • Removable no-mar tip prevents marring of work surface.
  • Rear exhaust with built-in silencer to reduce exhaust sound.
  • Fastener indicator to see when reloading is necessary.
  • Convenient belt hook for easy carrying of tool.
  • Quick access magazine storage for wrench and no-mar rubber tip.


  • Dimensions: 7.75"L x 7.5"H x 2"W (20cm x 19cm x 5cm)
  • Weight: 2.21 lbs. (1 kgs.)
  • Operating pressure: 60 ~ 100 psi (4 ~ 7 bars)
  • Fastener type: 23 Gauge Headless Pins
  • Fastener range: 3/8" ~ 1-3/8" (10mm ~ 35mm) except 1-1/4" (32mm)
  • Fastener capacity: 1 strip (approx. 100 pins)
  • Air inlet: 1/4" (6mm) NPT male plug


  • Light wood assembly
  • Finish and trim work
  • Molding and decorative trim
  • Dowel and joint pinning
  • Mirror and picture frame assembly
  • Lightweight paneling
  • External softwood trim
  • Rattan furniture
  • Glazing strips
  • Craft work
  • Window beading
  • Display and sign work
