FS Tool 1/2 x 1-1/4 Inch XLC-Coated Finishing Up-Cut Spiral Router Bit RSF2020XLC-U2

FS Tools’ finishing up-cut spiral router bits are ideal for CNC routers, producing exceptionally smooth cuts without any chipping, fuzz, or tear-out on the bottom surface. Further, the upward cutting action delivers unmatched chip extraction for clean machining and less heat build-up for longer tool life.

Each bit is made of special submicron, extended life carbide, then the flutes are precision-ground and semi-polished for excellent performance. The 30-degree helix design allows these bits to plunge with ease.

FS Tools XLC coating provides longer life and can be resharpened

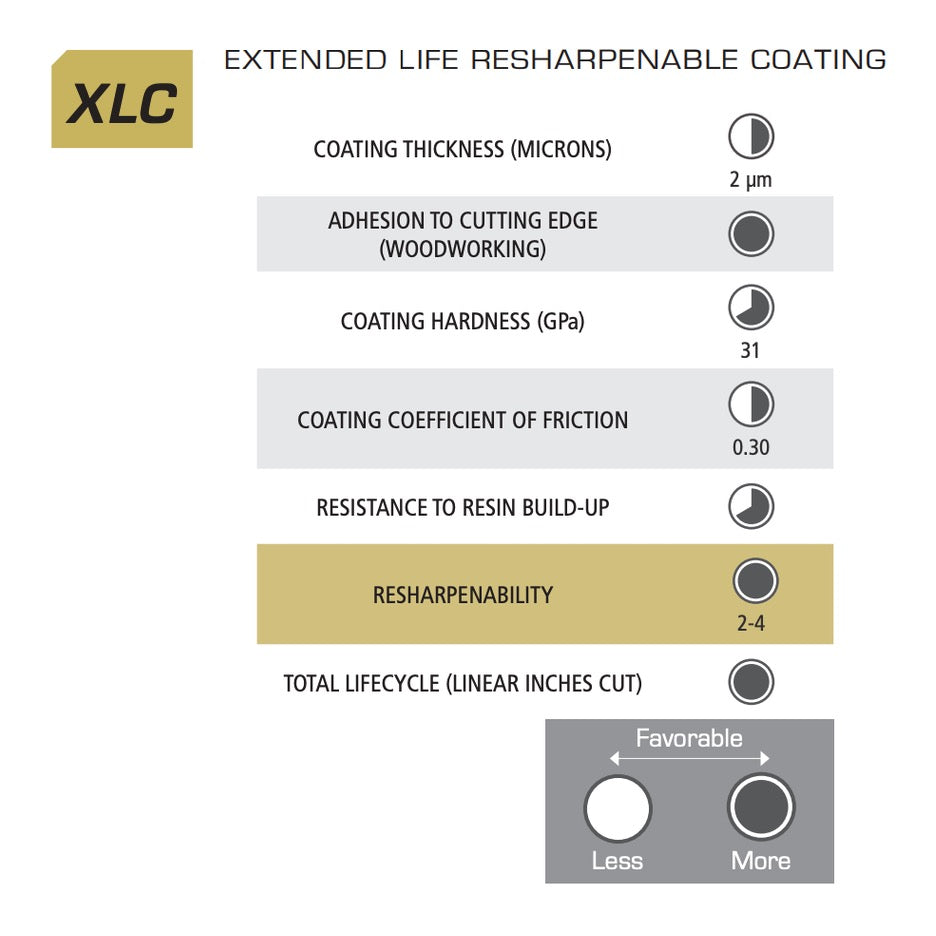

The Extended Life Resharpenable Coating (XLC) by FS Tool is a special coating that provides significantly longer tool life through increased hardness and resistance to resin build-up, and lower friction. Further, the tool can be resharpened 2-4 times.

• 2 micron thickness
• Excellent adhesion to cutting edge
• 31 GPa hardness


FS Tool 1/2 x 1-1/4 Inch XLC-Coated Finishing Up-Cut Spiral Router Bit RSF2020XLC-U2 specifications

• Upcut
• 1/2 inch cutting diameter
• 1-1/4 inch cut length
• 3 inch overall length
• 1/2 inch shank
• 30 degree helix design
• Bottom cutting capability
• Semi-polished flutes
• Submicron carbide

Image is not an exact representation of this router bit.
