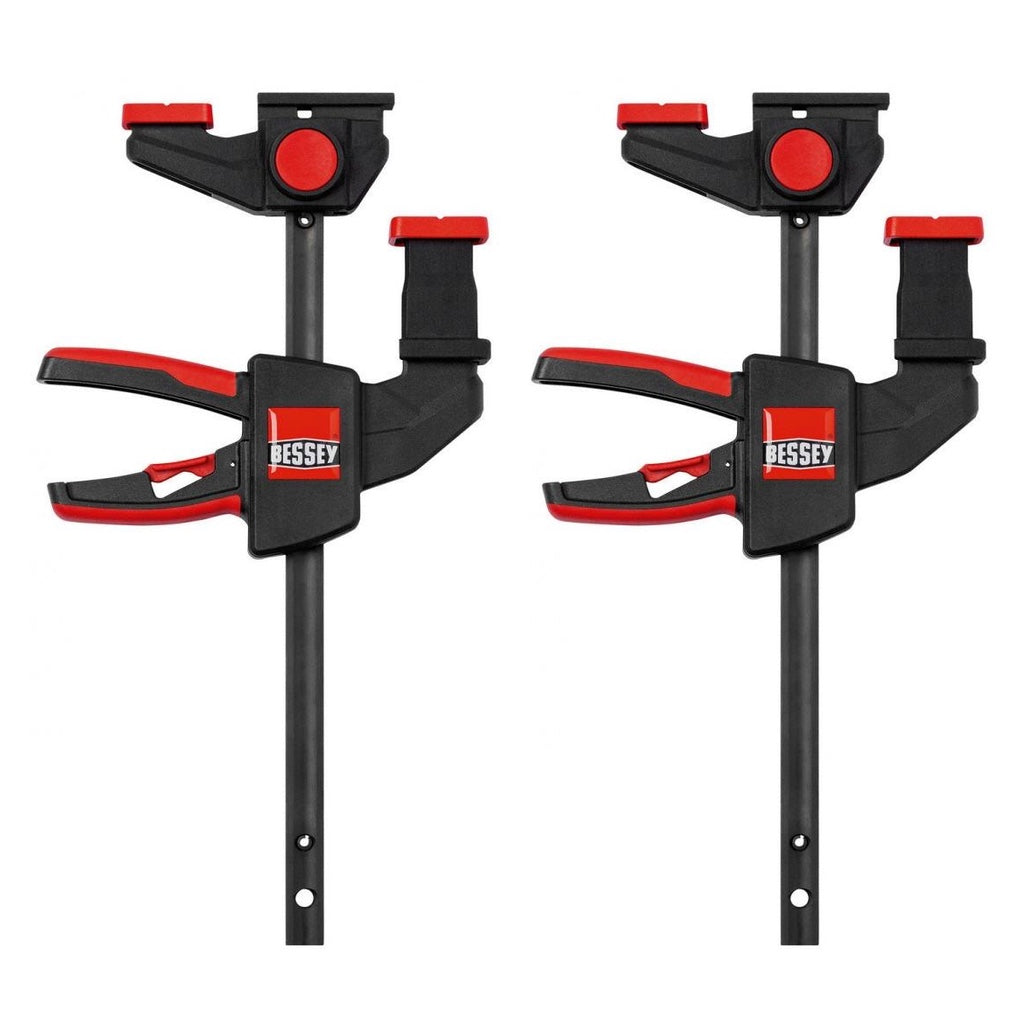

This clamp has all the features of Bessey's other Quick-Action Clamps with the addition of a T profile built into the edge of the removable jaw, allowing the clamp to slide into T-slots.
11.8 x 9.6 millimetre T-profile
The built-in T-profile of the removable jaw fits into 12 millimetre grooves from 6.5 to 8 millimetres deep. This includes track saw guide rails made by Festool, Protool, Metabo, Makita, Hitachi/Hikoki, DeWalt, and others. It also fits T-slots in many workbenches, MFT-type tables and jigs.
Stepover adapter
Attach the included 2 inch adapter to either jaw for step-over clamping if there is a lip or obstruction.
Spread or clamp
Switching from clamping to spreading is fast and easy thanks to the large release button.
Soft touch pads with cross grooves
The soft pads apply even clamping pressure and avoid marking the workpiece. The prism cross pattern in the face facilitates clamping of round, pointed, and angled workpieces.
Strength and ergonomics
The profiled clamping rail allows up to 100 pounds of clamping force, and ergonomic composite handle with trigger allows a powerful clamping pressure.
Each clamp is made with the highest quality materials for precision, durability and strength. 6 inch clamping capacity and 4-3/4 to 12 inch spreading capacity with a 2-3/8 inch throat. 1.37 pounds.

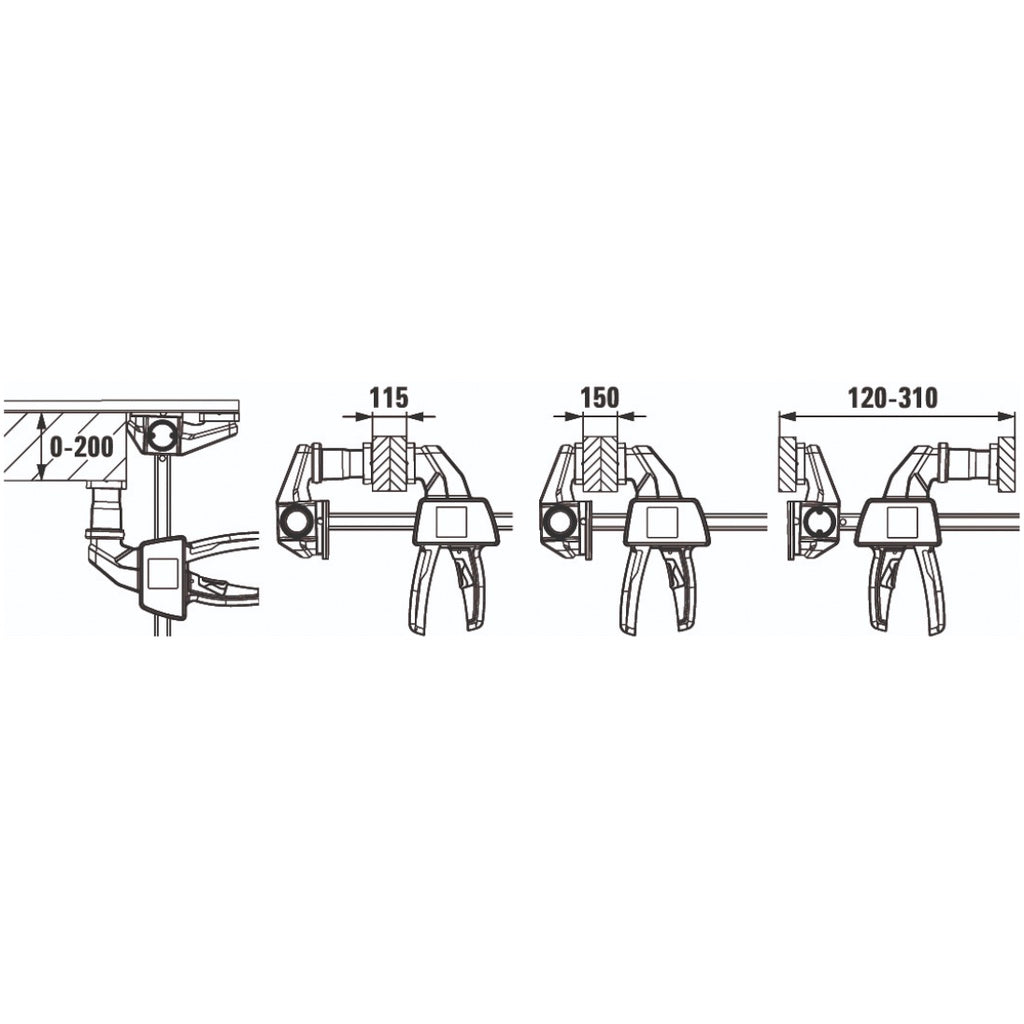

Specifications
- 0 to 150 millimetre (0 to 5.9 inch) clamping capacity
- 0 to 115 millimetre (0 to 4.5 inch) clamping capacity with stepover adapter
- 120 to 310 millimetre (4.7 to 12.2 inch) spreading capacity
- 0 to 200 millimetre (0 to 7.9 inch) clamping capacity when attached to T-slot
- Up to 100 pounds (45.4 kilograms) clamping force
