Axiom Pro V6 Series 24 x 36 Inch AR6ProV6

Axiom PrecisionSKU: AX-AR6ProV6

Sale price$11,999.00


Machines are shipped directly to the customer from the Axiom warehouse. You will be contacted with the shipping costs to ship to you.

Available for purchase in-store or over the phone.

To place an order please call us at 604-291-9663 for pricing, shipping costs and availability.

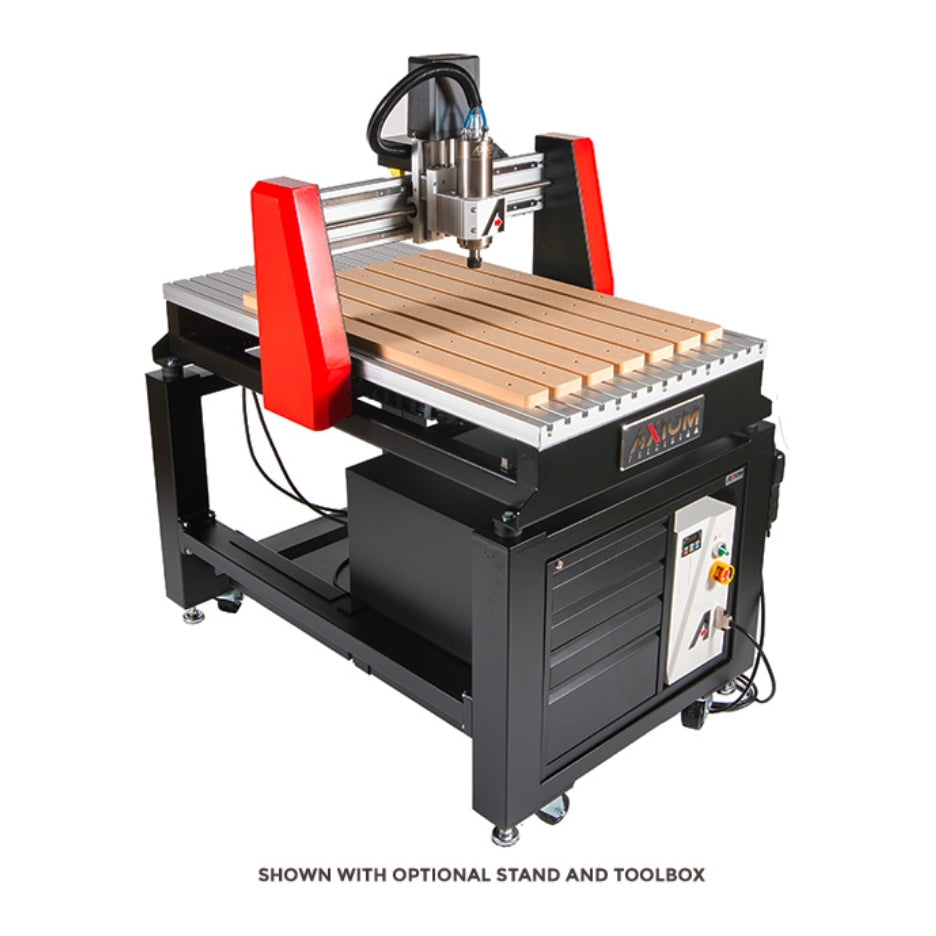

The latest Axiom Precision AutoRoute Pro V6 Series of CNC routers maintains the beloved features of Axiom's Pro series while enhancing performance with 48V stepper motors for increased holding torque, an upgraded cooling system, and superior spindle performance courtesy of an advanced VFD upgrade.

Introducing the Enhanced Pro V6 Series: Elevating Efficiency and Performance in CNC Routers

The Pro V6 showcases a fresh aesthetic and is now stronger, faster, and easier to maintain than ever before.

Incorporating 4-axis functionality, potent electro spindle capabilities, and rotary machining adaptability, the revamped Pro series delivers within a compact industrial framework.

Featuring a generous 6.5 inches of gantry clearance and a quiet yet powerful 3HP electro-spindle equipped with an integrated liquid cooling system, the Pro V6 series CNC routers stand at the forefront of efficiency and performance.

Efficiency and Precision Redefined: Discover the Axiom Pro V6 Series CNC Routers

Every machine in the Pro series comes prewired for seamless integration with our optional Rotary Kit and the optional ALKV6-42 laser. The Axiom AutoRoute Pro V6 Series CNC routers are equipped with precision ball screws, prismatic guides, a sturdy steel frame, and an interlocking aluminum table.

In addition, the integrated MDF spoil boards ensure precise results, as they can be effortlessly milled flat to maintain a true perpendicular surface to the spindle.

Operating your CNC router without connecting it to your computer is hassle-free. Just transfer your file to the handheld controller using a USB storage device. The RichAuto B18 controller, lightweight and powerful, offers a decade of proven performance in demanding applications, making it effortless to operate.

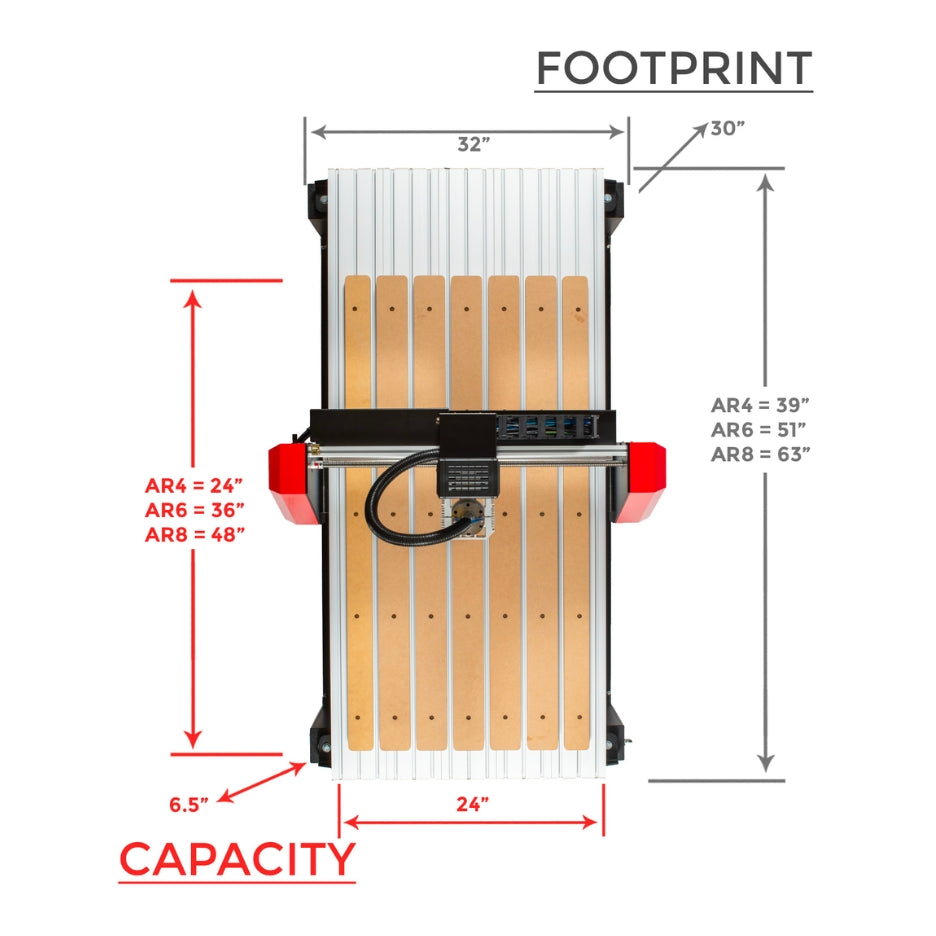

X axis travel 24" (610mm)
Y axis travel 35.82 (910mm)
Z axis travel 5.9" (150mm)
C axis travel 360deg
Table work area 28.4" x 51"
Spindle Configuration ER20
Included Collets 1/4" & 1/2"
Electro Spindle 2.2KW
Spindle speed 0~24000 RPM
Rapid shuttle speed 300 IPM (5 MPM)
Precision Linear Guideway X/Y/Z
Precision Ball Screw X/Y/Z
Ball Screw Diameter 16mm
Resolution +/- .00393" (0.10mm)
Power requirements 220 V,50~60 Hz, 10A, 1-Phase
Working Table High rigidity Aluminum Extrusion
Gantry bridge High rigidity Aluminum Extrusion
Gantry Supports Aluminum alloy gravity cast
Gantry Clearance (from table) 6.5" (165.1mm)
Gantry Clearance (from mdf spoil board) 5.5" (139.7mm)
Machine Base All Welded Steel
Frame Machine Dimensions 51.18"L x 37.36"W x 30.27"H
Shipping Dimensions 53"L x 39"W x 33"H
Shipping Weight 360 lbs
Tool Touch-Off Device Included
Onboard Cooling System Included
Pre-wired for ALKV6-42 laser Included
Controller Richauto B18 DSP 4-Axis Controller
CNC motion control system
USB port for easy file transfer.
Language Support English / Chinese
