Description
Designed for chip-free cuts in double-sided melamine and veneered sheet goods on saws without a scoring unit. The H-ATB tooth geometry slices cleanly through fragile coatings and laminates. The high bevel will not "violate" the bottom laminate upon exiting the cut, which causes "blow-out". Thin kerf blades reduce waste in expensive materials and require less horsepower to operate. Extra hard sub-micrograin carbide tips for long life.

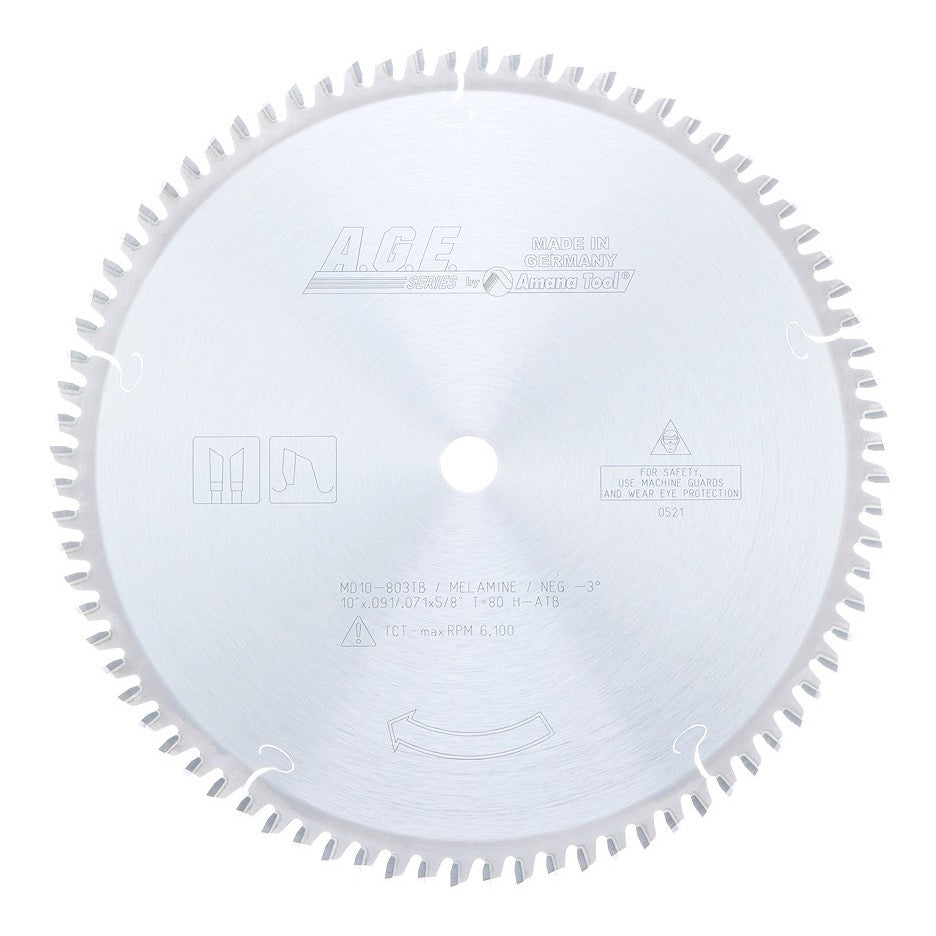

Amana Tool Thin Kerf Melamine Circular Saw Blade 10 Inch x 80T High-ATB with 5/8 Inch Bore MD10-803TB specifications
| (D) Diameter | 10 (254mm) |
|---|---|
| Teeth | 80 |
| (d) Bore | 5/8 |
| Hook Angle | -3° |
| Kerf (B) | .091 (2.3mm) |
| Max RPM | 6,100 |
| Grind | H-ATB |
| Plate (C) | .071 (1.8mm) |
