Description
Dadoes (cross-grain cuts) and grooves (cuts with the grain) are cut efficiently on the table saw with a dado stack set. Unlike a wobbler, a stack set produces a flat-bottom cut with chip-free edges. Amana Tool® makes dado stack sets for every machine and every type of woodworking material. The standard width capacity ranges from 1/4" to 13/16". Additional chippers may be purchased separately to expand the capacity beyond 13/16". The standard set, regardless of diameter or tooth count, consists of two outside saw blades and four inside chippers. The outside blades feature hollow-ground plates for proper clearance, and alternate top bevel (ATB) grind with every sixth tooth flat ground (FT).
For plywood and melamine, the sets with 46-tooth outside blades are recommended.
Teeth refers to the number of teeth for each outside saw blade.

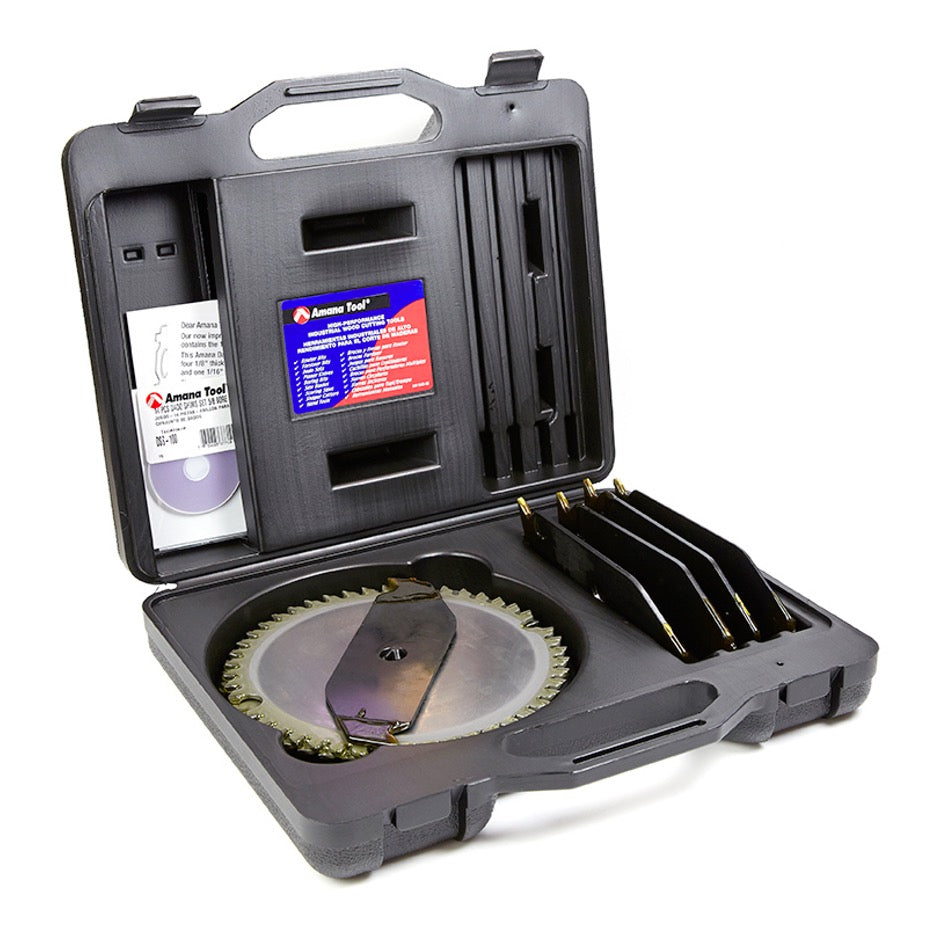

Amana Tool Dado Blade Set 8 Inch x 46T ATB/FT with 5/8 Inch Bore 658040 specifications
| (D) Diameter | 8 (200mm) |
|---|---|
| Teeth | 46 |
| (d) Bore | 5/8 |
| Tooth Grind | ATB/FT |
| Hook Angle | -5° |
| Kerf (B) | 1/4 - 13/16 |
| Description | (5) 2-Wing Chippers |
