Description
Drill pilot hole and tapered countersink for wood screws. The 2-flute integral design ensures uniform concentric results each and every time. Carbide tipped for long lasting results in hardwood, plywood, plastics, etc.
Excellent for Drilling:
- Natural Woods
- Man-Made Boards
- MDF
- Chipboard
- Plywood
- Aluminum/Non-Ferrous
- Aluminum Composite Material (ACM)
- Composites
- Composite Decking Materials
- High Density Polyethylene (HDPE)
Warning: When drilling aluminum/non-ferrous materials, for optimal results and extended tool life use lubricant or air cooling. Make sure the material is fixed and drill is stable during drilling.

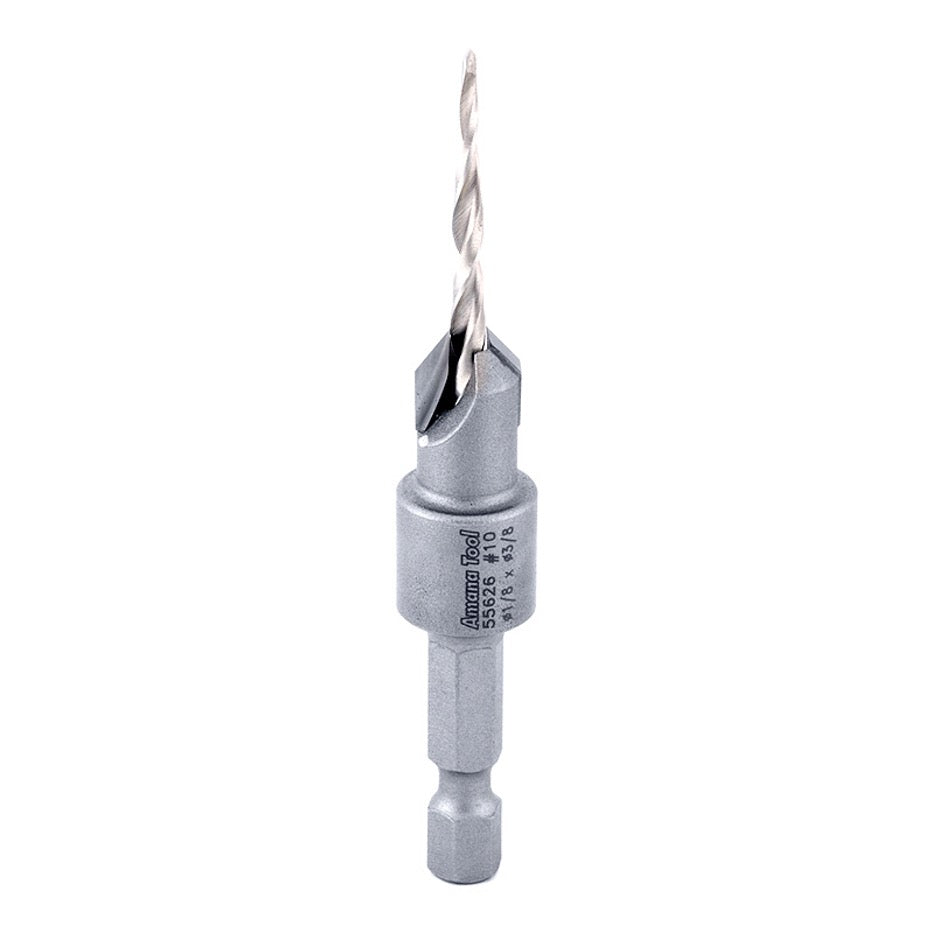

Amana Tool D 3/8 Inch x 82 Degree Carbide Countersink with Tapered 1/8 Inch Pilot 55626 specifications
| (a°) Angle | 49° |
|---|---|
| (D) Diameter | 3/8 |
| (d) Shank | 1/4 |
| Overall Length (L) | 2-1/8 |
| Wood Screw Size | #10 |
| D1 | 1/8 |
| Replacement Drill | 630-266 |
