Description

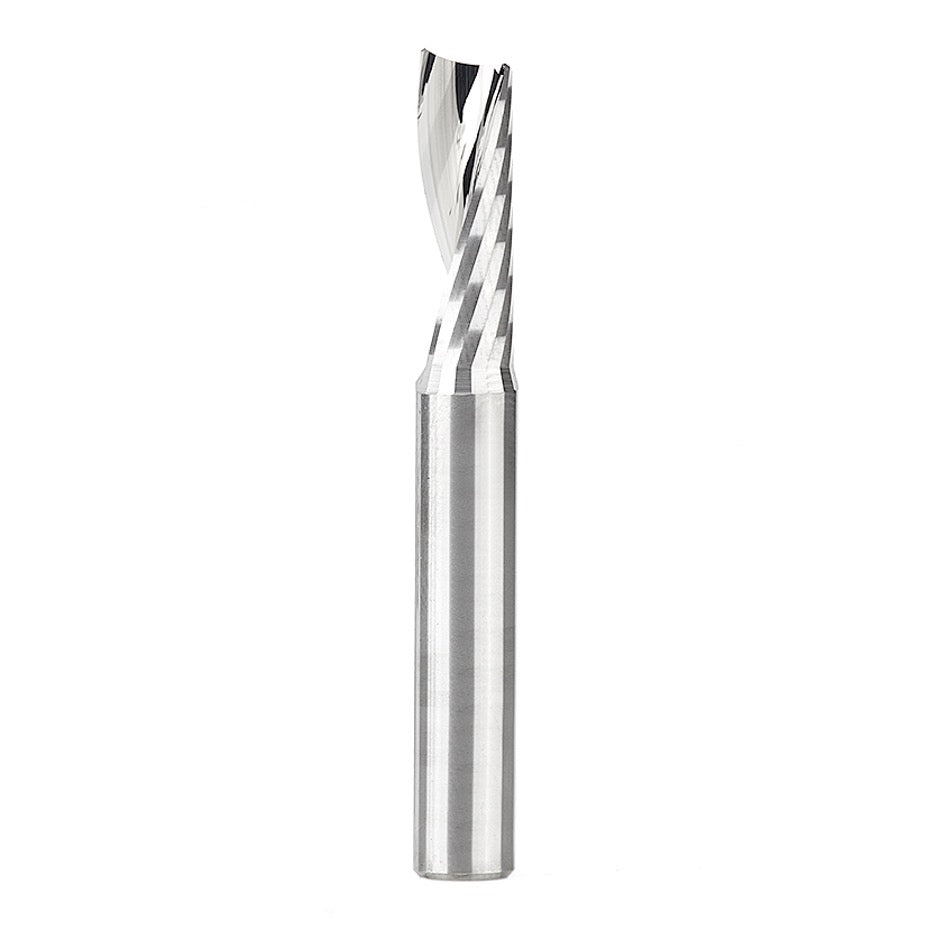

Amana Tool D 1/4 Inch O-Flute Upcut Spiral Router Bit for Plastic is to be used only on CNC machines and routers with automatic feeding.
Produce super clean, smooth cuts especially in acrylic materials (Plexiglas® Lucite®) other plastics and wood. Bits are made according to strict tolerances from an exclusive carbide grade and polished to a mirror finish using Amana’s unique process. Designed to eject chips up. Ideal for industrial applications and CNC machines. Right hand helix right hand cut.
Excellent for cutting:
- Plastic/Acrylic
- Acetal and Nylon
- Acrylic Stone
- Acrylonitrile Butadiene Styrene (ABS)
- Aluminum Composite Material (ACM)
- Alupanel
- Corian
- Coroplast
- Corrugated Plastics such as Correx Boards and Polypropylene
- Crosslinked Polyethylene (XPE, PEX, XLPE)
- Delrin
- Dibond
- Extruded Acrylic
- Foam Board
- Fomex
- Gatorfoam
- Hard Plastic
- High Density Polyethylene (HDPE)
- High Density Urethane (HDU Board)
- High Impact Polystyrene (HIPS)
- High Impact Polystyrene (HIPS) for digital printing
- High Pressure Laminates (HPL)
- Hydroxy-Terminated Polyether (HTPE)
- King ColorCore The Multi-Color Engravable Polymer Sheet.
- Laminate
- Low Density Polyethylene (LDPE)
- LubX
- Lucite
- Mechanical/Engineered Plastics
- Perspex Cast Acrylic Sheet
- Plexiglas
- Poly (methyl methacrylate) (PMMA)
- Polycarbonate (Lexan)
- Polyethylene Terephthalate Glycol-Modified (PETG / PET-G)
- Polyoxymethylene (POM), also known as Acetal, Polyacetal and Polyformaldehyde.
- Polystyrene (PS)
- PVC
- Sign Foam
- Sintra PVC
- Solid Surface
- StarBoard® (King StarBoard 'R') High Density Polyethylene Sheet (HDPE)
- Teflon
- Thermoplastic Polyolefin (TPO)
- Trespa Meteon
- Ultra High Molecular Weight Polyethylene (UHMWPE)
- Urethane
- Vinyl Flooring
- Wood
- Razor sharp cutting edge
- Effortless chip removal
- Helps prevent chip re-welding
- Extends tool life
- Exceptional cut quality
- Dissipates heat well and prevents melting
Maximum RPM: 35,000. Use the slowest suggested feed rates and the shortest bits necessary for cutting and routing Lexan™.
Amana Tool D 1/4 Inch O-Flute Upcut Spiral Router Bit for Plastic 51404 specifications
- 1/4 inch diameter
- 3/4 inch cutting height
- 1/4 inch shank
- 2 inch overall length
- 1 flute
