Description
Amana Tool Corp offers metric and inches High Precision CNC Spring Collets in ER and RDO Styles. All spring collets are inspected for quality & 100% accuracy. Standard 0.0004" T.I.R.
The high precision spring collets allow to reduce the vibrations on the tools and motors, assure better results and prolong the life of the tools and electrospindles. Our high precision spring collets used on our high precision toolholders give you the very best tool performance.

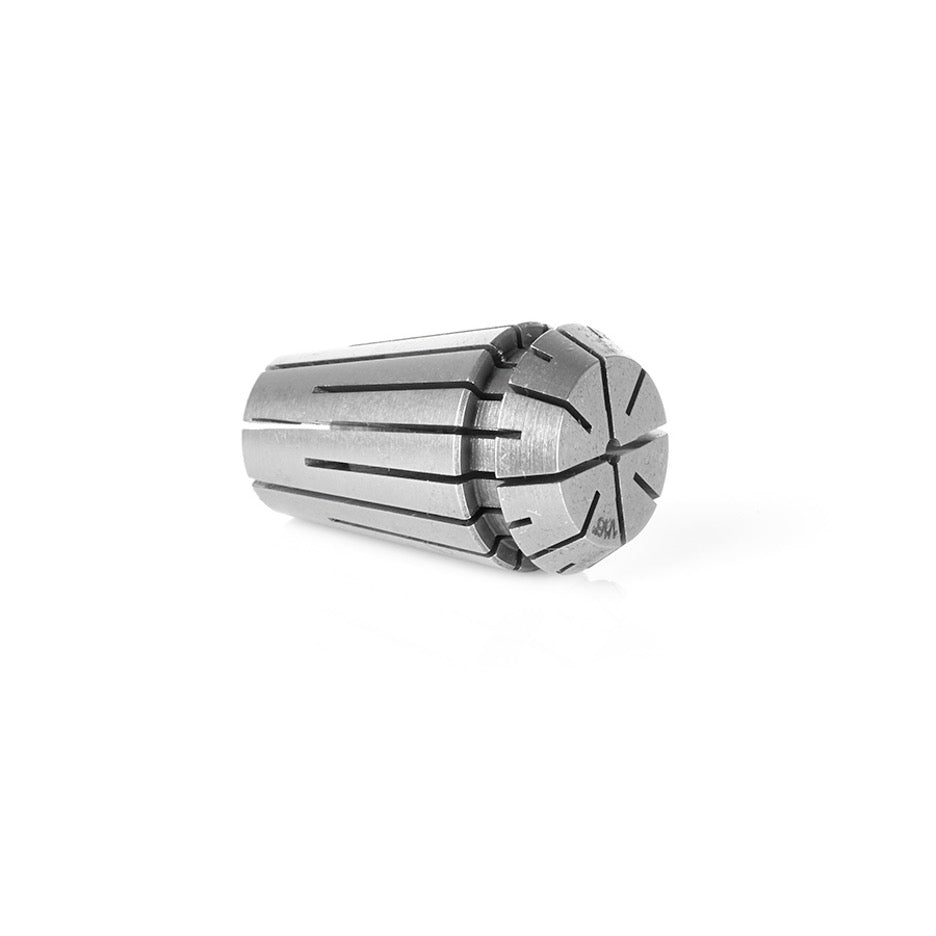

Amana Tool D 1/16 Inch Spring Collet for ER16 Tool Holder CO-290 specifications
| (D) Diameter | 16.6mm |
|---|---|
| D1 | 13mm |
| Overall Length (L) | 26mm |
| Collet Standard | ER16 |
| B | 2.7mm |
| d | 1/16 |
