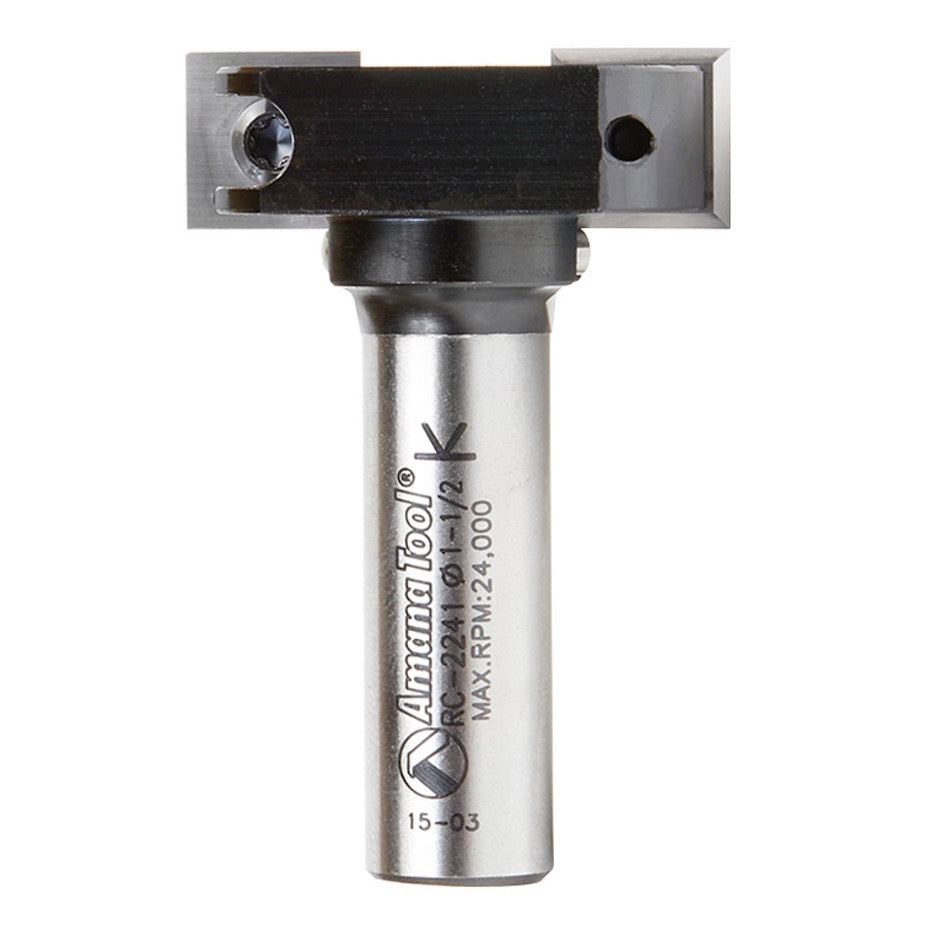

Mini insert carbide spoilboard surfacing & rabbeting router bit great for cutting tight corners and surface planing.
Also suitable for router sled machines, Make sure that your router sled is fully stable and squared.
Perfect for:
- Resurfacing spoilboards using CNC
- Planing large glued up panels using CNC
- Surfacing and finishing wood using timber slab machines
- Rabbeting or slotting
Designed for planing & rabbeting the following materials:
- MDF
- Fiberboard
- HDF/LDF
- Balsa Core*
- Epoxy (Epoxy Resins)*
- High Density Urethane (HDU Board)*
- Plastic/Acrylic*
- Plywood/Chipboard*
- Hardwood/Softwood*
- Ultra-High-Molecular-Weight Polyethylene (UHMWPE)*
*For optimal results and maximum insert life, replace inserts with optional general purpose knives #AMA-12 (sold separately).
Featuring:
- 4-sided solid carbide insert knives
- Exclusive carbide grade for highest quality of cut
- Maximum cutting efficiency
- Faster material removal process
Proper torques rating to tighten down screws is 2-3Nm Torques.
D) Diameter | 1-1/2 |
---|---|
(B) Cutting Height | 12mm (15/32) |
(d) Shank | 1/2 |
Overall Length (L) | 2-3/16 |
Max RPM | 24,000 |
Replacement Knives | HMA-12 (2) |
(A) Cut Depth | 1/4 |
