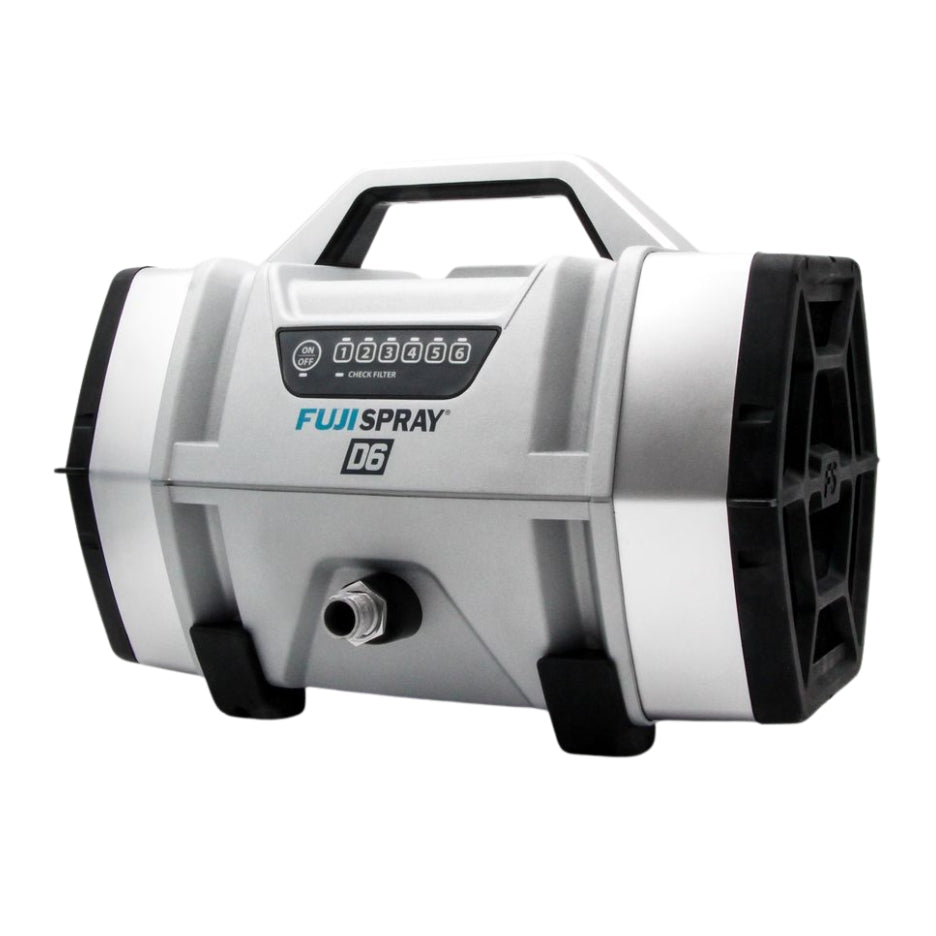

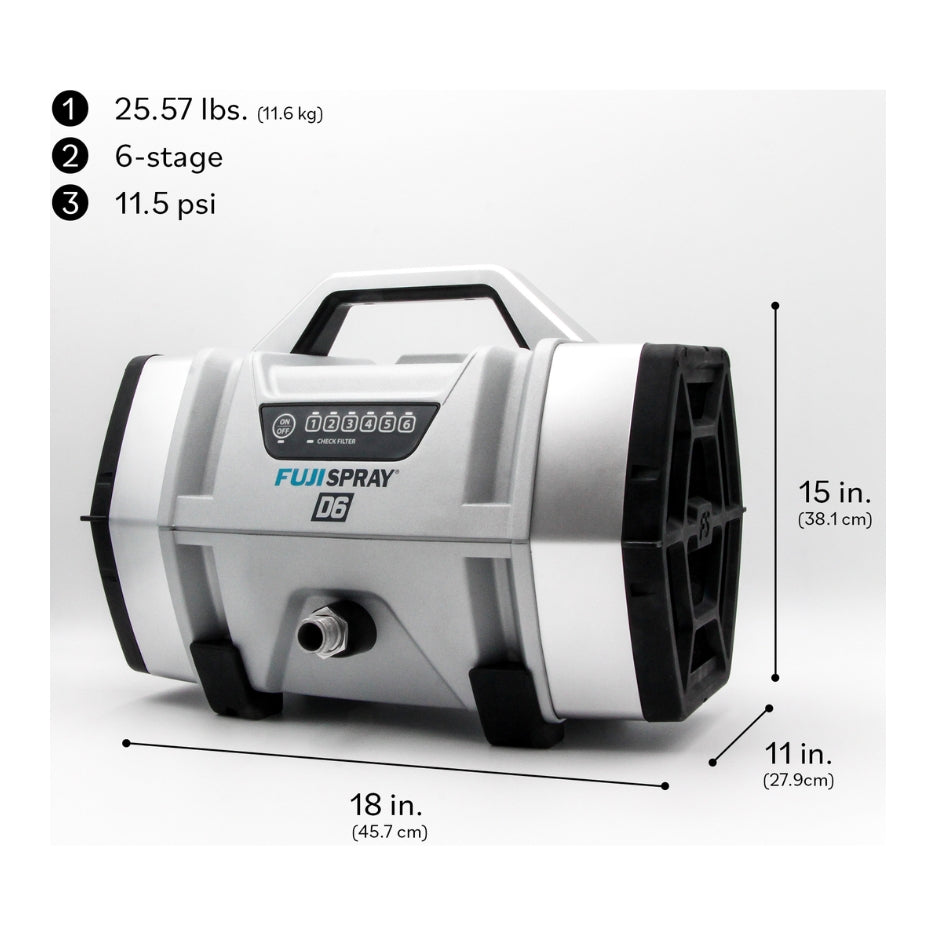

The Fuji Spray D6 6-Stage HVLP Spray System sets a new benchmark in the spray finishing industry, delivering exceptional power, control, and reliability for professional-grade results. At the heart of the system is a powerful 6-stage motor rated at 11.5 PSI, engineered to operate efficiently while running cooler to help extend motor life and maximize your return on investment.

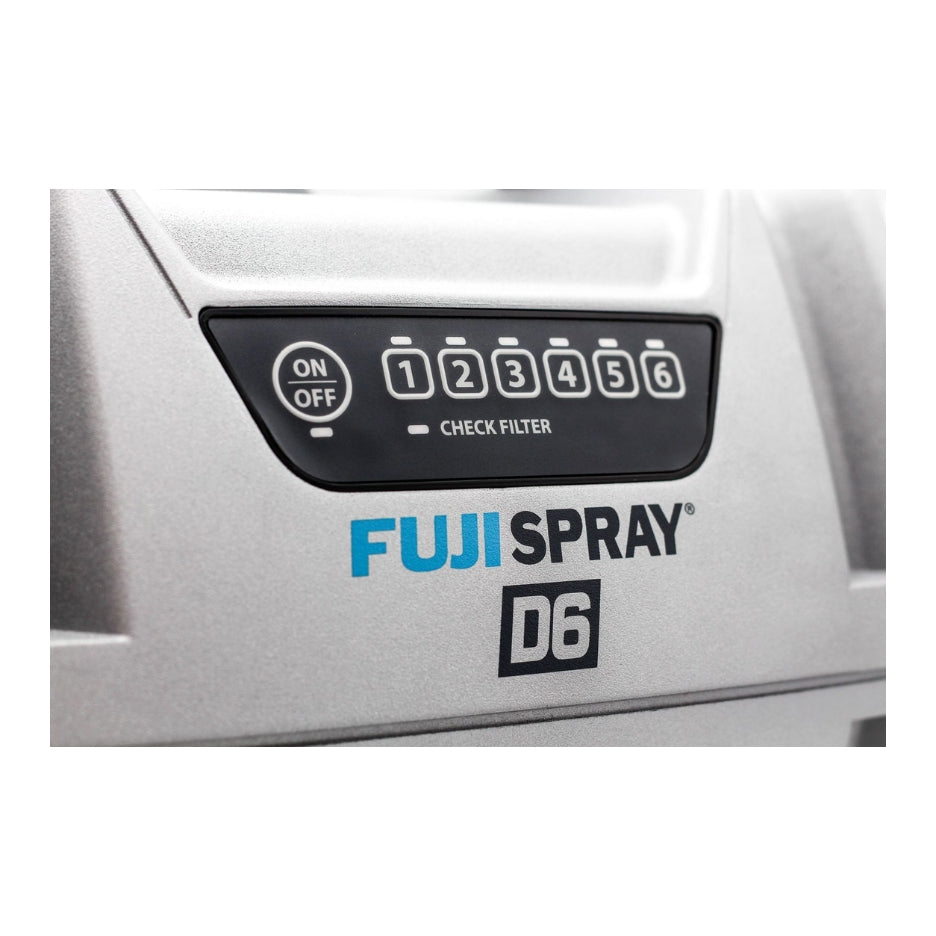

Smart select control panel for the Fuji Spray D6 6-Stage HVLP Spray System
An integrated Smart Select Control Panel provides six pre-set pressure settings, allowing precise adjustment of spray output for the task at hand. With PSI settings ranging from 3 PSI at stage one up to 11.5 PSI at stage six, the system offers excellent control that helps produce consistent finishes while minimizing overspray and material waste.

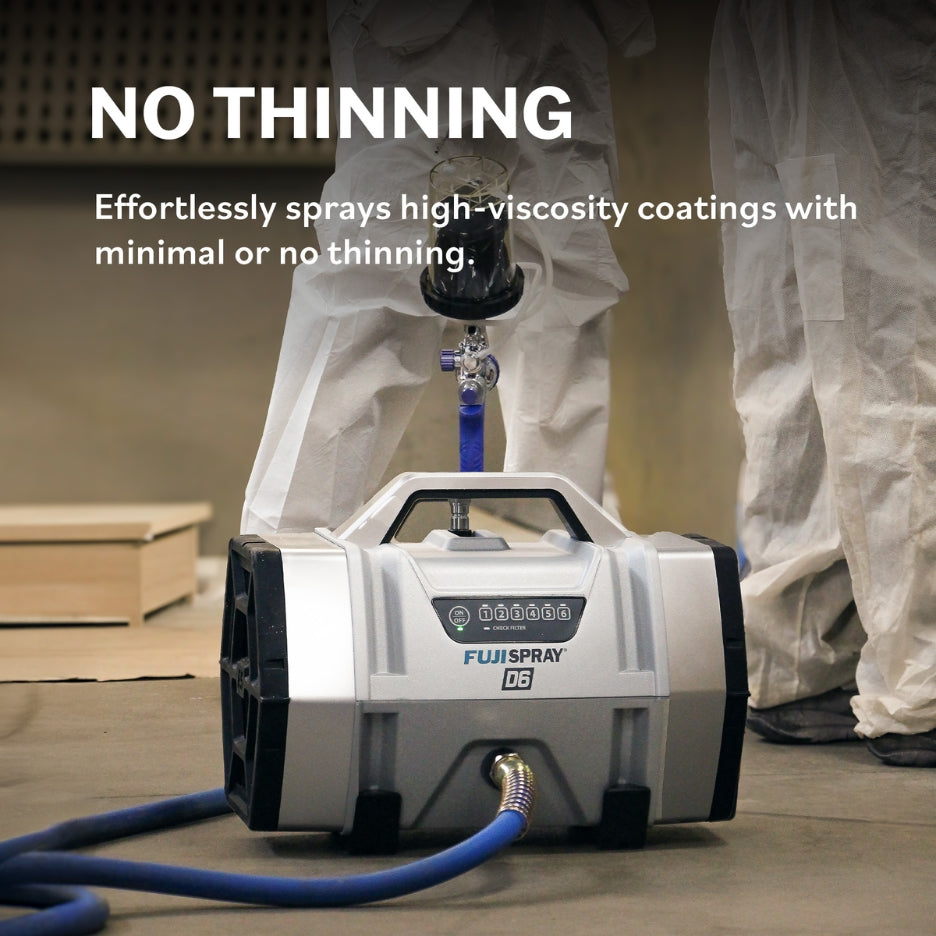

Fuji Spray D6: high-performance coating capability
Designed to handle demanding coatings, the D6 consistently delivers warm, dry air capable of atomizing even the highest-viscosity materials with virtually no thinning required. This performance results in smooth, even coverage and stunning finishes across a wide range of applications, whether you are working with waterborne or solvent-based coatings.
Durable design and reliable operation in the Fuji Spray D6 Spray System

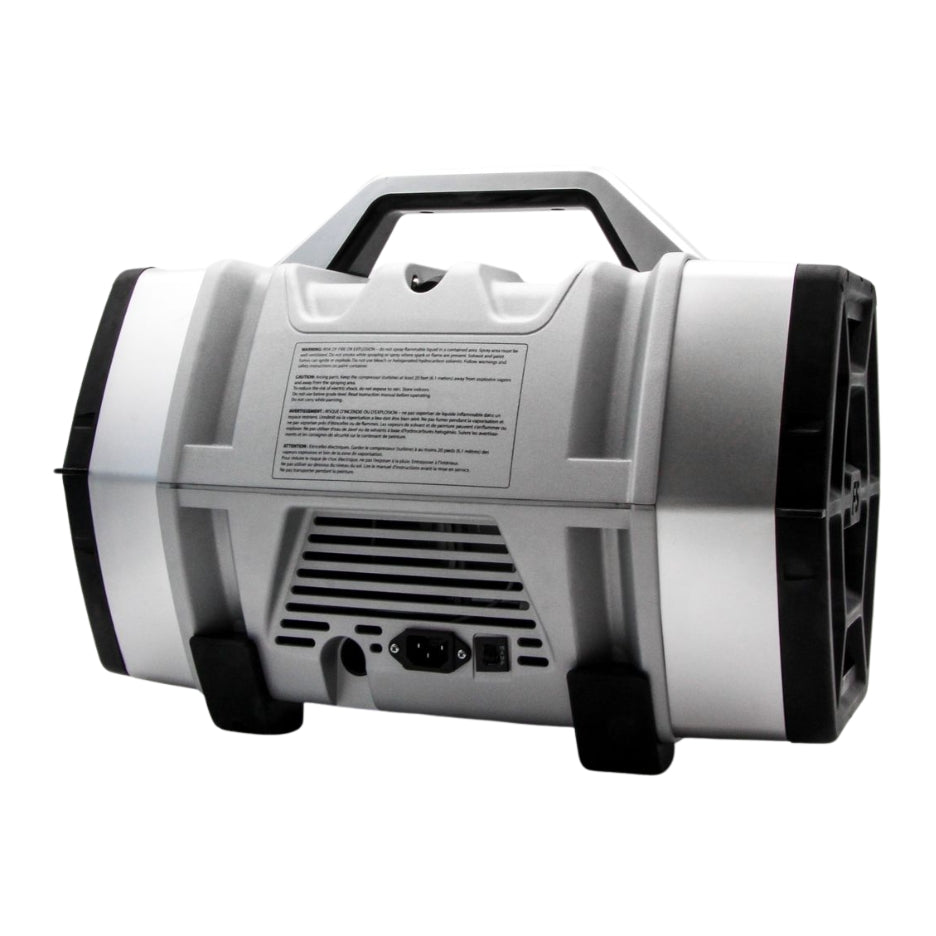

The system is built with durability in mind, featuring a rugged design that stands up to the demands of both the workshop and job site. Heat Dissipation Technology helps maintain efficient operation, while the noise-reduction case design keeps the system running more quietly during extended use. A two-stage turbo filtration system protects the motor and includes a check filter light to help ensure optimal airflow and performance.
Fuji Spray D6: workflow features and jobsite convenience

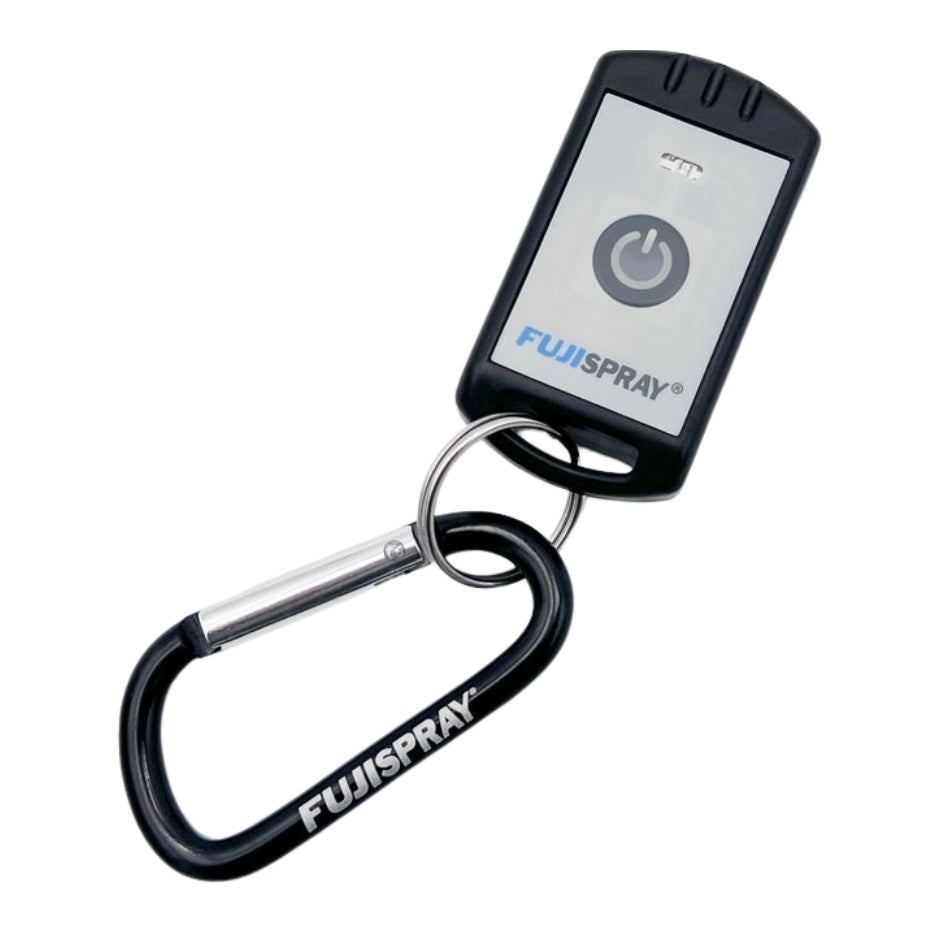

Convenience and workflow efficiency are also central to the D6 design. An Easy Pause remote control with a range of up to 75 feet allows users to stop or start the turbine without returning to the unit. A fold-away spray gun holder keeps your gun secure between passes, and the included 30-foot hose features a quick-connect fitting and air control valve for flexible setup and precise airflow adjustment.

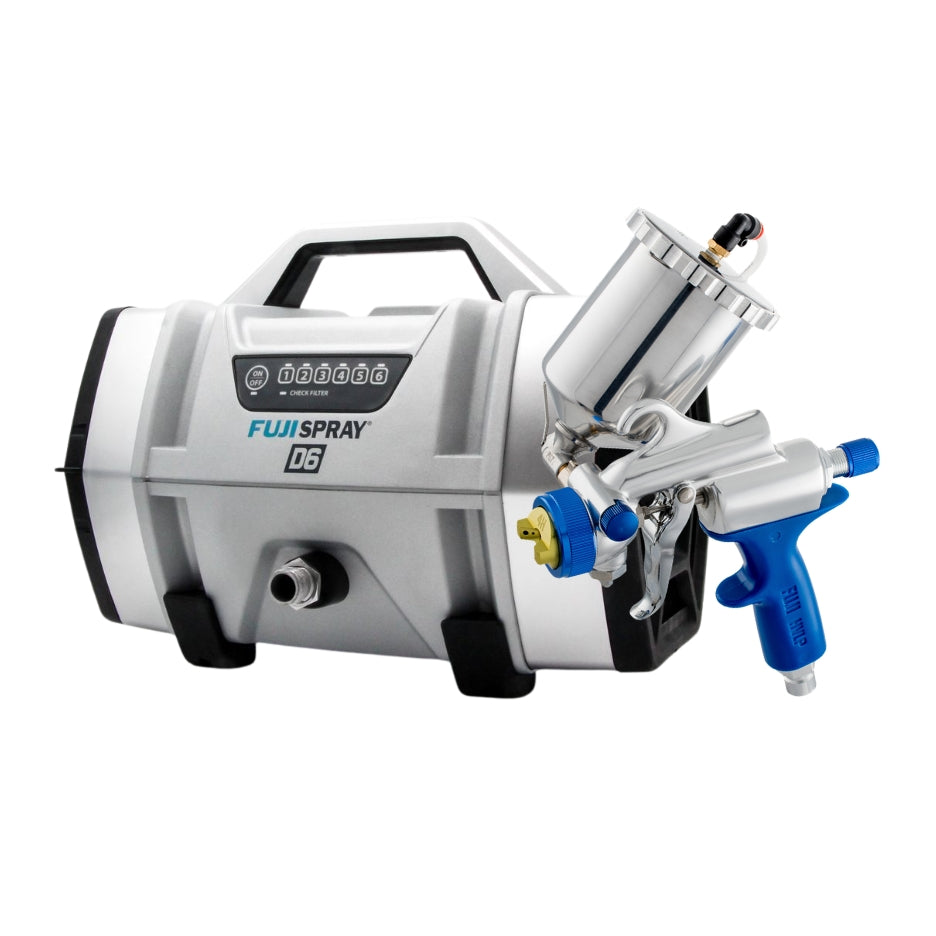

Fuji Spray D6 System with G XPC Gravity Spray Gun
This version of the system features the G XPC Gravity Spray Gun, designed for excellent control and consistent finishing results. The gun comes equipped with a 1.4 millimetre air cap set and a 400 cc aluminum cup assembly. Its side mounted gravity design promotes balanced handling and efficient material flow, while the non bleed design helps reduce turbulence in the spray area and minimizes the amount of shop dust that may be disturbed during spraying.
Precision control and flexibility with the G XPC Spray Gun
The G XPC Spray Gun also features the Swivel N’ Set cup system, allowing spraying at virtually any angle with ease. A side mounted fan pattern control provides adjustable horizontal, vertical, and circular spray orientations. The Stay Cool nylon coated handle offers a comfortable grip during extended use, and the rotating nipple assembly allows easy adjustment of the pressure tube, particularly for left handed users.

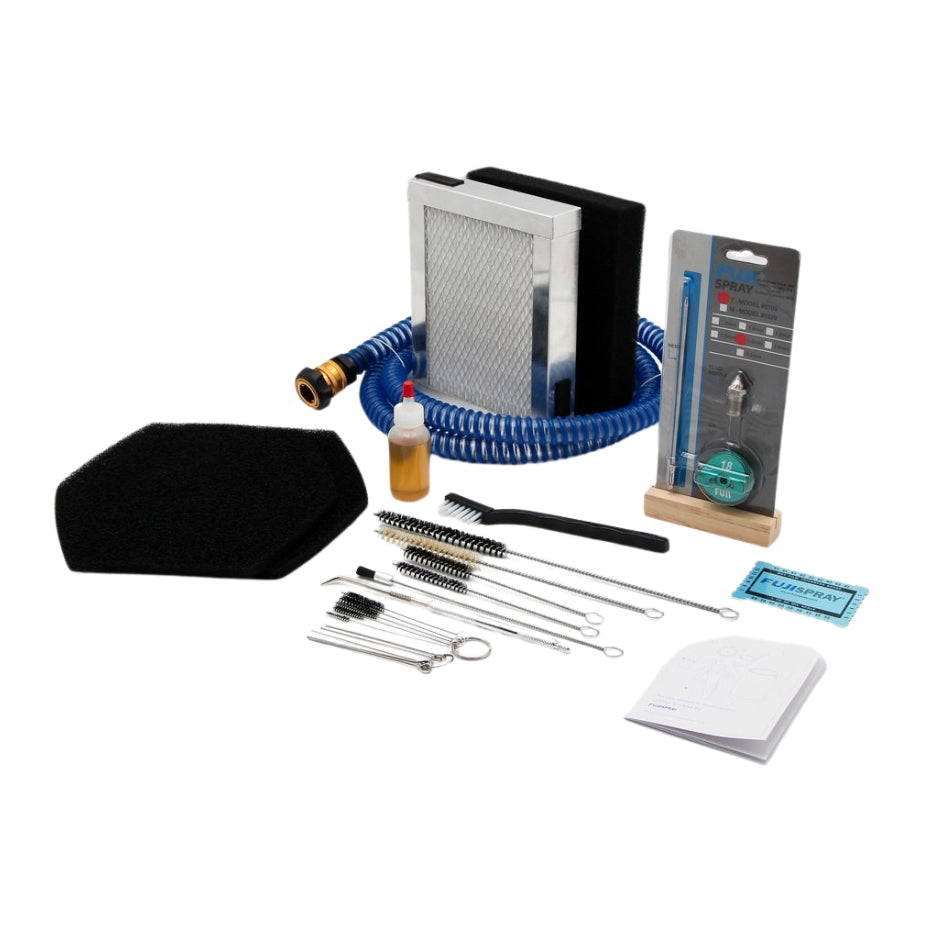

Fuji Spray D6 “6 for 6” bonus accessory package
To enhance versatility right out of the box, the system also includes Fuji’s “6 for 6” bonus accessory package. This set features a 1.8 millimetre air cap set for additional spraying capability, a 6-foot flexible whip hose for improved gun maneuverability, a replacement filter pack to maintain optimal turbine performance, a 19-piece spray gun cleaning kit for proper maintenance, a wet film gauge to help monitor coating thickness, and the “Always Measure” booklet to support consistent finishing results.
Fuji Spray D6 - G-XPC Spray System GXPC-4106 scope of delivery
- 1x D6 6-Stage HVLP Spray System
- 1x G-XPC Spray Gun
- 1x 1.8-millimetre air cap set
- 1x 6-feet flexible whip hose
- 1 Replacement filter pack
- 1x 19-piece spray gun cleaning kit
- 1x Wet film gauge
- 1x “Always Measure” booklet
