Create strong knock-down joints without the need for templates or complex measuring.
- Requires Domino XL Joiner DF 700 and 14 mm cutter.
- Once installed, only requires a hex key to assemble or disassemble.
- Use caps to cover hardware where it may be visible.
- Now available in Canada, this system of knock-down hardware is simple to install using the Festool Domino DF700 and allows connections to be made or disassembled quickly and easily with just an allen key.
- Three different styles of connectors allow the hardware to be placed in different orientations for creating flat or corner joints.
- Ideal for apron to leg joints in a table, or anywhere else a strong joint is required.
- Also available as a set conveniently packed in a SYS2 Systainer.
- Caps available separately to conceal connectors.
Components available separately.
Use Extension Shells on Cross Anchors to increase surface area for better pressure distribution and increased pull-out strength when used in weaker materials such as MDF and particleboard.
Components and Their Functions

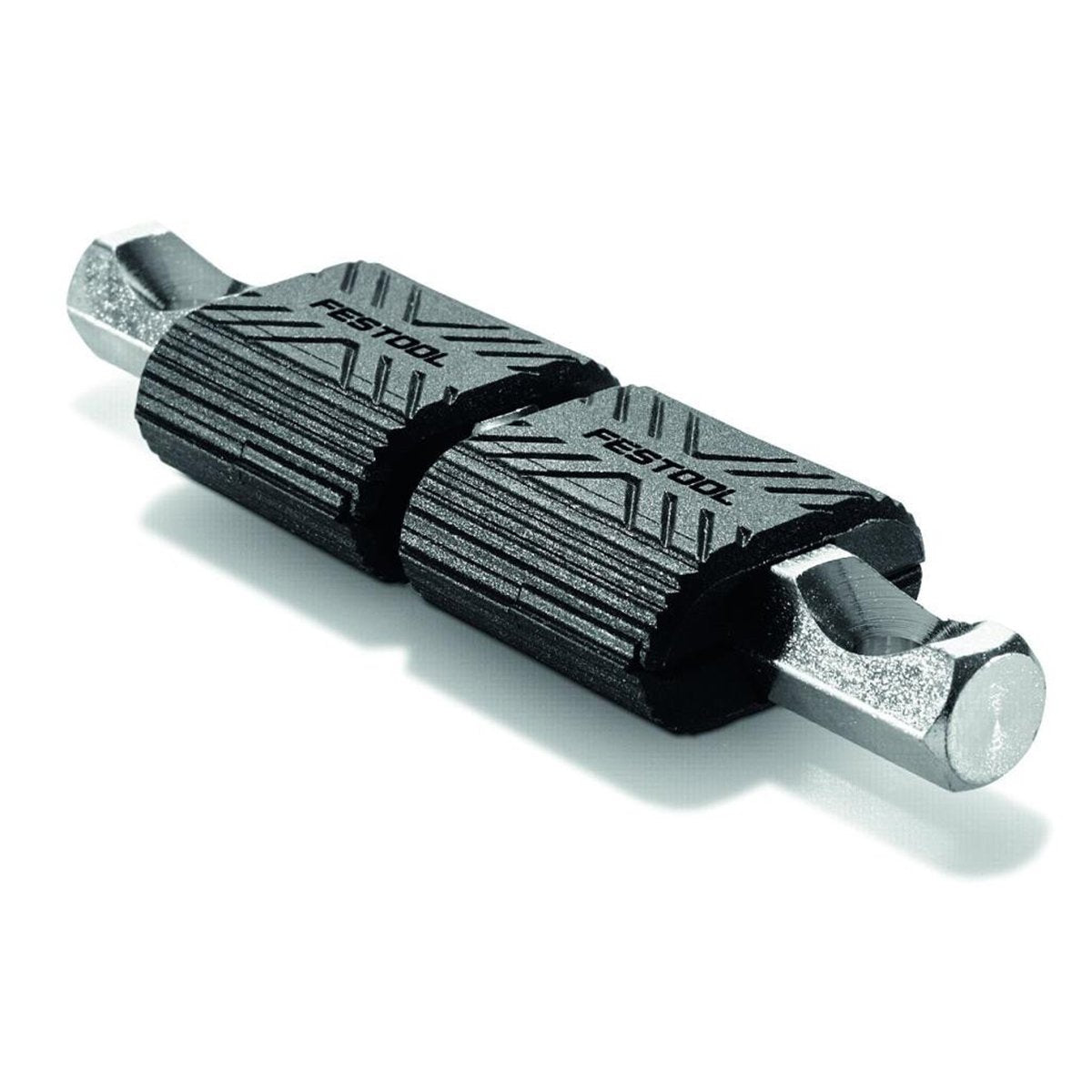

Double‑Headed Bolts with Shells (SV‑DB, 16 pcs)

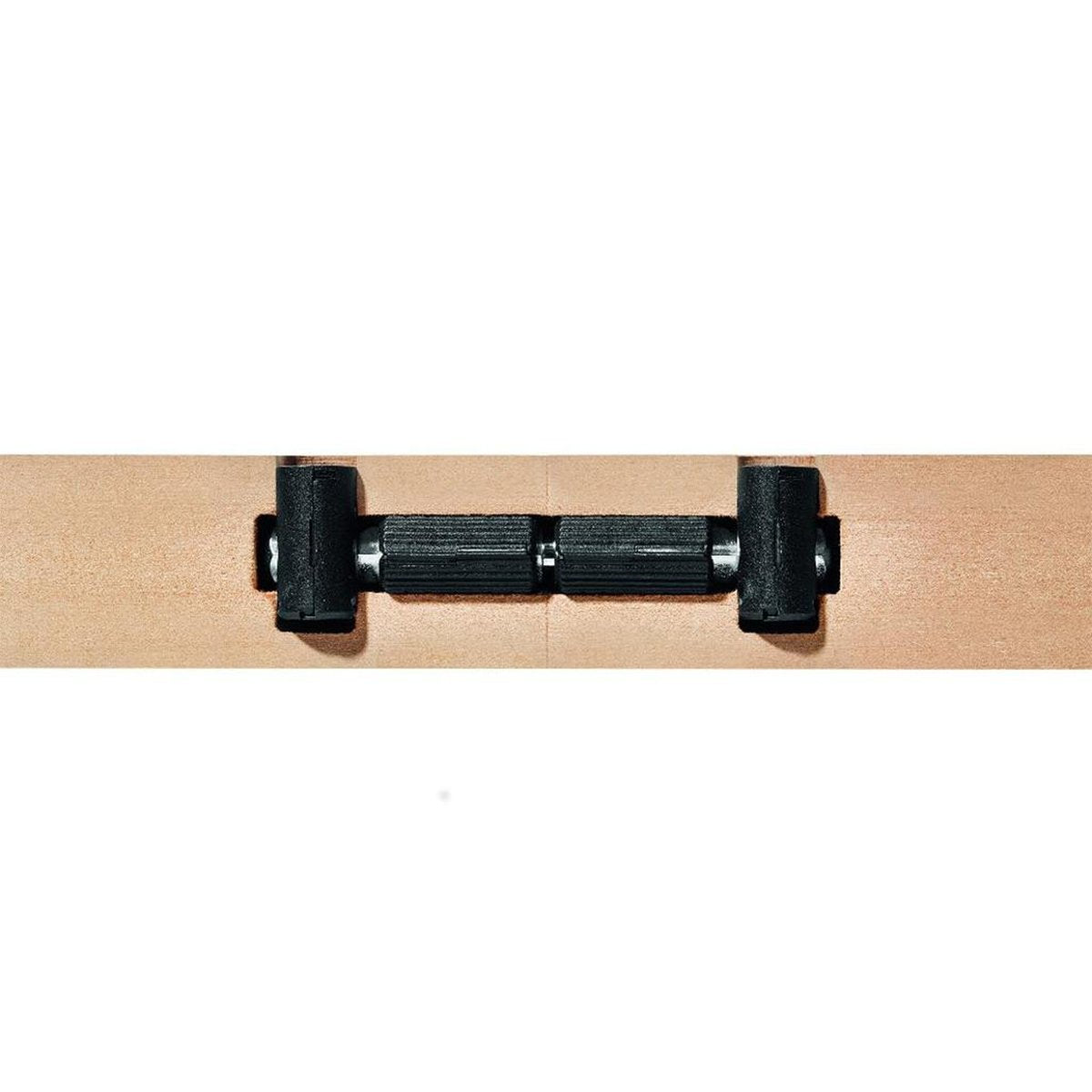

These are the central fasteners for flat panel connections. The double-headed bolts fit into the corresponding shells embedded in both panels, allowing you to pull them tightly together or disassemble as needed.

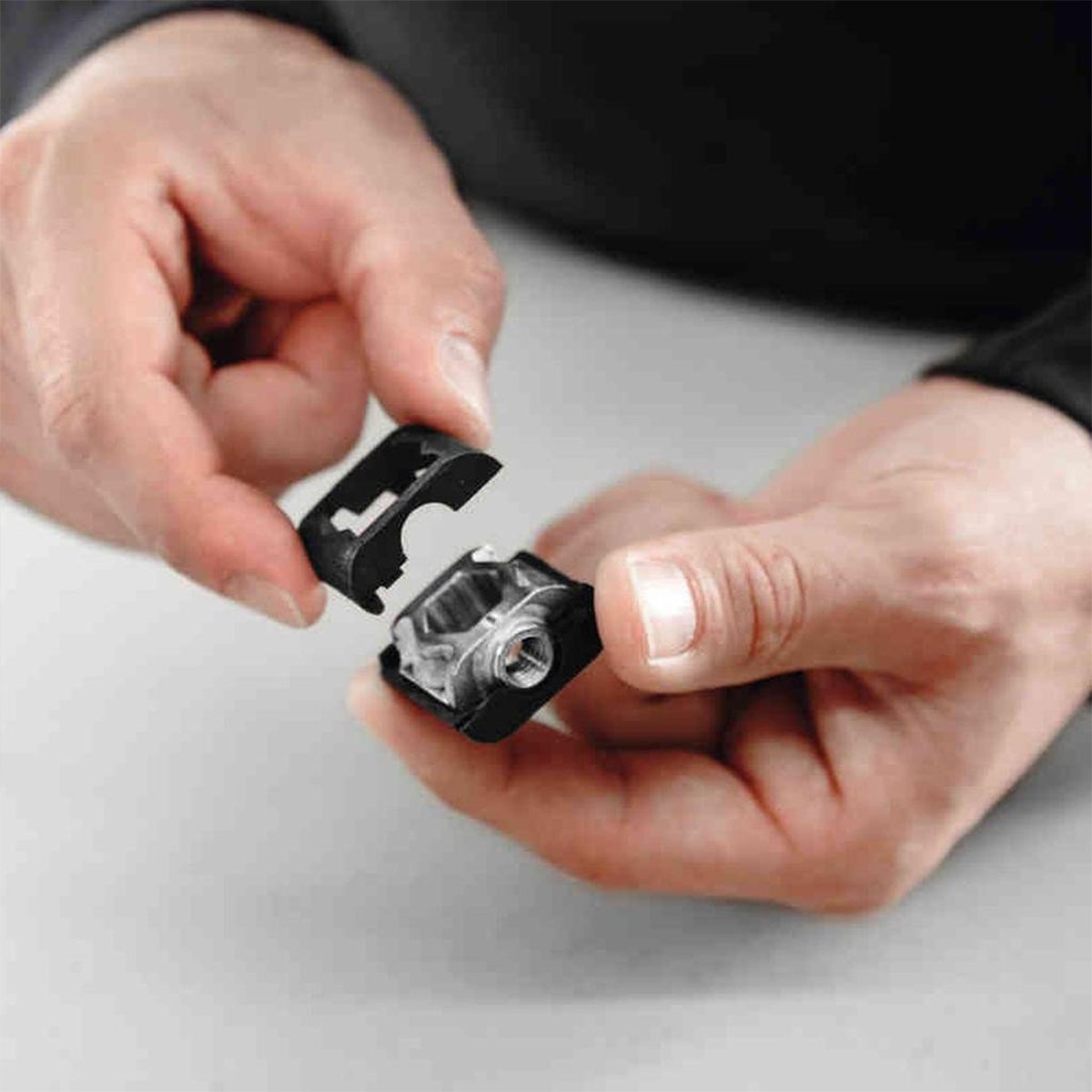

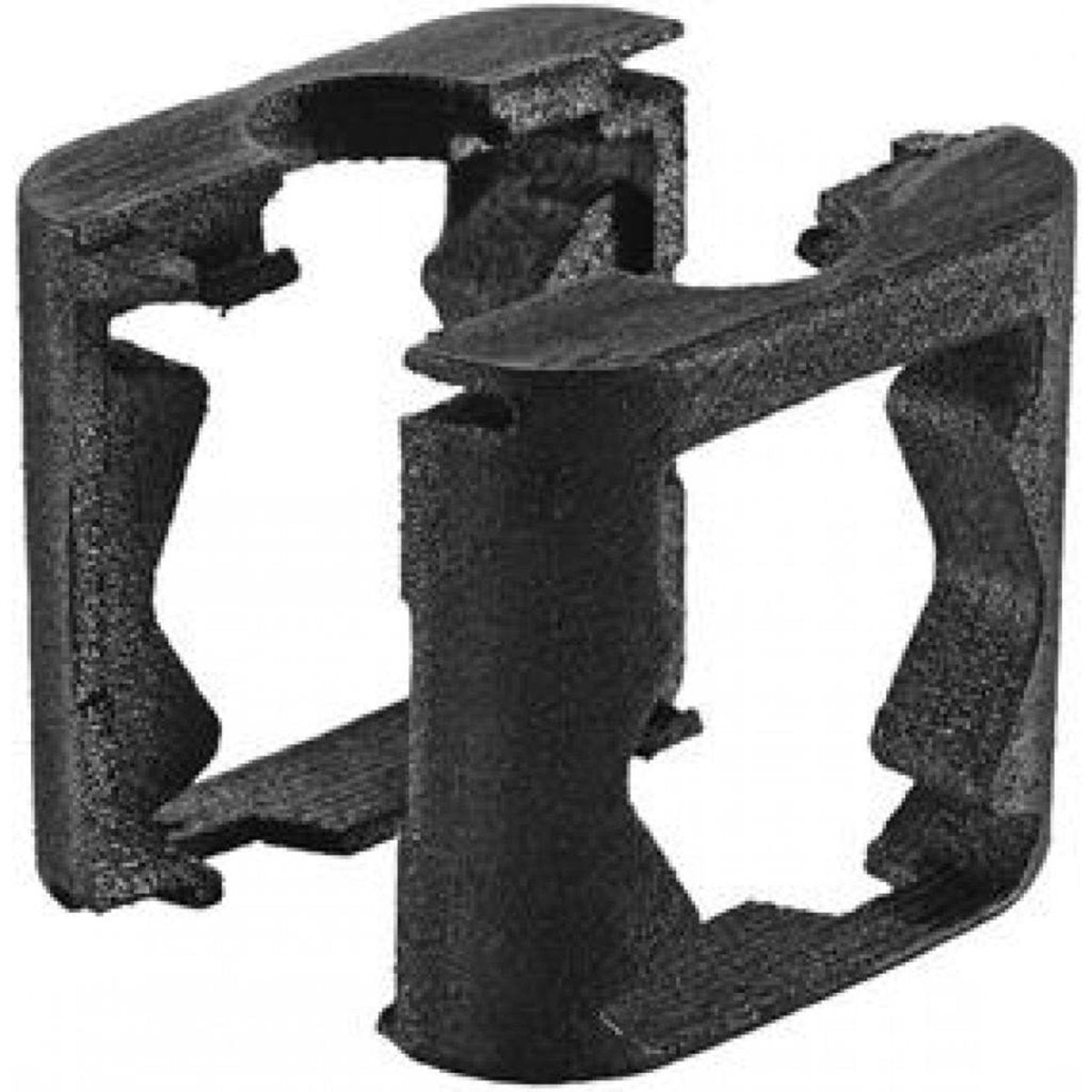

Half‑Shells (SV‑V, 32 pairs = 64 shells)
These “extension shells” are used with cross anchors (SV‑QA) to increase surface area and improve pressure distribution. They’re especially useful when working with weaker or porous materials such as MDF or particleboard—preventing the anchors from crushing the material.

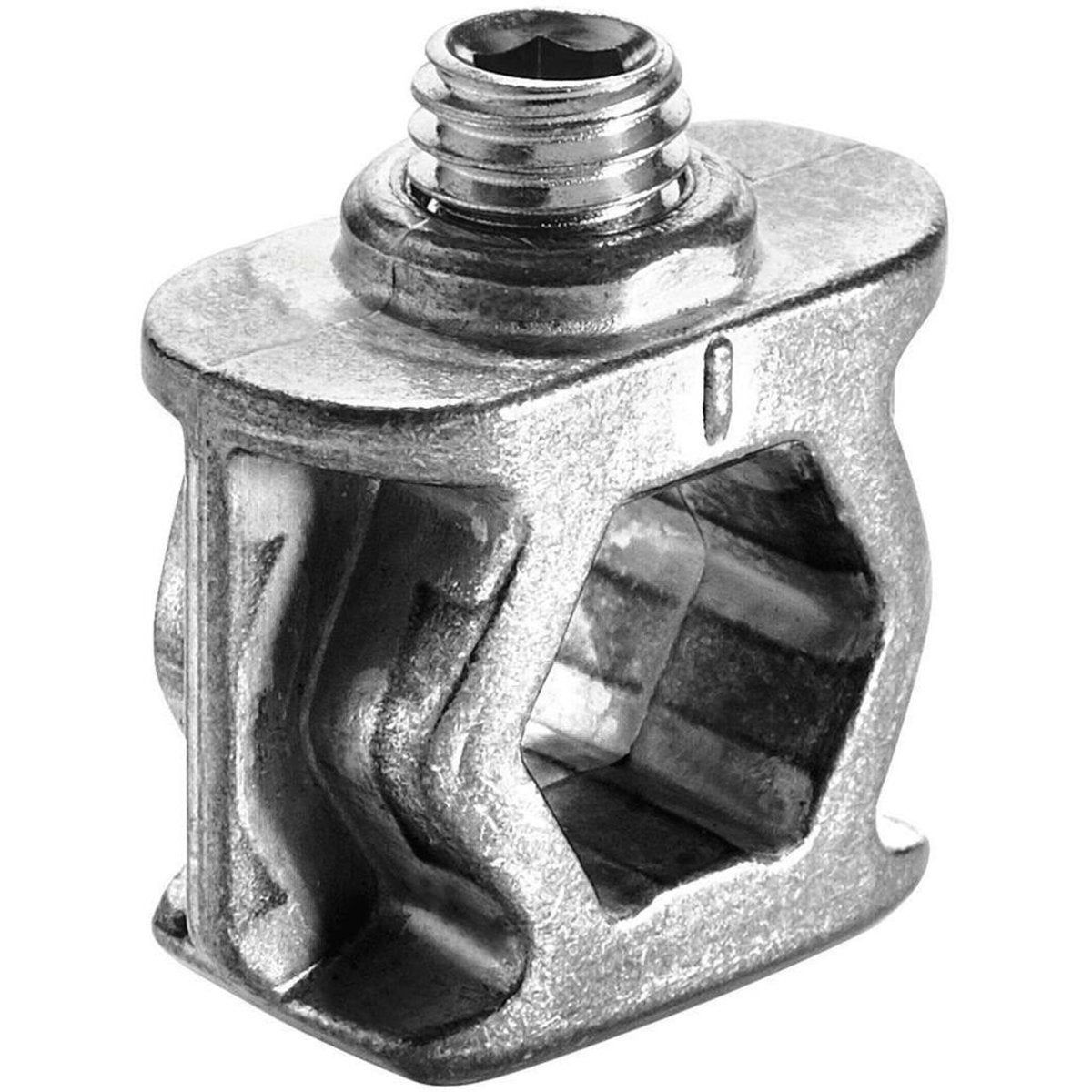

Cross Anchors with screws (SV‑QA, 32 pcs)
These are used in conjunction with anchor bolts or double‑headed bolts. They seat one end of the bolt and tighten via screw action, securing the joint.

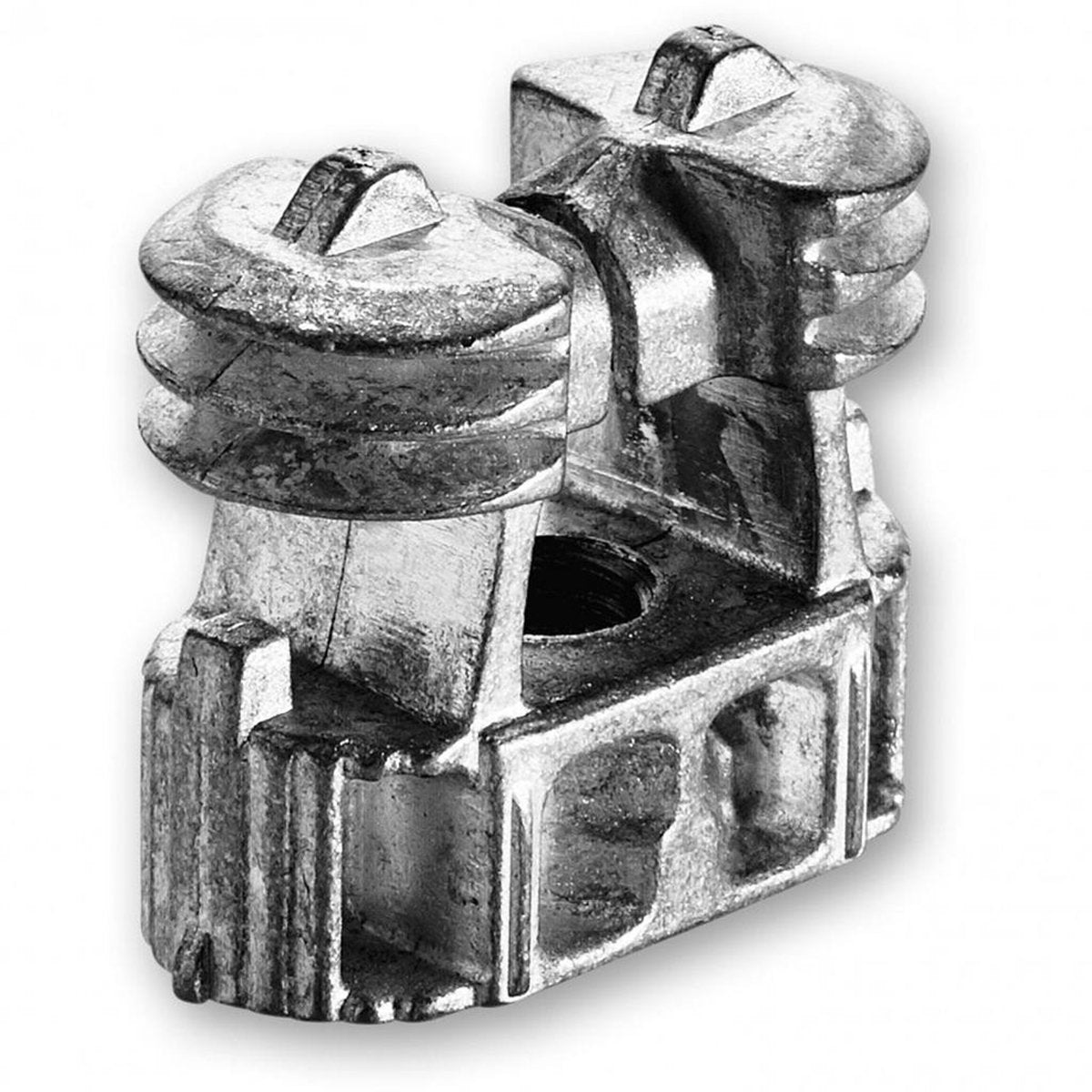

Expansion Anchors for permanent placement (SV‑SA, 32 pcs)
These provide a permanent connection option—not meant for knock‑down joints—but useful in cases where disassembly isn’t required.

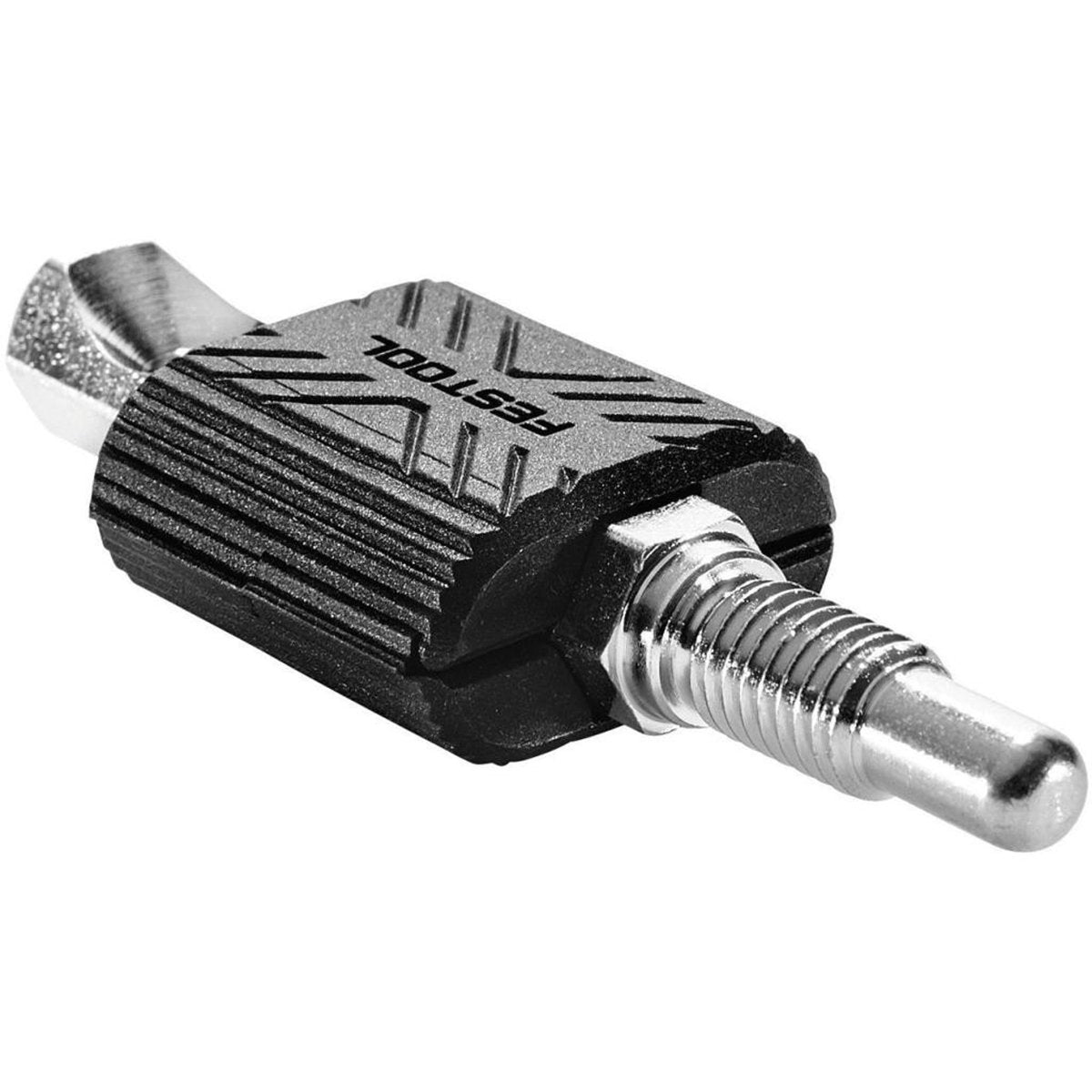

Anchor Bolts and Shells for corner connections (SV‑AB, 32 pcs)

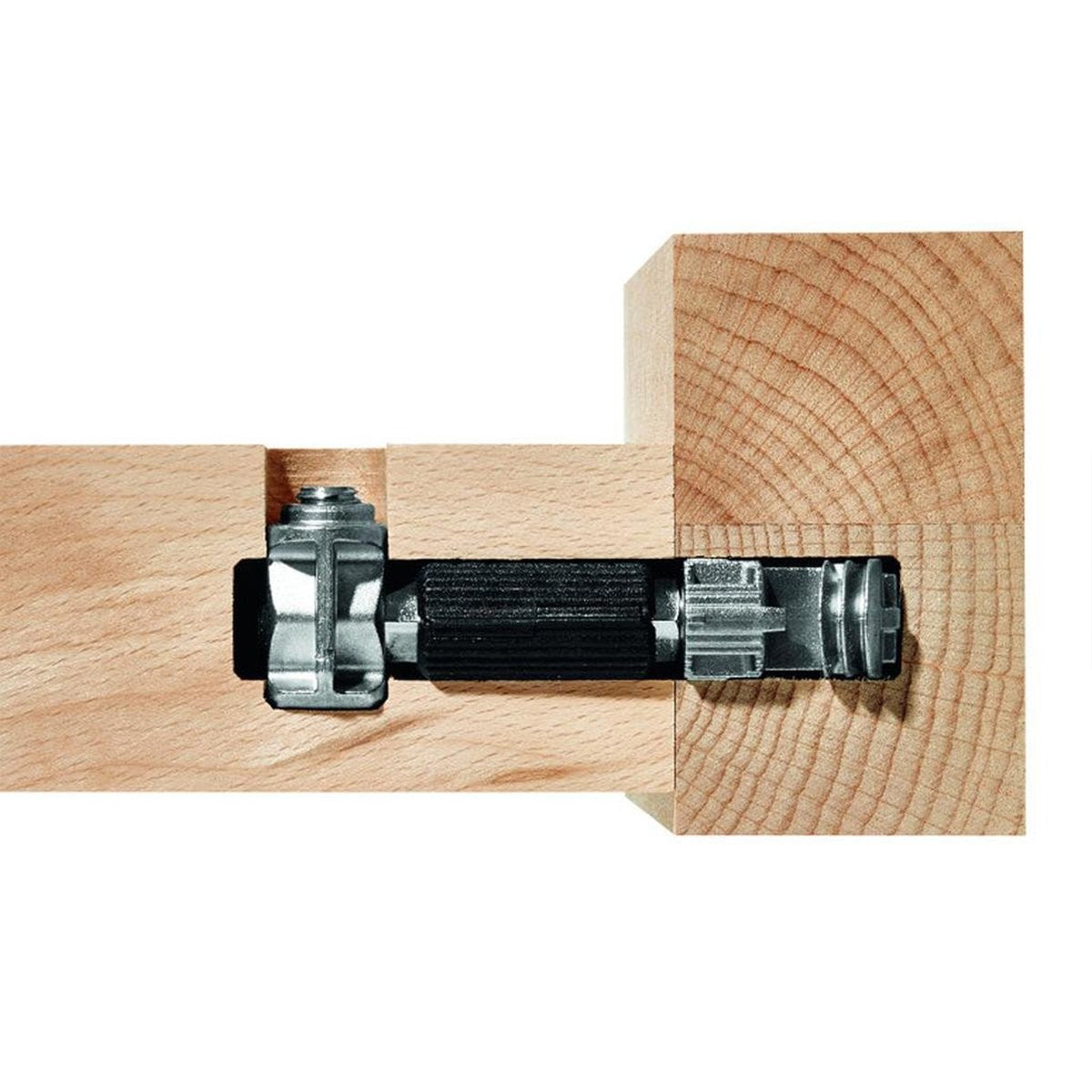

Designed specifically for corner (90°) connections, this kit includes anchor bolts and the corresponding shells that create a right-angle joint.
