Description

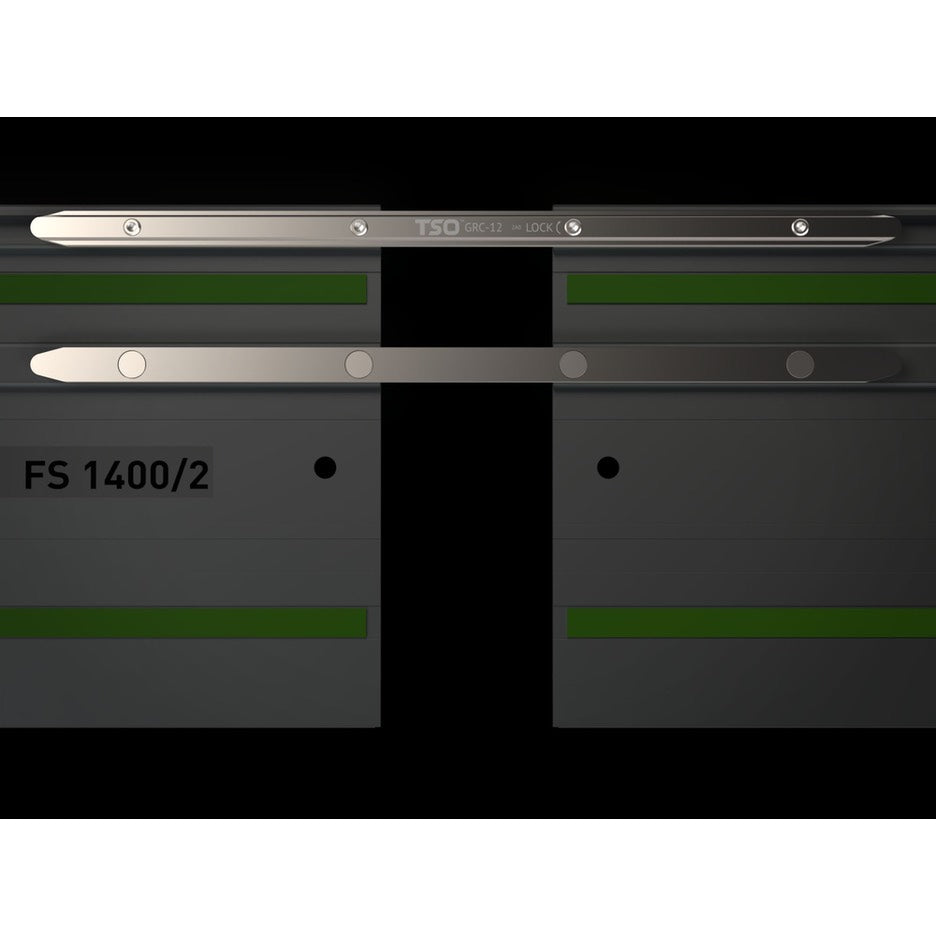

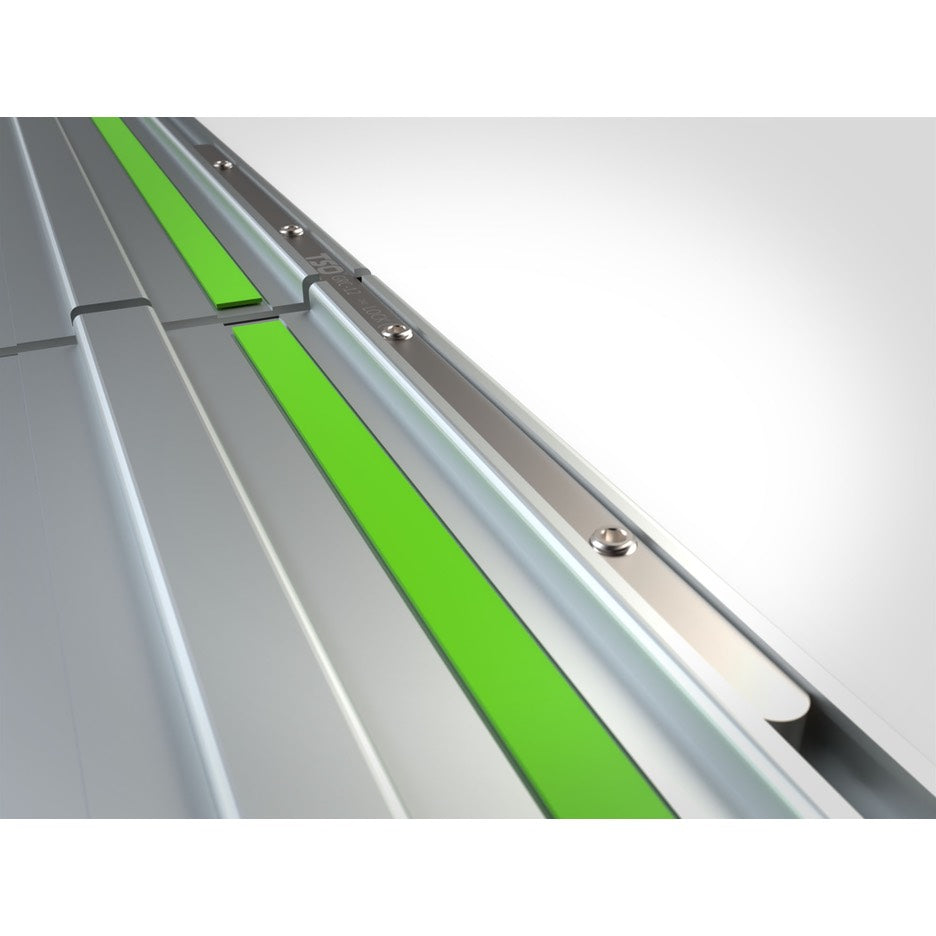

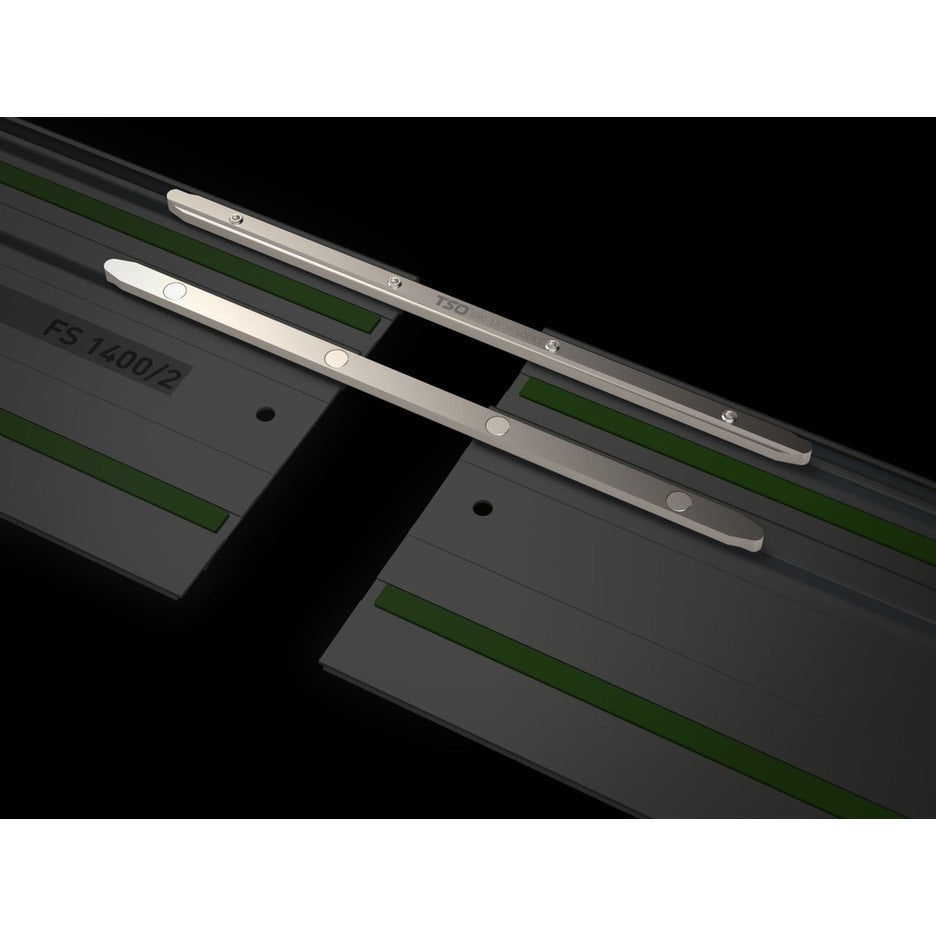

Align extruded aluminum track saw guide rails without the need for additional alignment tools such as a level or an extra guide rail - just slide them into the T-slots and firmly tighten the set screws. Ideal for anyone who connects guide rails on even a semi-regular basis.
Compatible with Festool, Makita and Triton guide rails.

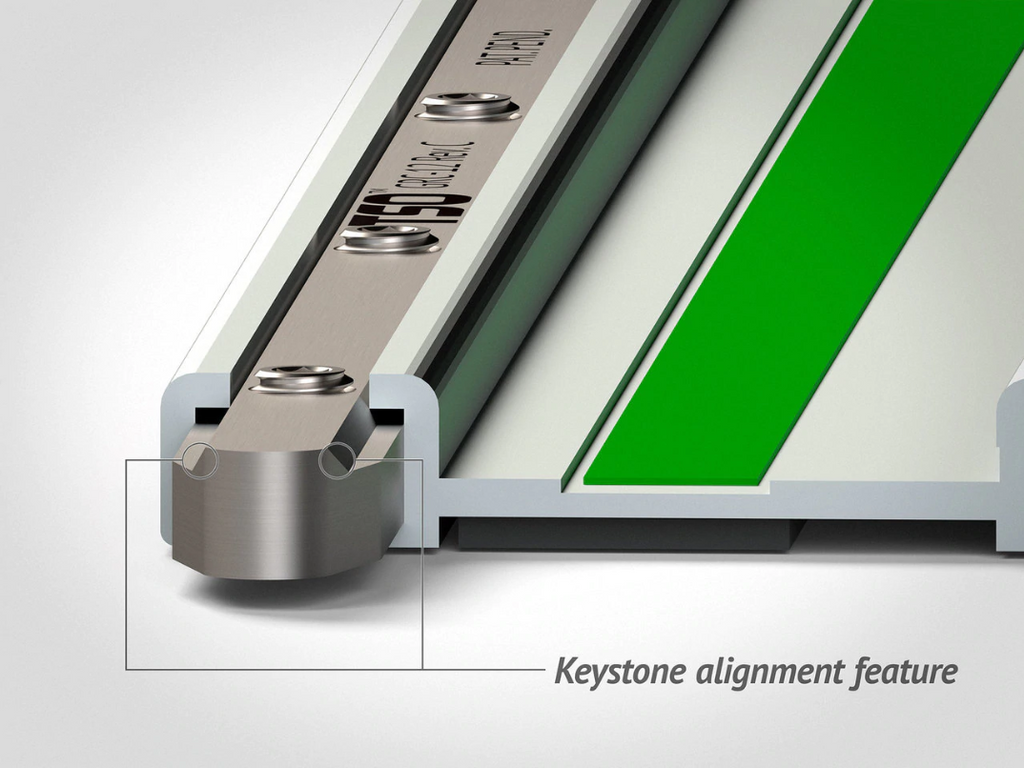

Self-aligning keystone
Fast, easy, and accurate. The modified keystone T-profile registers off of the open slot of the T-slots in the top and bottom of guide rails and as clamping pressure is applied, the connectors automatically align the rails straight and true. Save time and effort, and eliminate the need to use a long straight edge or rail for alignment.
Hex head pressure plates
The clamping pressure to align and connect guide rails is applied with four specially-designed threaded posts. The wide foot applies pressure over a greater area to avoid denting aluminum guide rails, and the hex head is easy to use and not prone to stripping or becoming damaged.
Ball-end hex screwdriver included
The slim screwdriver makes it easy to adjust the pressure screws. It is large enough to not get lost like a hex key, but not so bulky that it is hard to store. The ball end slips easily into the hex socket and permits operation at an angle for greater efficiency.
Technical details
-
12 x 0.45 x 0.25 inches (305 x 11.5 x 6.4 millimetres)
- 2 ounces (60 grams)
- 6061-T6 aluminum with CNC machined finish
- Compatible with Festool FS, Makita and Triton Guide Rails
- Not compatible with Festool FSK, Bosch or DeWalt tracks

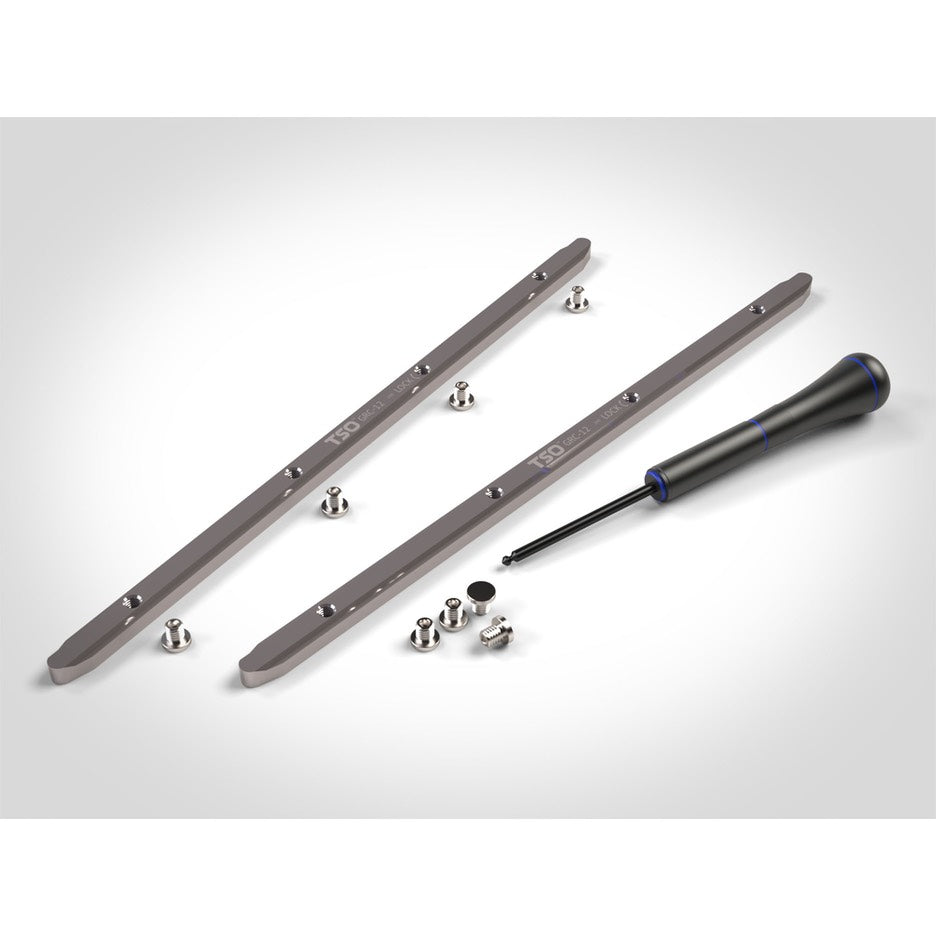

Scope of delivery
-
2x GRC-12 Guide Rail Connectors
- 8x M6 stainless steel set screws
- 3 millimetre ball-end hex screwdriver
