Description

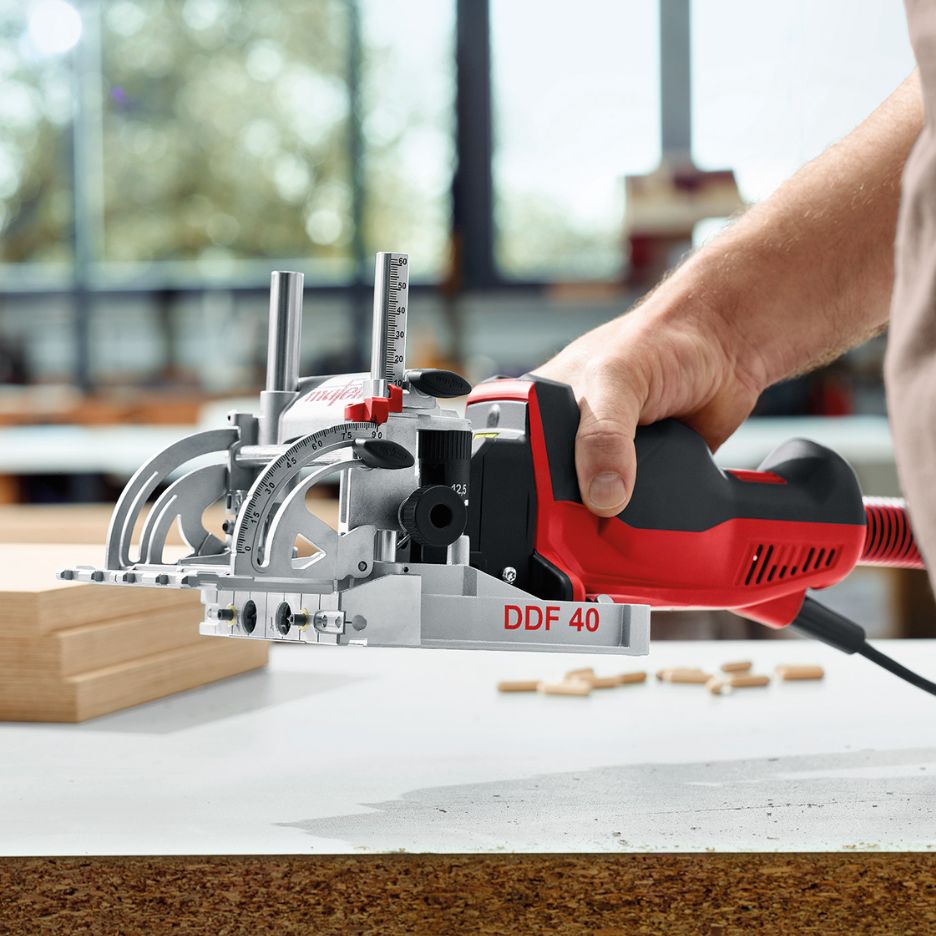

Mafell Duo Dowel Joiner allows you to drill holes quickly and accurately, two at a time on 32 millimetre centres, for dowels, hardware, and other fittings. Interchangeable drill bits allow you to bore 3, 5, 6, 8, 10, and 12 millimetre holes.
Mafell Duo Dowel Joiner is built for speed, accuracy, and repeatability

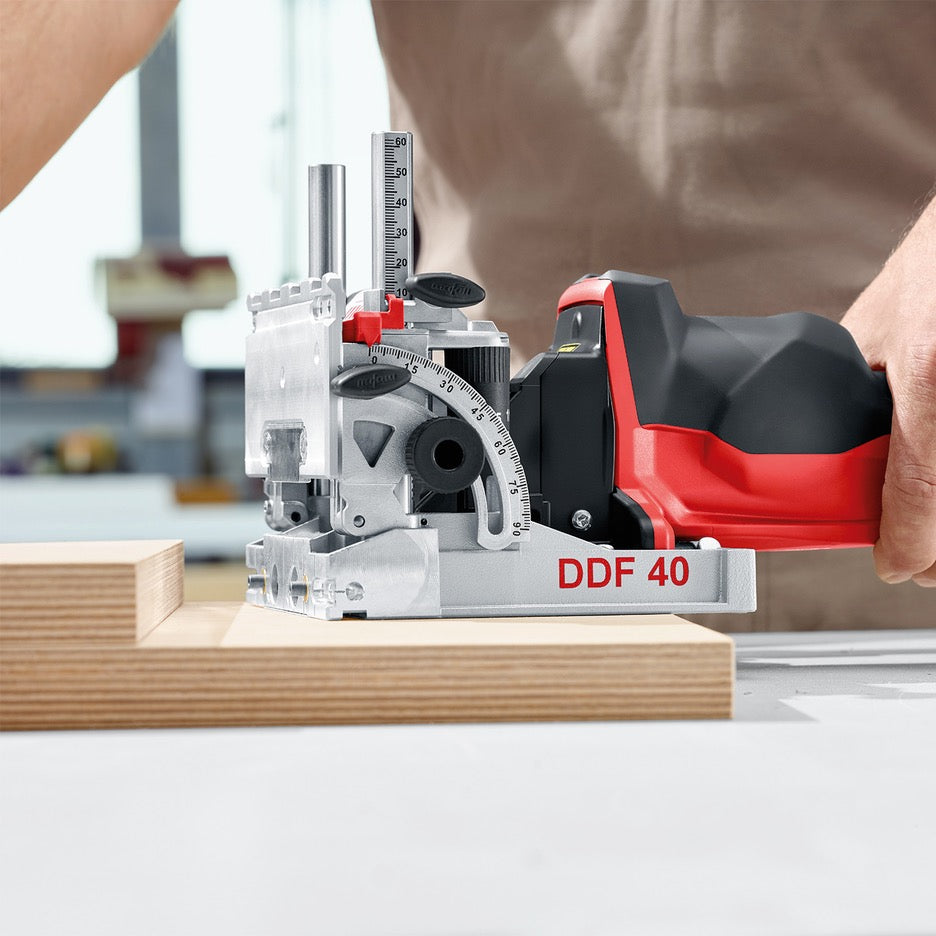

For accurate placement of holes, the fence can be adjusted and locked at any height and angle, with stops at 22.5, 45, and 675. degrees. Adjust the turret for fast and repeatable settings. The spring-loaded pins extending through the front of the tool allow holes to be accurately placed 15.5 millimetres (5/8 inch) from the edge of the workpiece for quick work without need for measuring or marking.
The 2.8 kilogram tool is compact and portable with an ergonomic grip designed for optimal comfort and control.
Mafell Duo Dowel Joiner 120V DDF 40 918623 specifications
- 0 to 40 millimetre drill depth
- 32 millimetre drill spacing
- 8 millimetre chuck
- D 3 to 12.2 millimetre cutter range
- 0 to 90 degree fence tilt
- 8,000 RPM
- 900 watts
- 2.8 kilograms
Mafell Duo Dowel Joiner 120V DDF 40 918623 scope of delivery
- Auxiliary rest ZA
- Set of additional stops ZAG
- 2x 265 x 175 millimetre anti-slip mats
- 6 millimetre carbide dowel drill
- 8 millimetre carbide dowel drill
- Side fence set SA 320
- Stop pin insert for battens LA
- 350x 6 x 30 millimetre wooden dowels
- 200x 8 x 30 millimetre wooden dowels
- T-Max Systainer
