Description

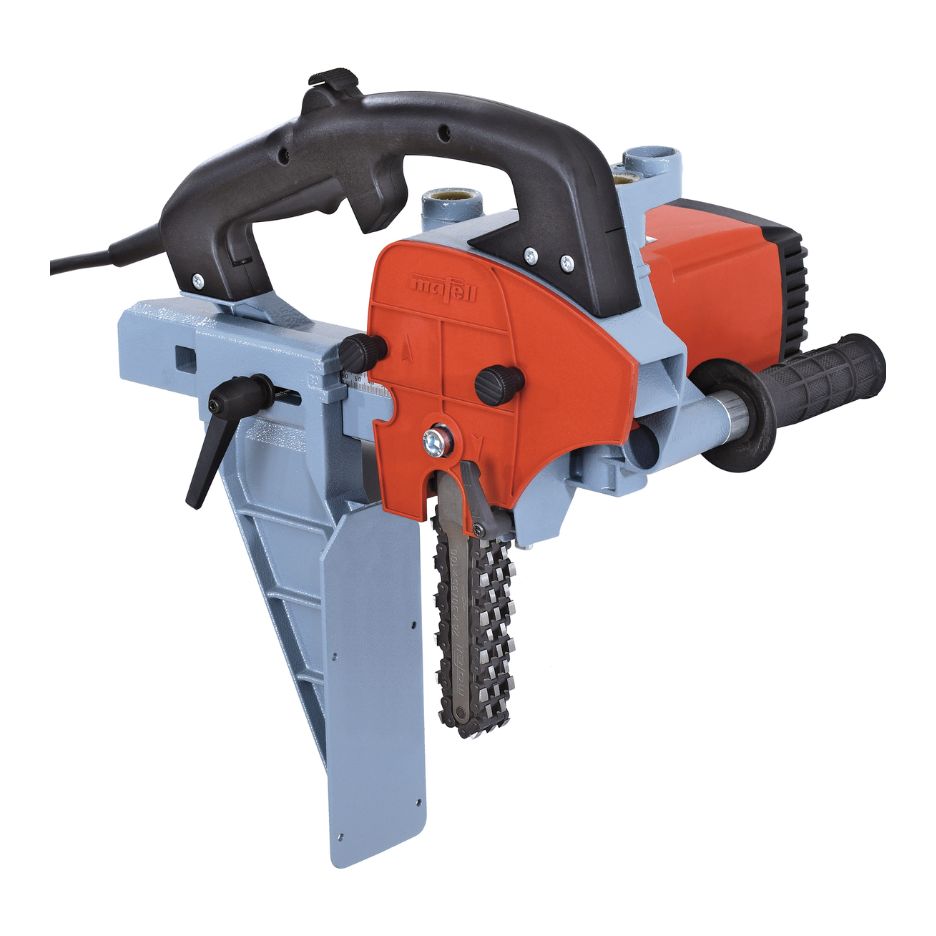

Mafell Chain Mortiser LS 103 Ec is designed to rapidly cut mortises in solid wood and glue-laminated timbers. It is lightweight and easy to carry and position, and the ergonomic handle and switch position make working safe and comfortable while reducing strain.
Interchangeable slot mortising attachments allow mortising up to 500 millimetres (19-11/16 inches), which is larger than any other machine available. Further, the long guide plate has a large adjustment range and is usable on large timbers.
Exchanging the chain on the LS 103 Ec is fast and easy thanks to the tensioning system. The chain can be retensioned without removing the chain guard, saving time.
Mafell Chain Mortiser LS 103 Ec 9242** specifications
- 100/150 millimetre mortising depth
- 4,050 nominal no-load speed
- 2,500 watts nominal input
- 8.7 kilograms
- 120 or 240 volts
Mafell Chain Mortiser LS 103 Ec 9242** scope of delivery
- Stop plate
- 4 millimetre hex key
- 8 millimetre hex key
- Does not include chain set
