Description

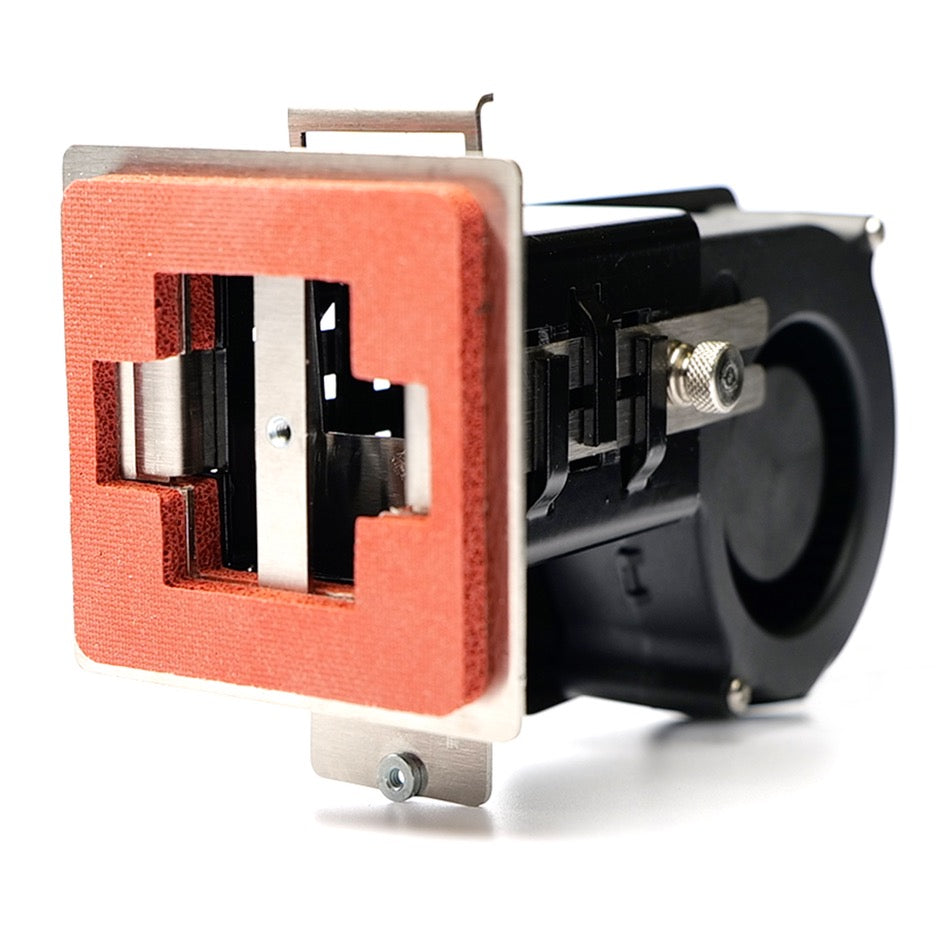

FireBoard Drive Nozzle Adapter allows easy installation of the FireBoard Drive Blower on kettle style grills and smokers.

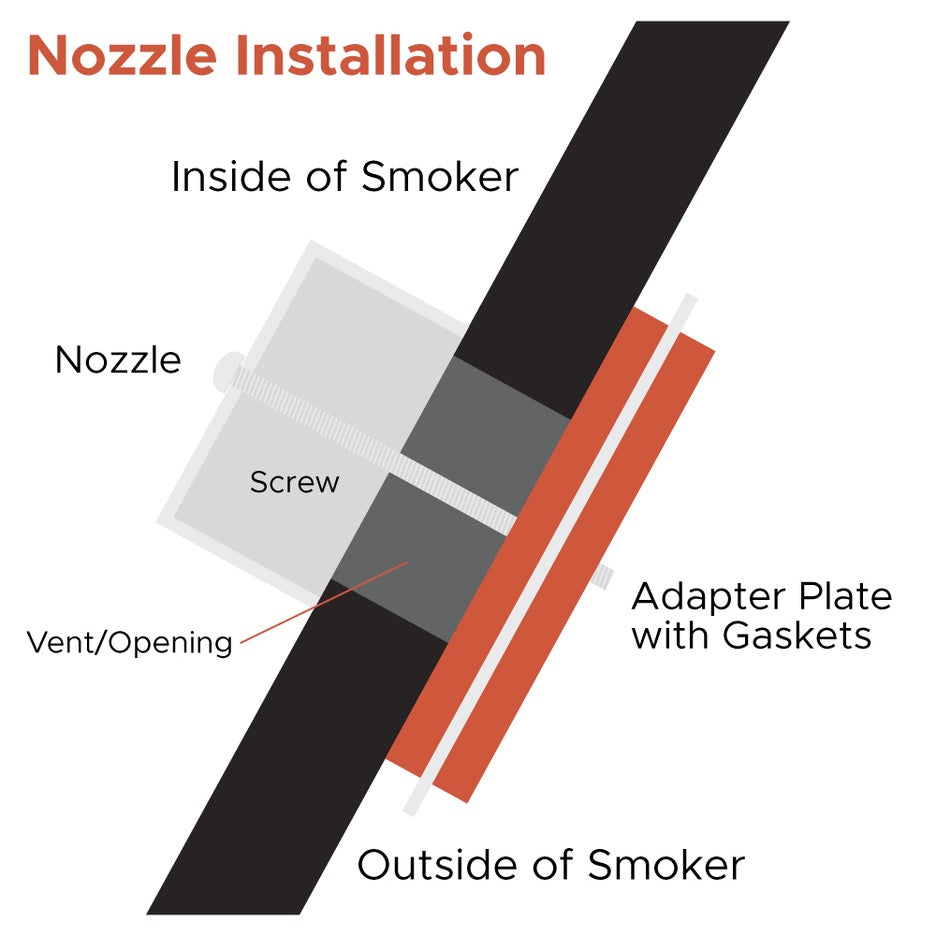

The square nozzle rotates so airflow can be directed in any direction perpendicular to the fan, which is especially useful when a custom hole is drilled in the side of the grill to install the fan to control fire.
Includes a gasket insert to seal the vent when not in use.

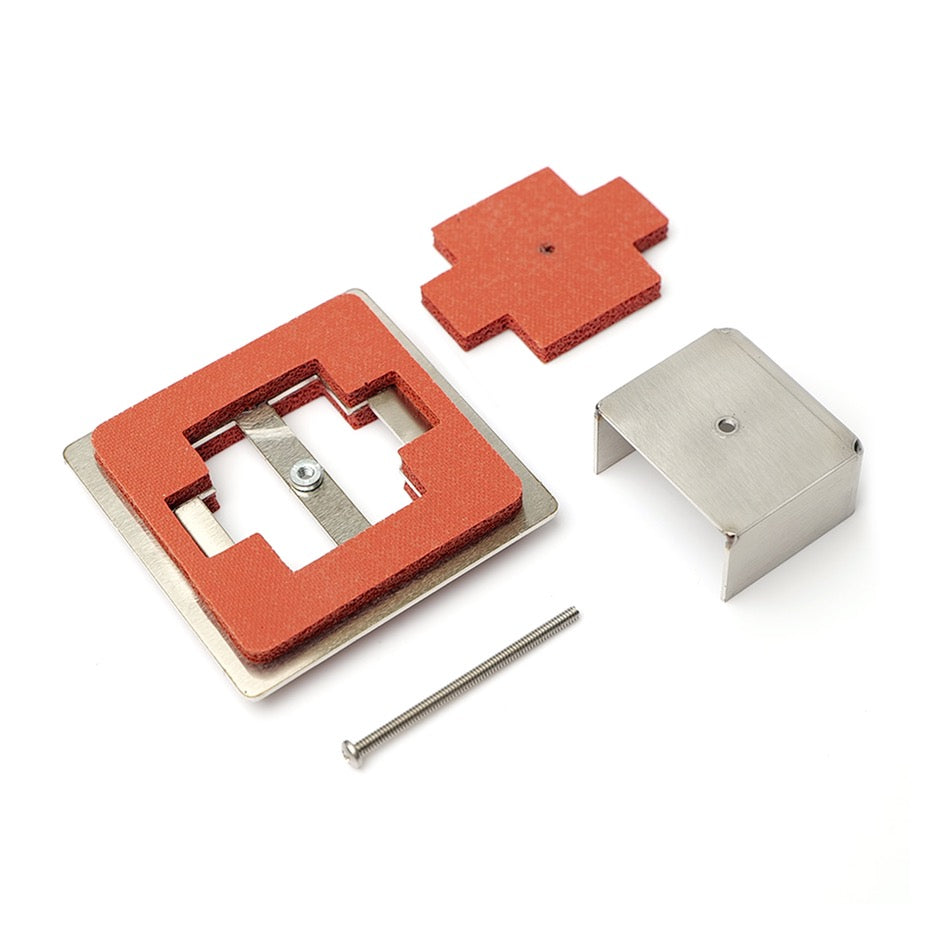

FireBoard Drive Nozzle Adapter FBBL-NZ1 scope of delivery
- Square nozzle
- Adapter face with built-in gaskets and insert
- Screw for installation
FireBoard Drive Nozzle Adapter FBBL-NZ1 specifications
- Outer Adapter Plate with Gasket Dimensions: 2.75” x 2.75” (69.85mm x 69.85mm)
- Dimensions of the opening of the Adapter Plate with Gasket: 1.6” x 1.2” (40.64mm x 30.48mm)
- Nozzle Opening Dimensions: 1.43” x 0.78” (36.32mm x 19.81mm)
- Silicone Gasket Temperature Range: -100F to 500F
