Description
Order deadline is Friday April 28, 2023 at noon. You must pre-order to get these items. Delivery is scheduled for June 2023.

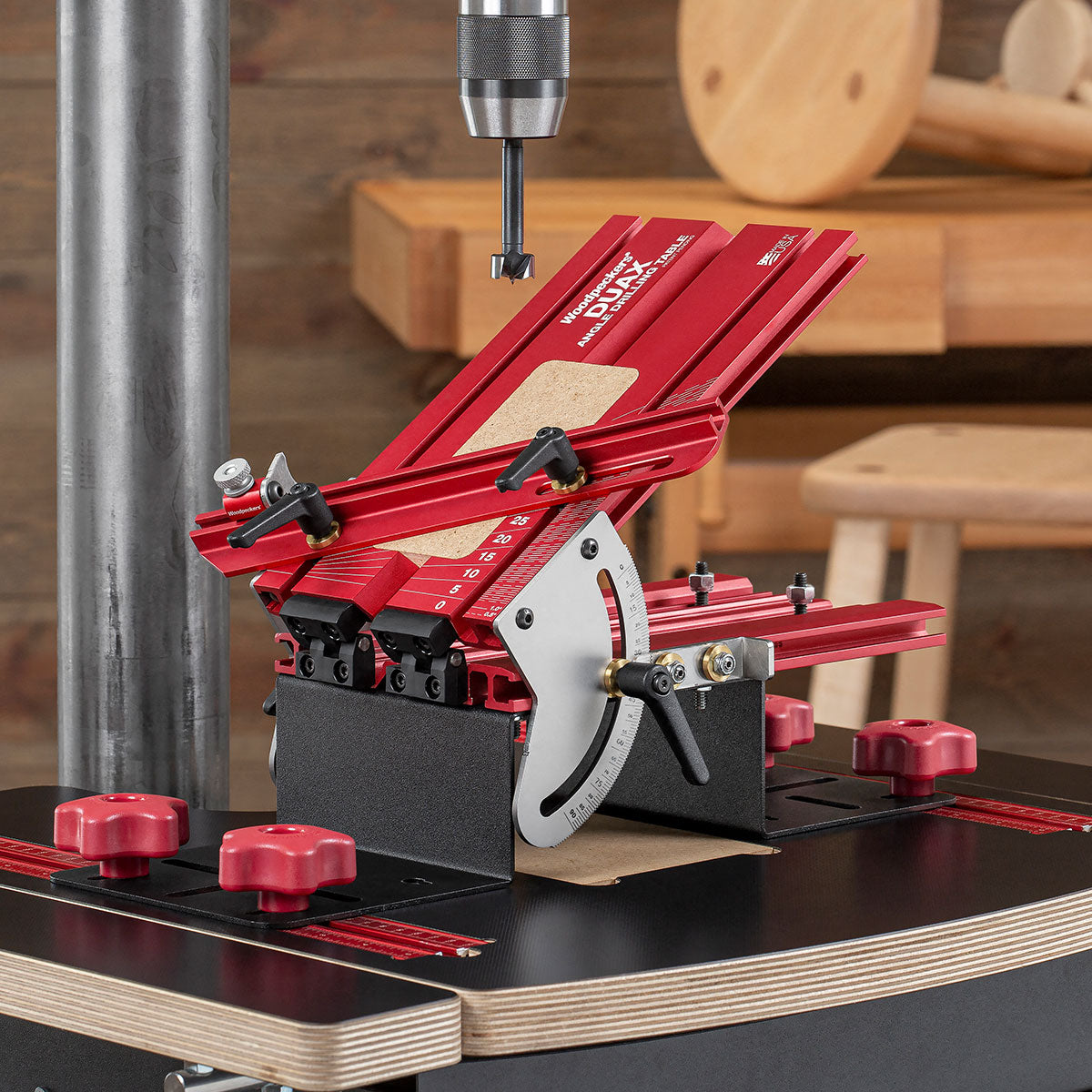

Woodpeckers Duax Angle Drilling Table allows you accurately drill angled holes at the drill press without having to adjust the tilt of the machine's main table. The table can be tilted all the way to 90 degrees for drilling into the end of long material.

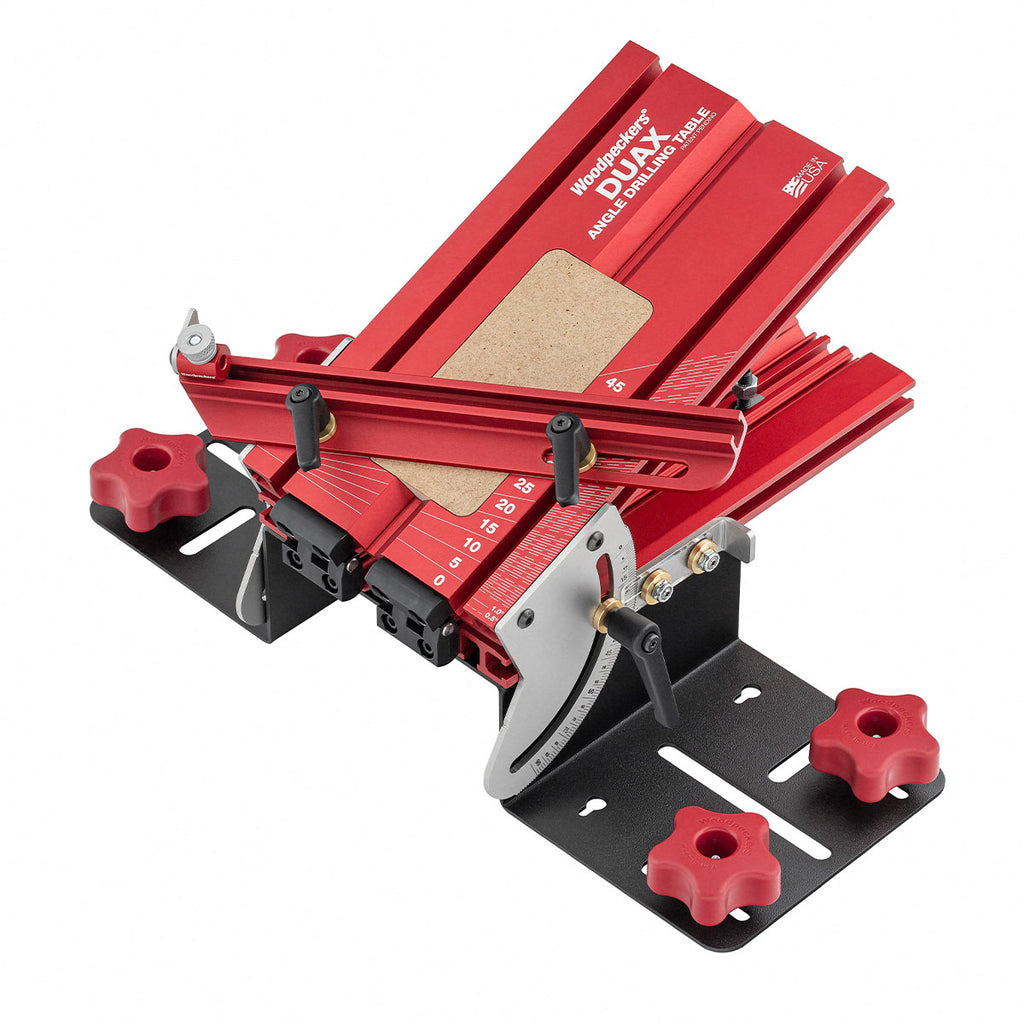

Woodpeckers Duax Angle Drilling Table consists of a base and tilting table

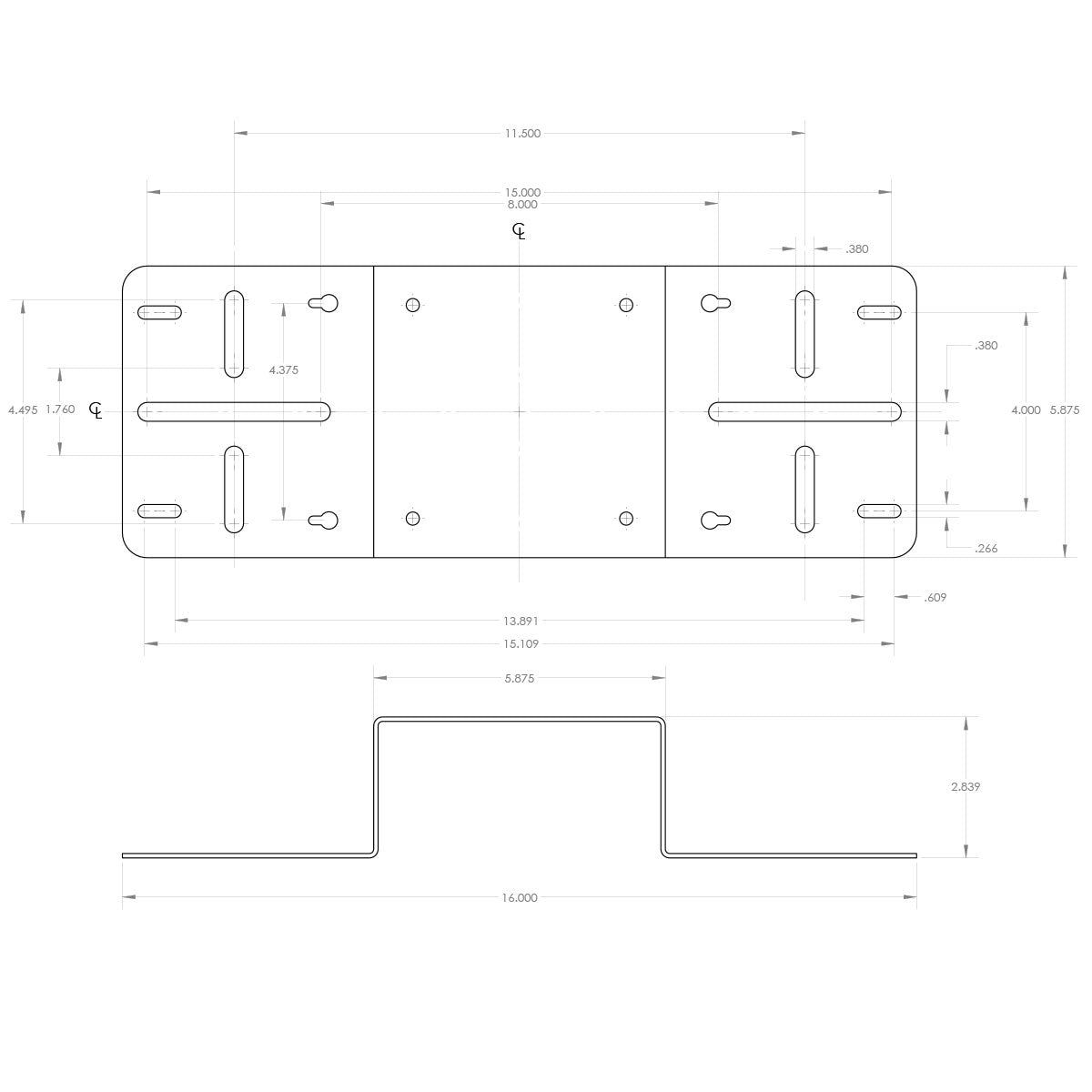

To install the Duax Angle Drilling Table, first mount the steel base to your drill press table. It is optimized for attachment to a Woodpeckers Drill Press Tables and fits most machines 12 inches or larger. Next, mount the top tilting section in any of the four directions, based on the size and shape of your workpiece, and the direction of angle required.

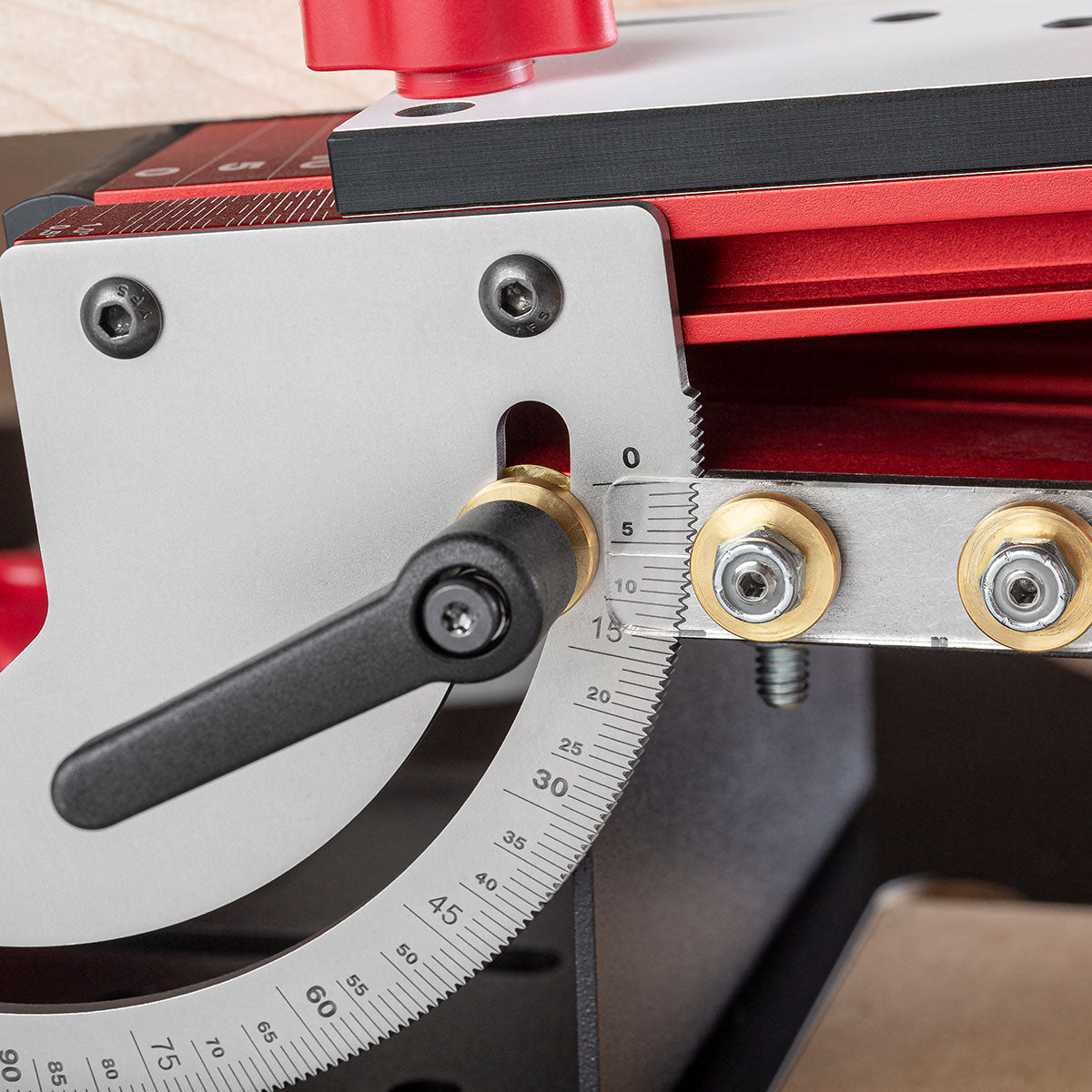

Twin quadrants with teeth allow the Duax Angle Drilling Table to tilt
Loosen the two locking knobs and tilt the table to the desired angle, referencing the degrees marked right on the table. A toothed stop accurately positions the table at any whole degree increment, if desired.
The Duax's adjustable fence provides repeatable positioning

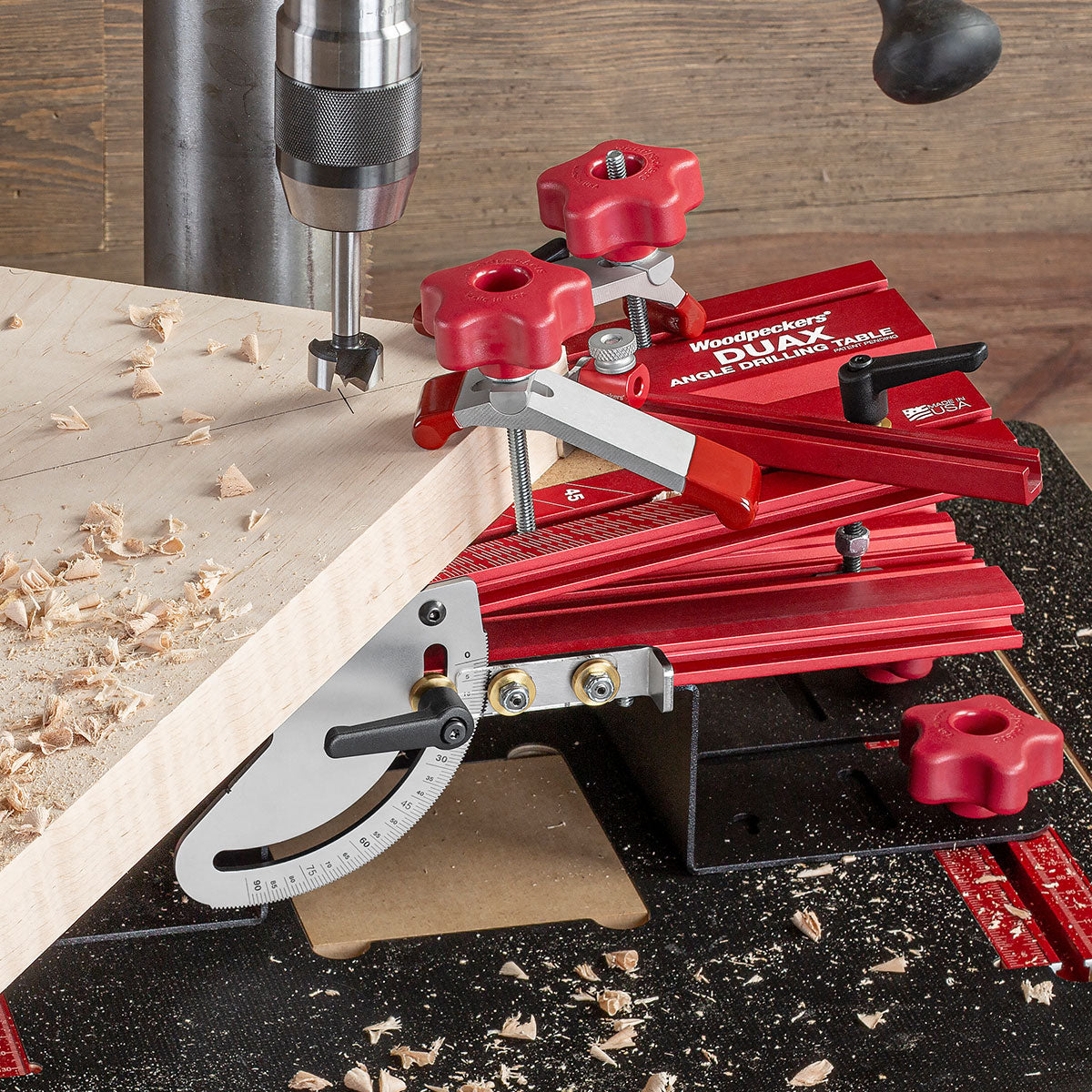

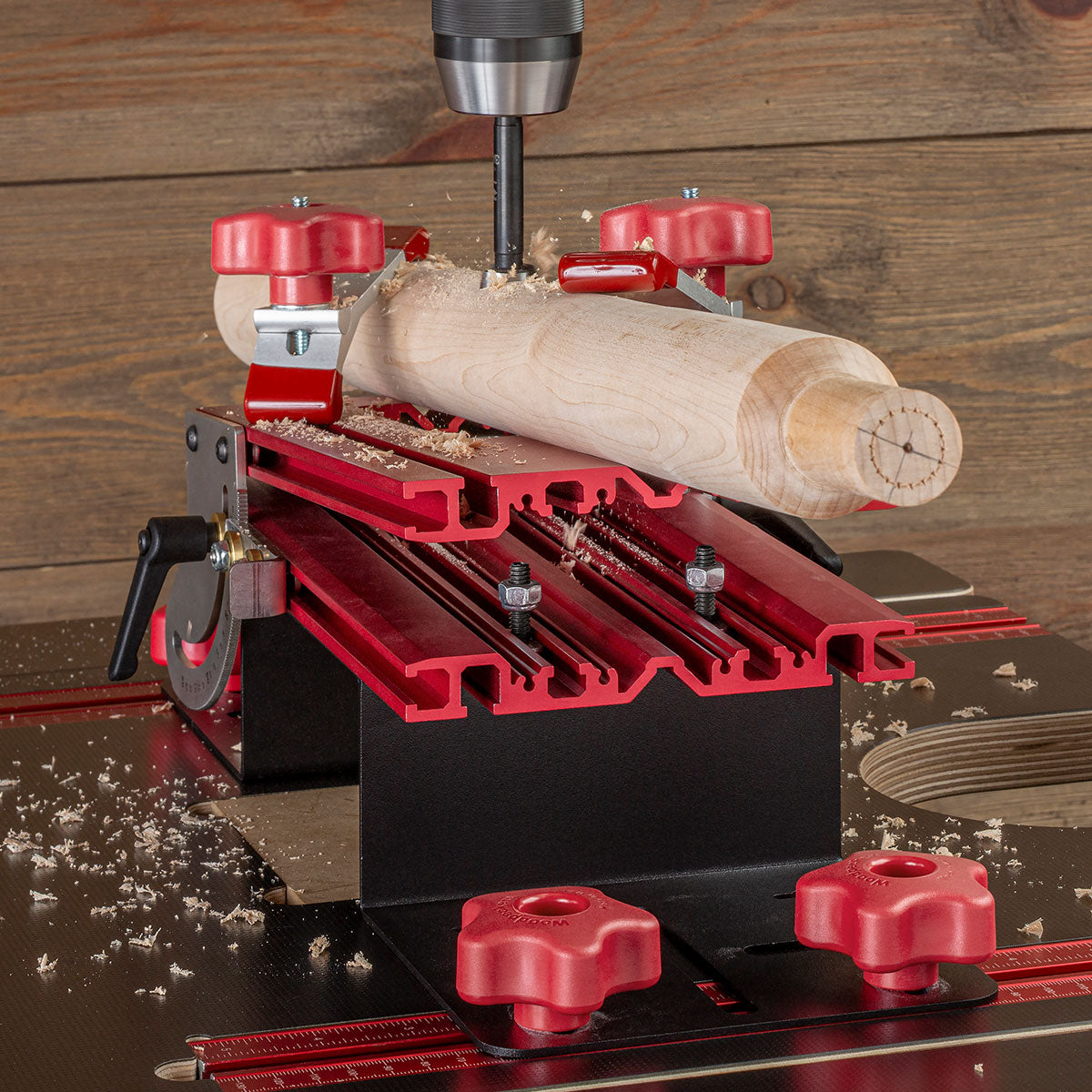

Once the table angle is set, you can lock the fence or button stops wherever you need - square, at an angle or parallel. Take advantage of the T-slots in the table to use the accessory wedge or pivot clamps to secure your workpiece to the table for accurate drilling.
Woodpeckers Duax Angle Drilling Table only scope of delivery
- Duax Angle Drilling Table
- Fence
- Flip Stop
Woodpeckers Duax Angle Drilling Table Deluxe Kit scope of delivery
- Duax Angle Drilling Table
- Fence
- Flip Stop
- 2x Pivot clamps
- Wedge clamping system
- 2x Button stops

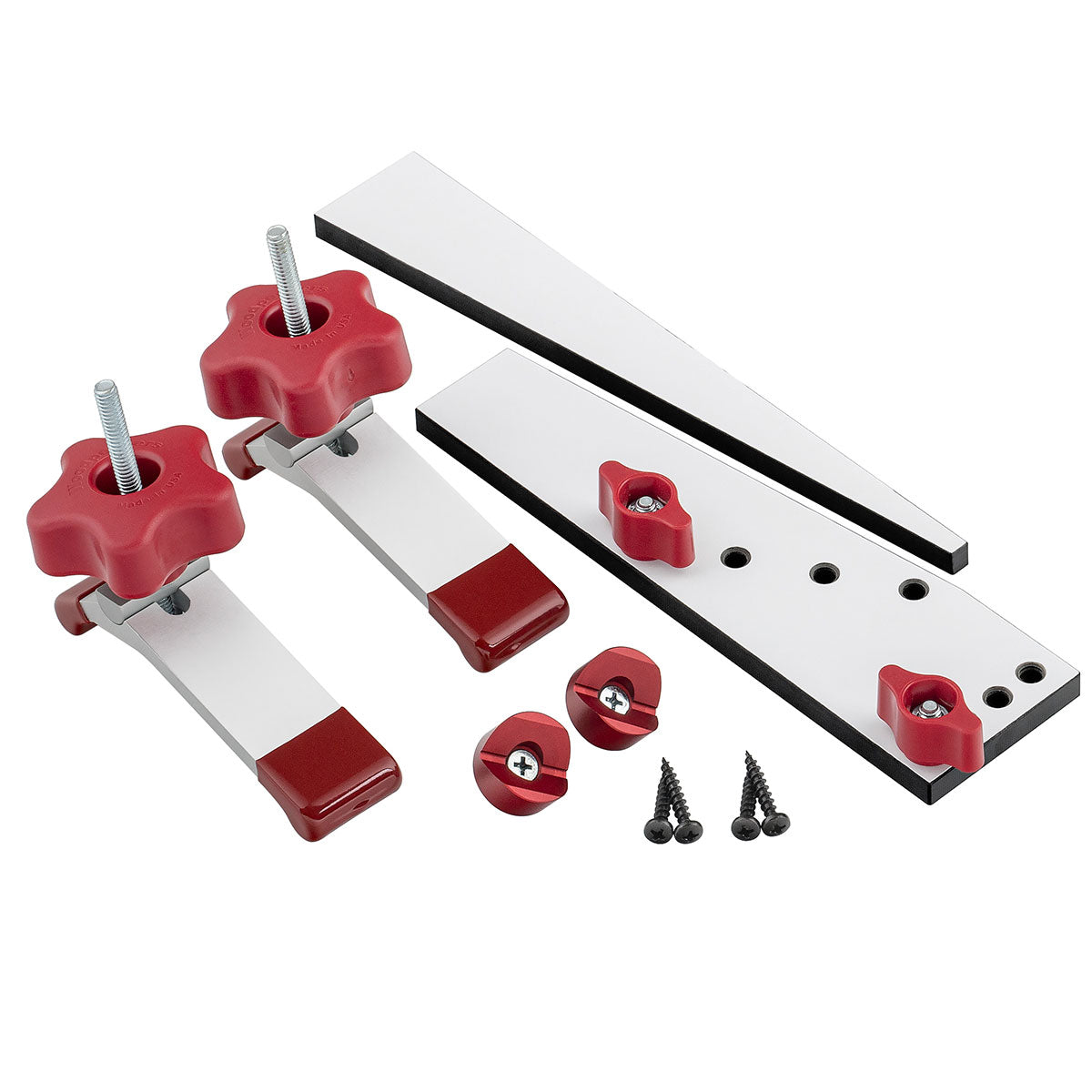

Woodpeckers Duax Clamping Kit scope of delivery
- 2x Pivot clamps
- Wedge clamping system
- 2x Button stops
